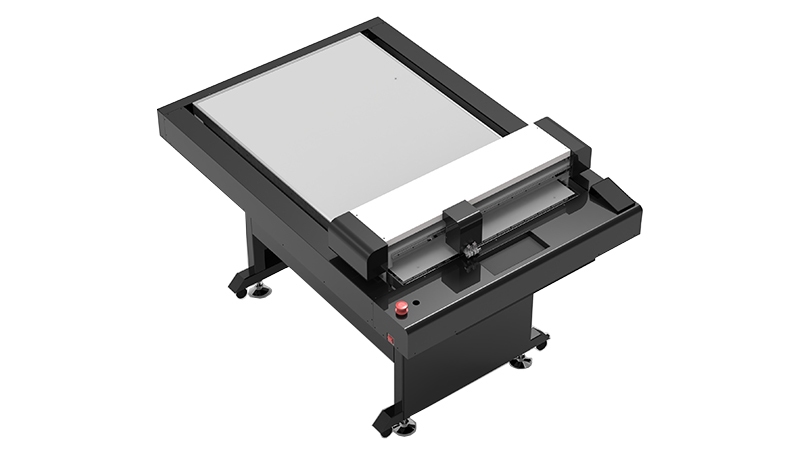

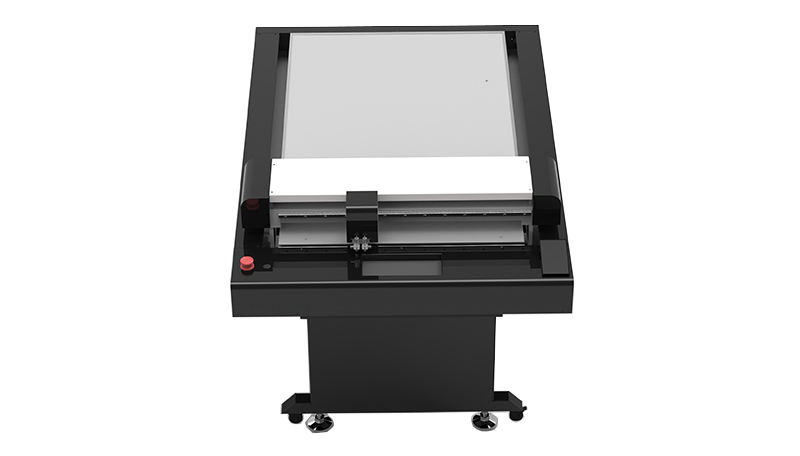

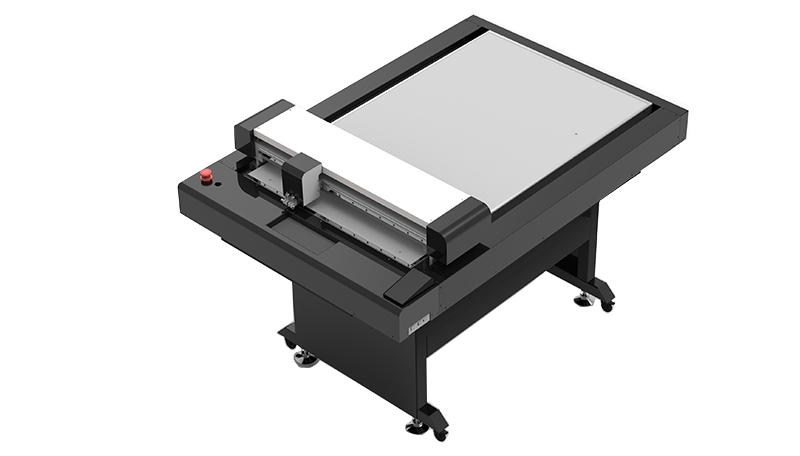

Model No. |
P6090DC |
|
Cutting area |
600mm*900mm |
|
Cutting speed |
1mm/s ~800mm /s |
|
Cutting thickness |
0.2-0.8mm |
|
Cutting pressure |
1000g |
|
Cutting material |
Can cut PET, PVC, cardboard, self-adhesive film, fiber composites, and other materials |
|

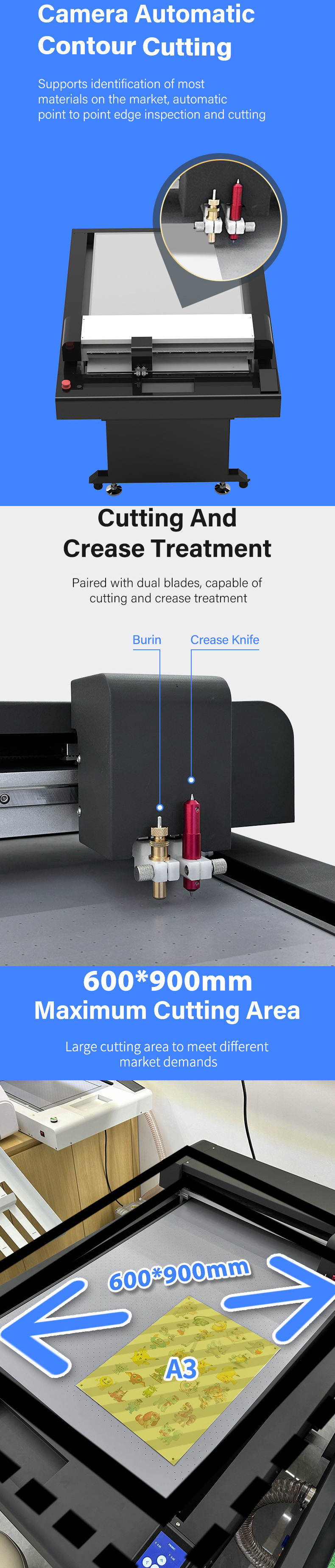

Blade |
Dual blade,cutting & creasing |
|

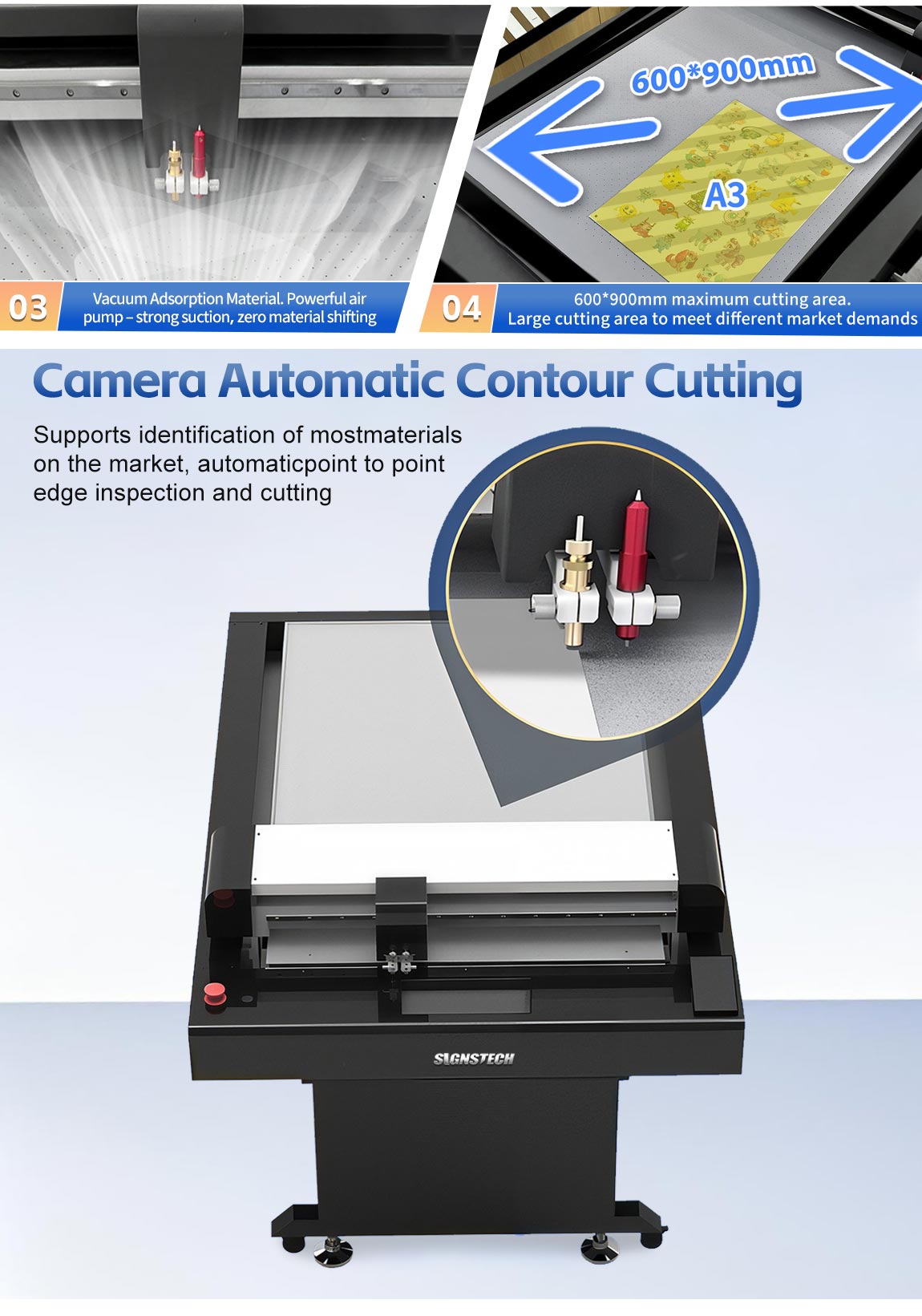

Scan mark way |
Camera scan position system |
|

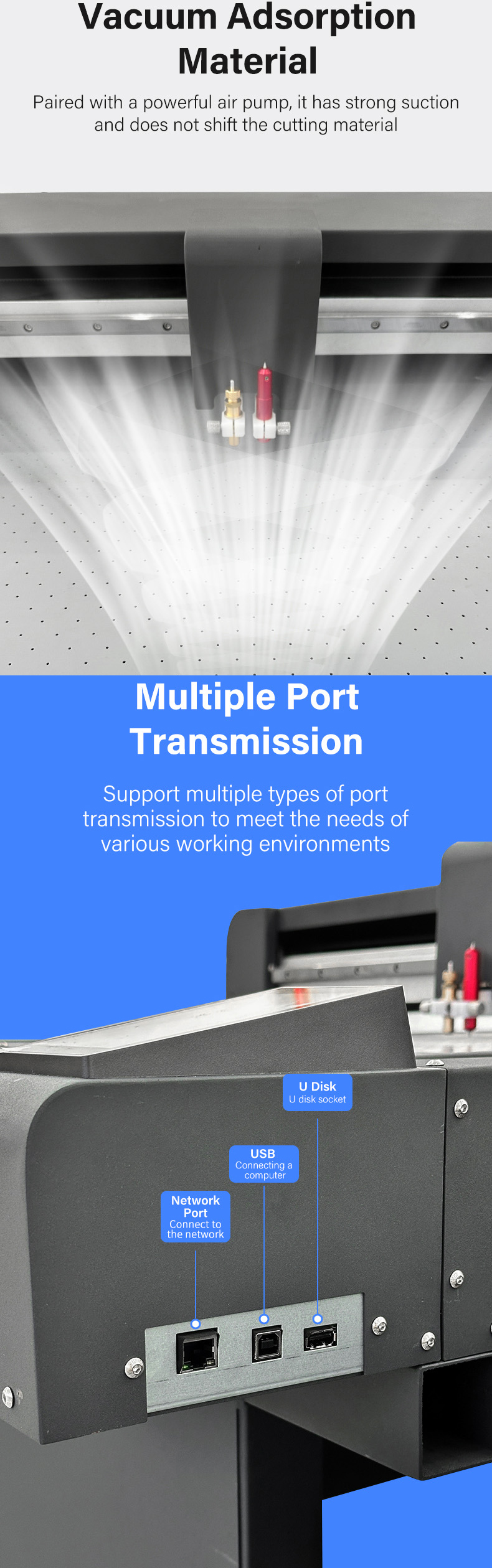

Material fixing way |
1.1KW Vacuum adsorption |
|
Operation Method |
Flatbed |
|
Driver |
Stepper motor |
|
Cutting precision |
±0.1mm |
|
Repeatable Precision |
≦0.05mm |
|
Cutting circle diameter |
2mm |
|

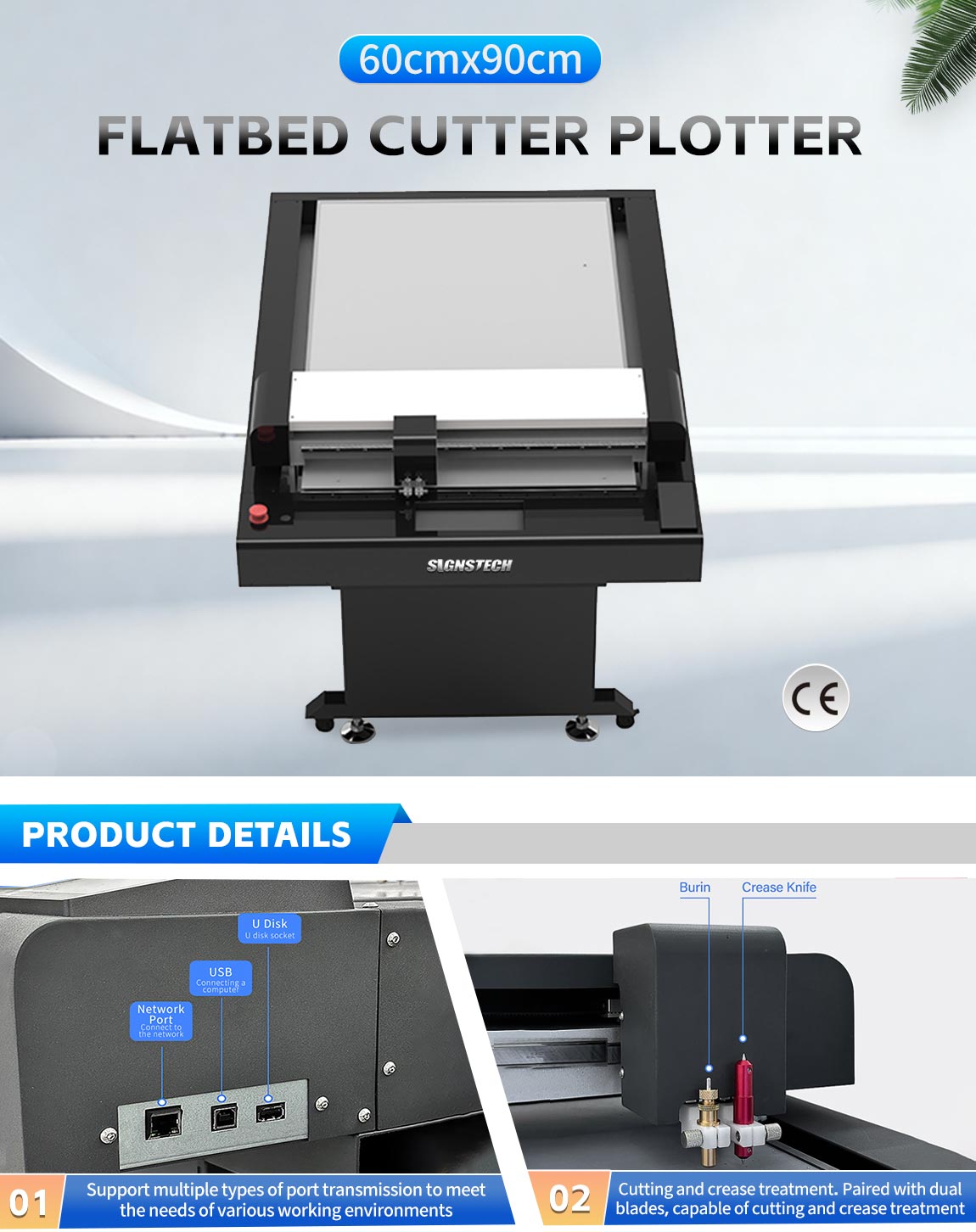

Interface |
USB/U-Disc port/Ethernet port |
|
Compatible software |
AL, CDR, PDF, PLT, JPG, BMP, DXF,TlF, no conversion required |
|
Command |
HPGL compatible format |
|
CNC panel |
Multi-language LCD touch panel |
|
Transmission material |
Imported belt |
|
Operating voltage and power |
AC90~240V/50HZ~60HZ |
|
Machine dimensions |
1490*1006*972mm |
