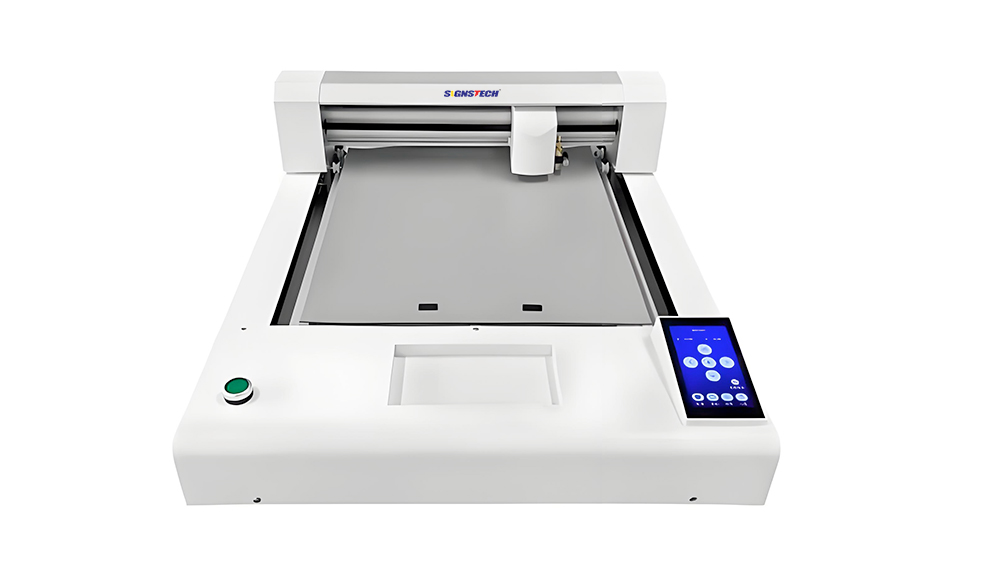

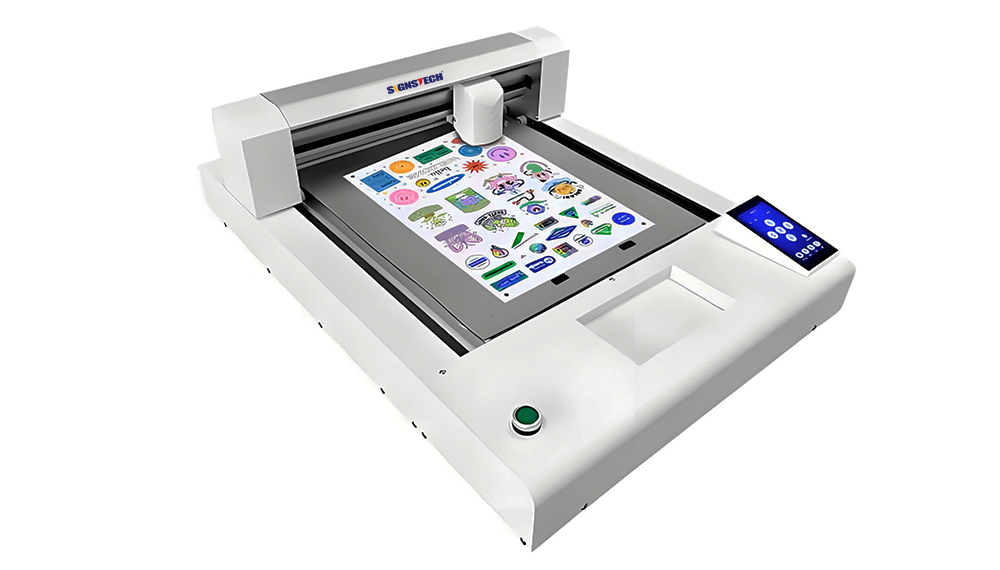

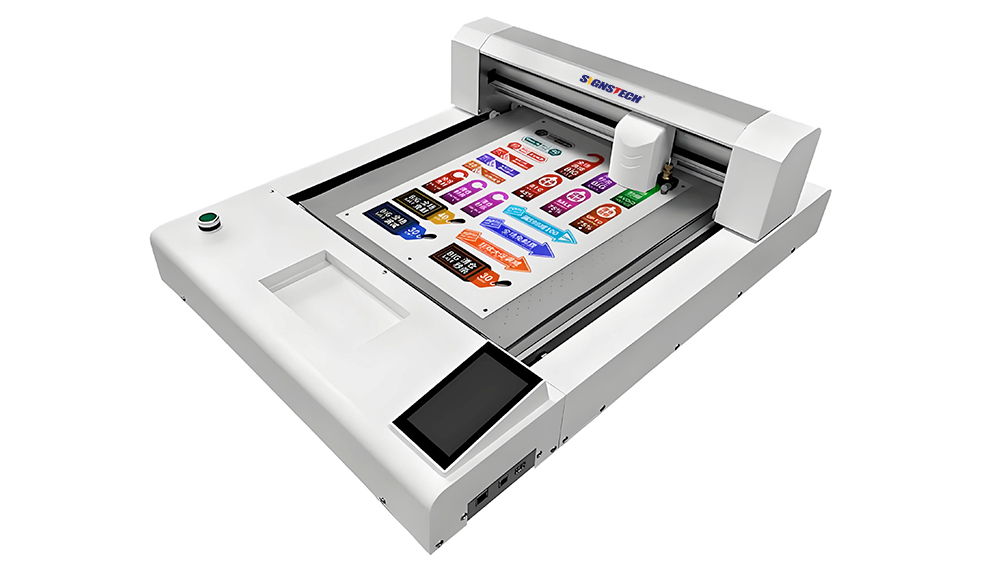

Model |
P4030C |
| Cutting size |
420mm*300mm |
|
Cutting speed |
1mm/s~800mm/s |
|
Cutting thickness |
Max 1.2mm |
|
Cutting pressure |
1000g |
|
Cutting accuracy |
士0.15mm |
|
Cutting circle diamete |
≧1mm |
|
Repeatability accuracy |
≦0.05mm |
|

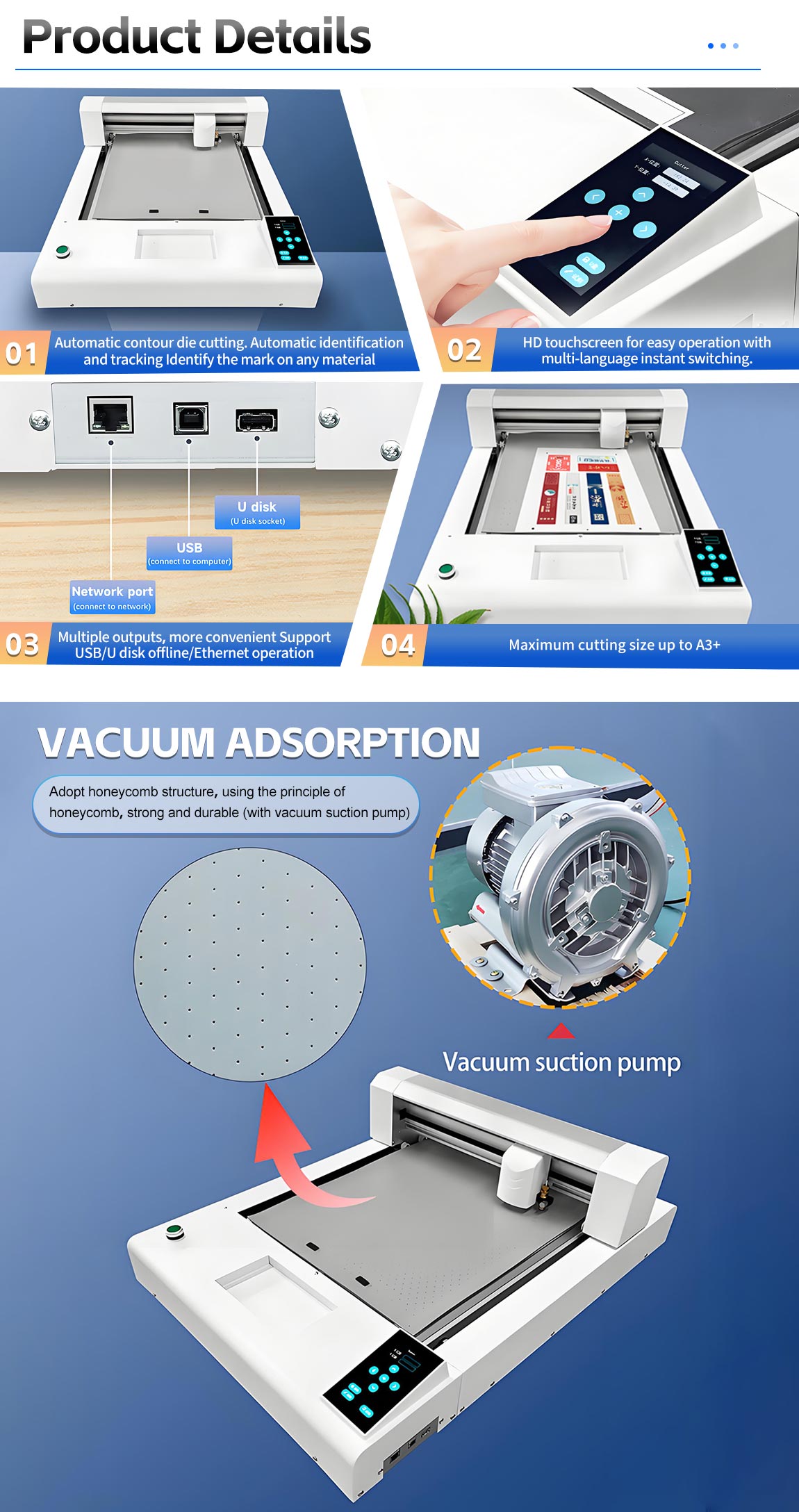

Material fixing method |
Vacuum adsorption |
|
Transmission interface |
USB, U flash drive, Ethernet port |
|
Software |
Signmaster |
|

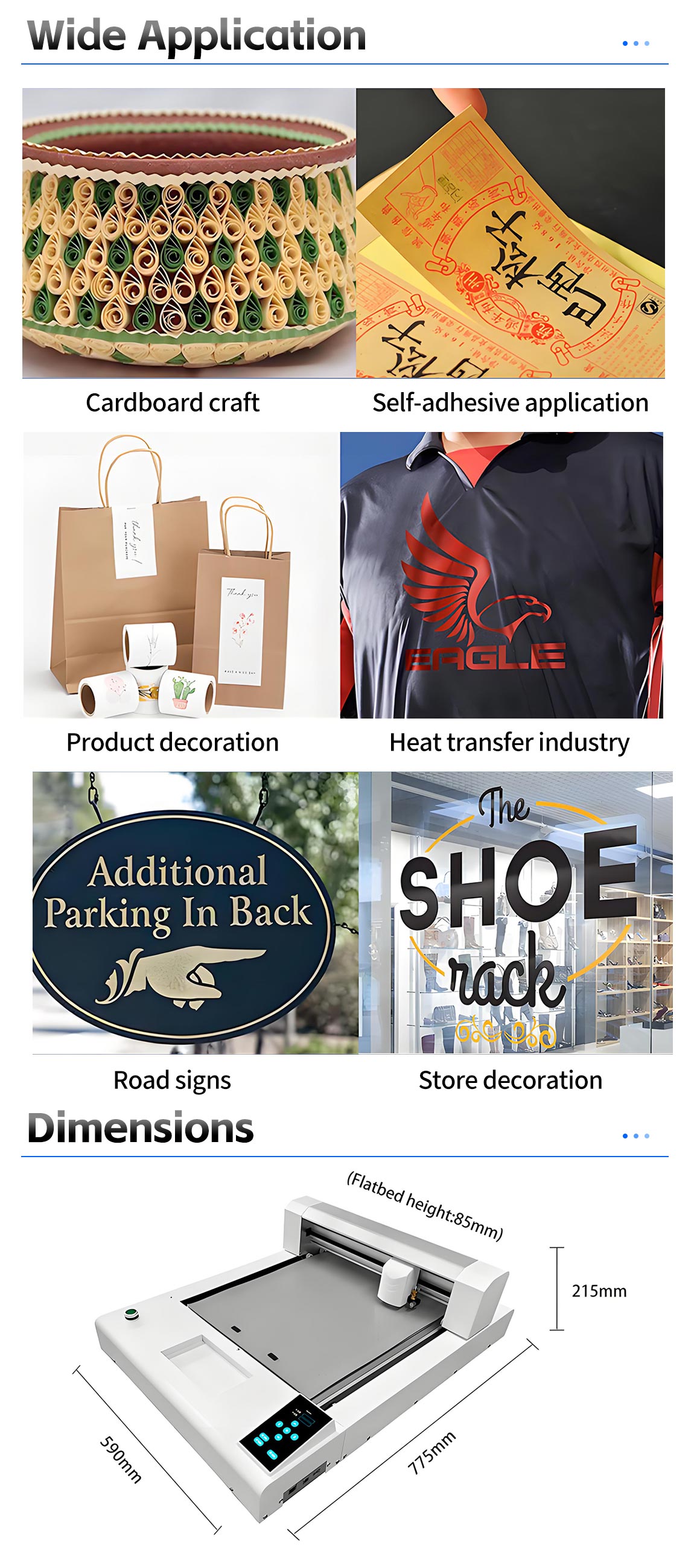

Product dimensions |
77.5*59*21.5cm(flatbed height:8.5cm) |
|
Air pump power |
220V 0.37KW |
|
Command |
HPGL compatible format |
|
Positioning method |
Camera positioning system |
|
Working voltage/power |
AC 220V+10%,50HZ |
|
Cutter package dimensions |
L95*W74*H40cm |
|
Pump package dimensions |
L34*W 34*H34cm |
|
Machine gross weight |
34.4kg |
|
Air pump gross weight |
12.4kg |
