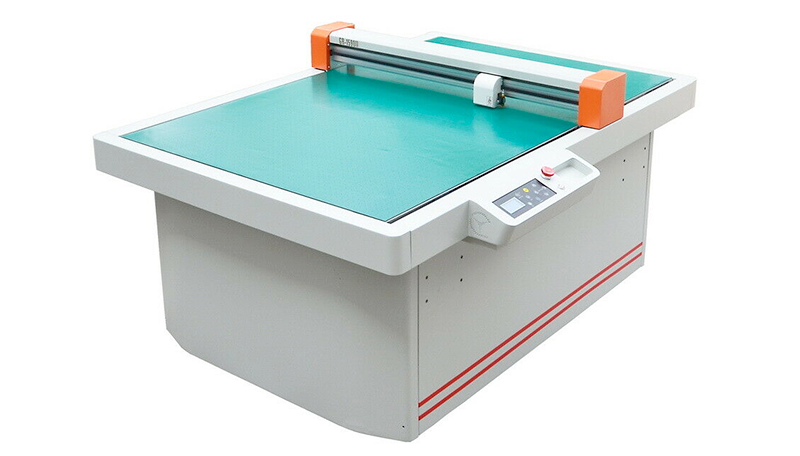

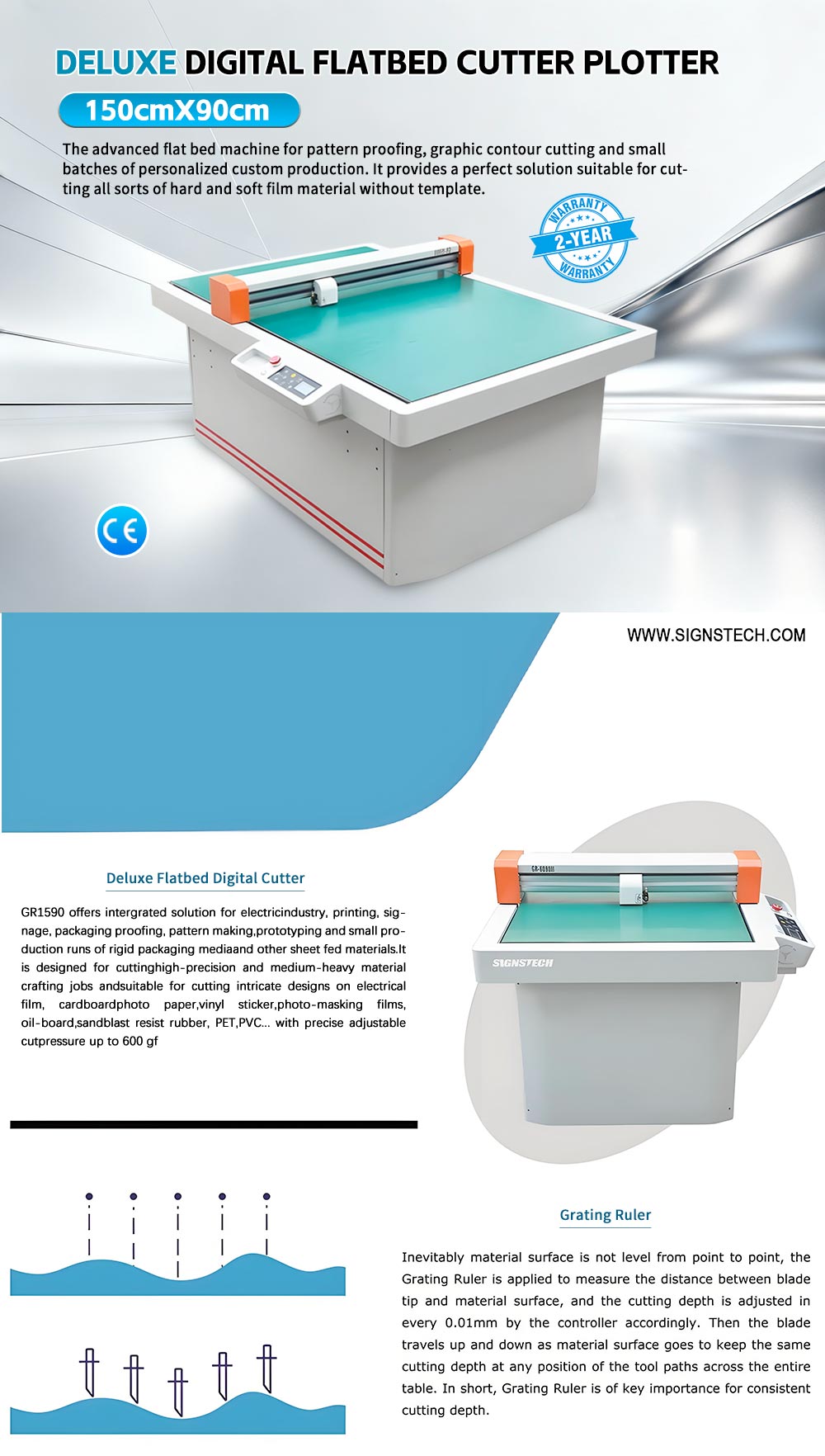

Model |
GR-1590 |
|
Max. cutting width |
900*1500mm |
|
Cutting depth |
0.03-1mm |
|
Applicable media |
Soft and medium-rigidity medias |
|
Max. cutting speed |
600mm/s |
|
Cutting pressure |
600g/5.8N in 8 steps |
|
Mechanical precision |
0.025mm |
|
Cutting pressure setup |
Adjustable in every 1g |
|
Blade diameters |
Ø0.9mm Ø1.5mm Ø2.0mm |
|
Blade angles |
35° 45° 60° |
|

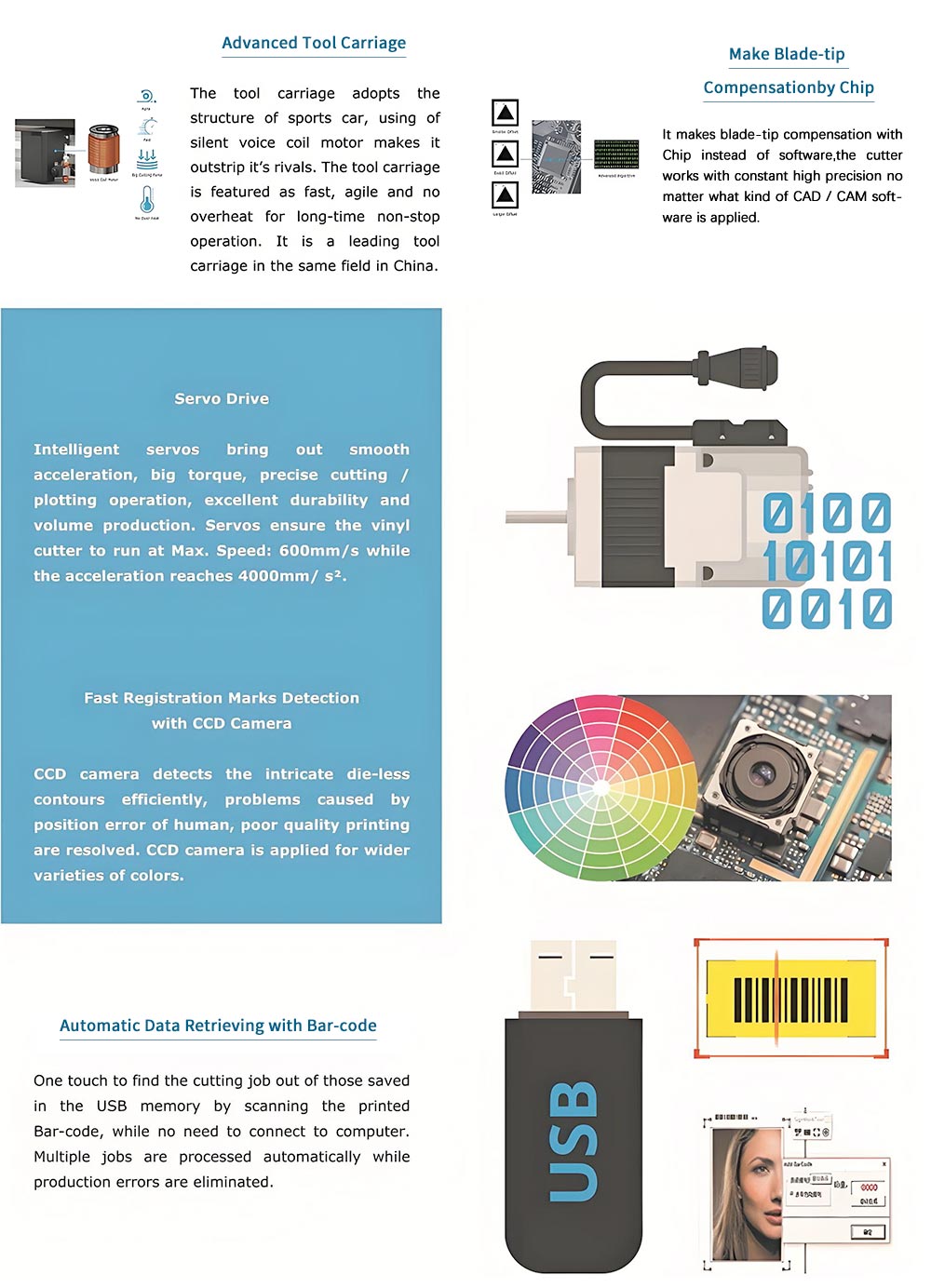

Drive |
AC Servo |
|
Port in standard |
RS-232/USB2.0 flash memory |
|
Memory Buffer |
2M |
|

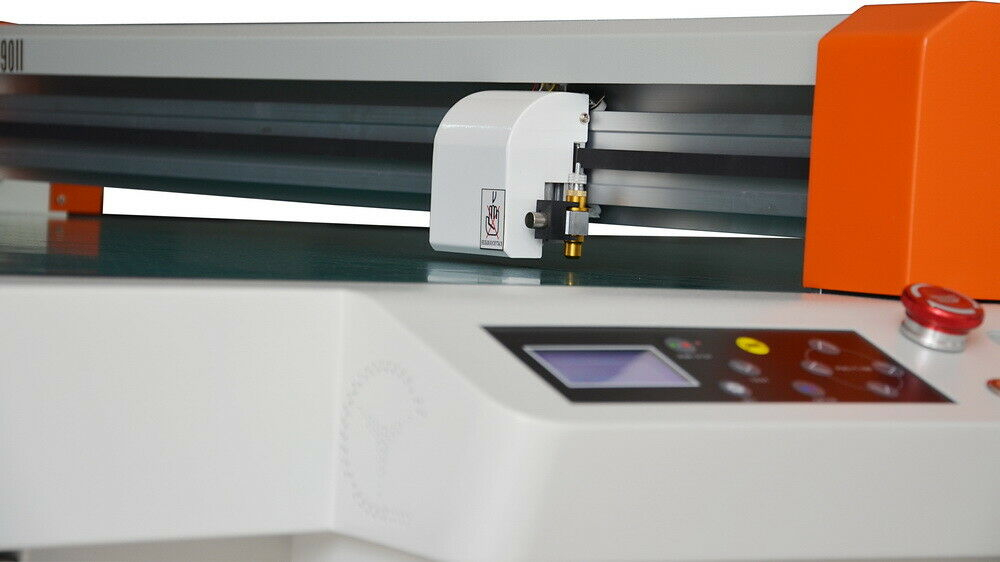

Cutter holder/pen holder |
1pcs for each |
|
File format |
HG-GL / PLT |
|
Power input |
110V-220V AC 50/60Hz |
|
Power consumption |
620W |
|
IOS |
Windows10/8/7 /xp |
|
Software Compatible |
SignWorkPro,Adobe Illustrator, CorelDRAW,AutoCAD,SignCut, SignMaster |
|
CAD output plug-in |
CADtoplotpro |
|
Registration Marks Recognition |
ARMS with red laser sensor |
|
Method to fix material |
Vacuum table |
|
Machine Dimensions |
1400x 1820x 980mm/220kg |
| Package Dimensions |
1520x1950x1220mm/300kg |
