| Model |
MC630 (25'') |
MC1270(50'') | MC1500(59'') |
| Media Way |
Desk cutter |
Floor Stand | Floor Stand |
|
Main Board |
High-performance & intelligent ARM 32 CPU; 256MB memory | ||
| Driver |
High speed stepping motor, micro-step driver |
||
|
Max Paper Feed Width |
730mm |
1400mm | 1600mm |
| Max Cutting Width |
630mm |
1270mm | 1500mm |
| Max Cutting Speed |
800mm/s |
||
| Cutting Force |
0-500g(digital adjustment) *optional1000g |
||
| Mechanical Precision |
0.05mm |
||
| Repeatable Precision |
< +-0.1mm |
||
| Plotter Instruction |
DM-PL/HP-GL Automatic Identification |
||
| Interfaces |

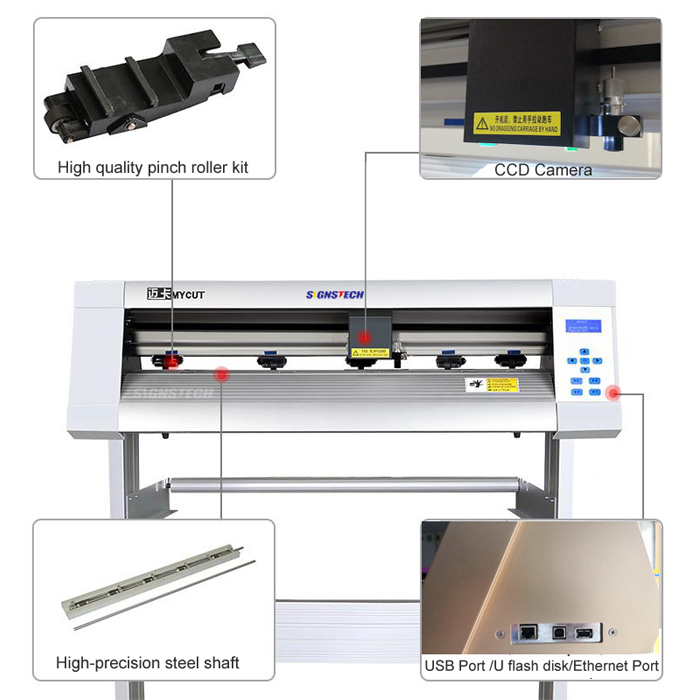

USB / Ethernet port, USB flash stick plug |
||
| Power Supply |
AC110V /220V±10%, 50Hz/60Hz |
||
| Laser point Positioning |

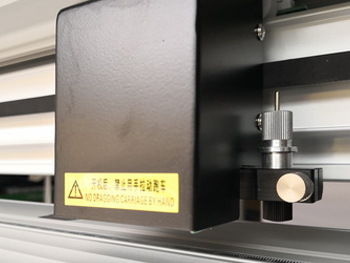

ARMS(Automatic Registration marks system) CCD |
||
| Noise at Work |
≤50 DB |
||
|
Support software |
Artcut,coreldraw,AI,Flexi,Signmaster | ||
|
External Dimension |
1045mmx330mmx390mm |
1590mm*330mm*390mm |
1890*330*390mm |
|
Shipping Weight |
23kgs |
33kgs |
42kgs |
|
Accessories in Package |

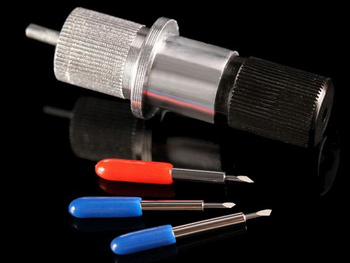

Power cordx1, manual CDx1,blade holderx1,bladex3,pen holderx1,USB cablex1,Ethernet cablex1, SignMaster software x1 ,assembly manualx1 |
||
