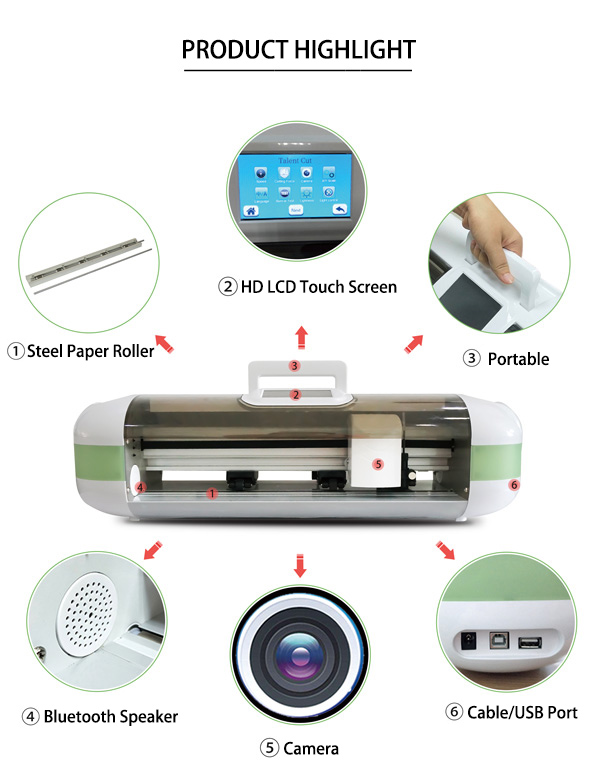

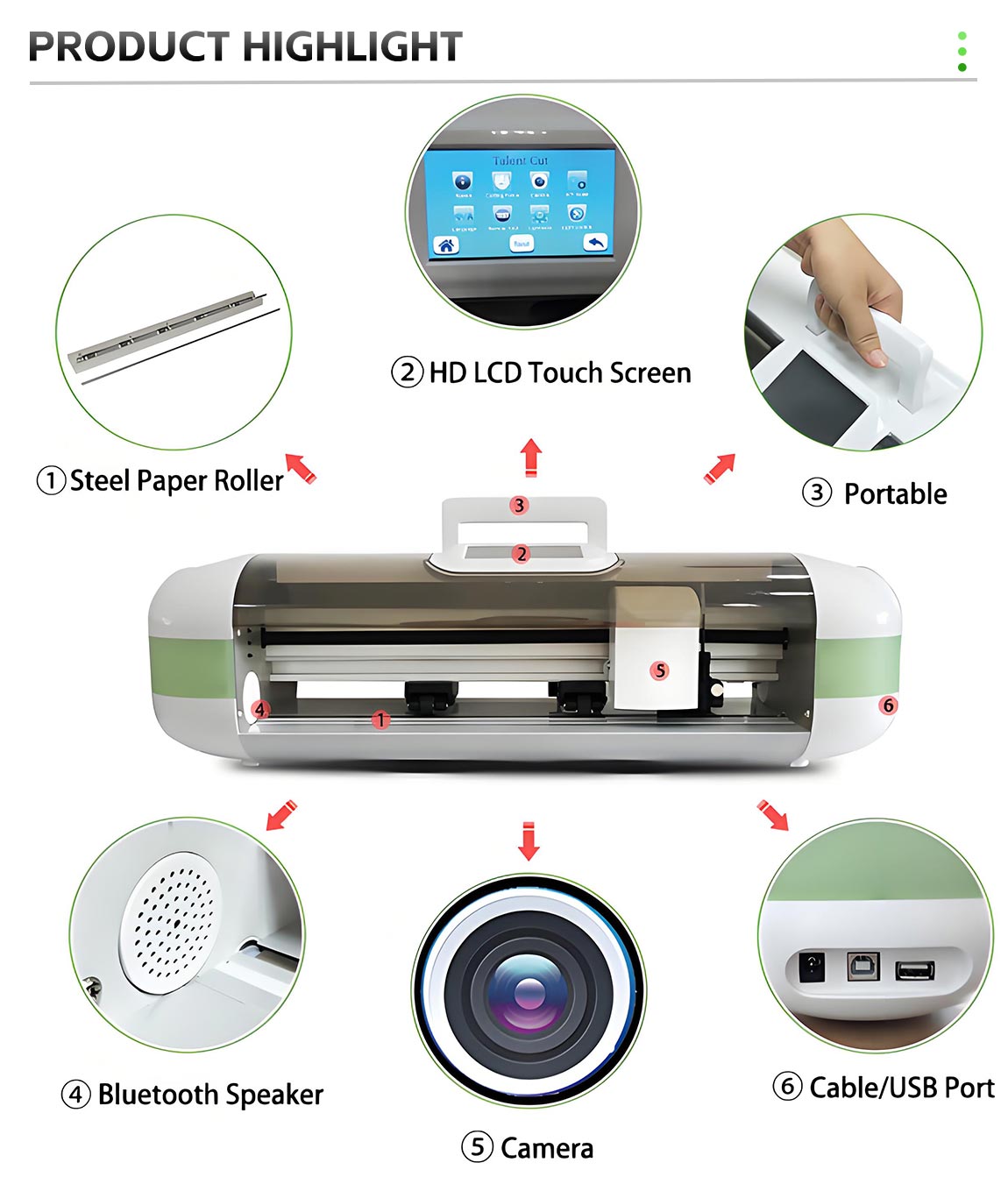

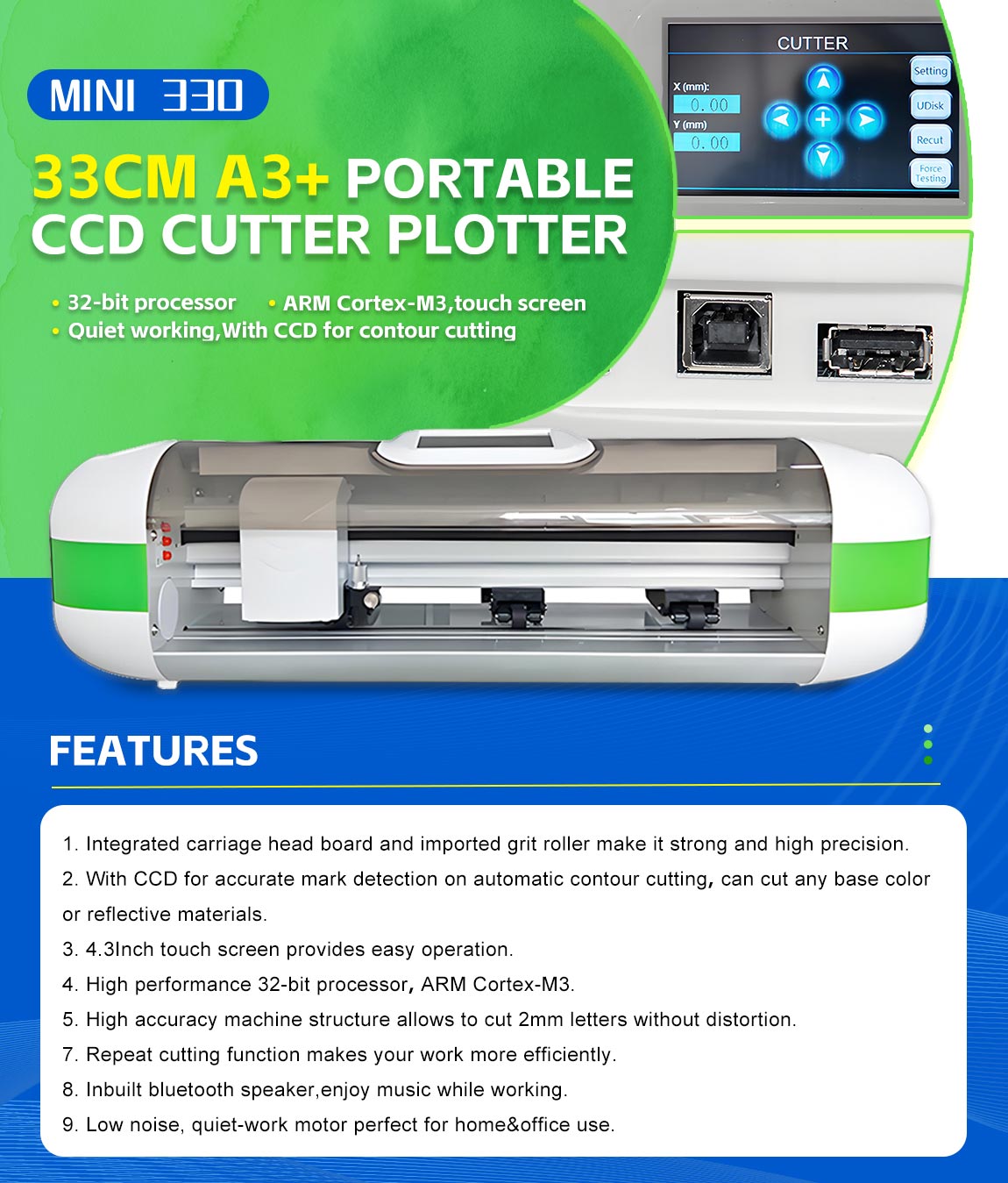

Features:
1. Integrated carriage head board and imported grit roller make it strong and high precision;2. With CCD for accurate mark detection on automatic contour cutting, can cut any base color or reflective materials
9. Low noise, quiet-work motor perfect for home&office use;

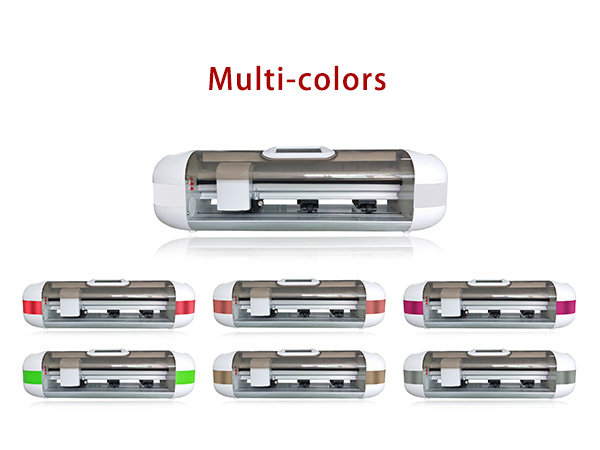

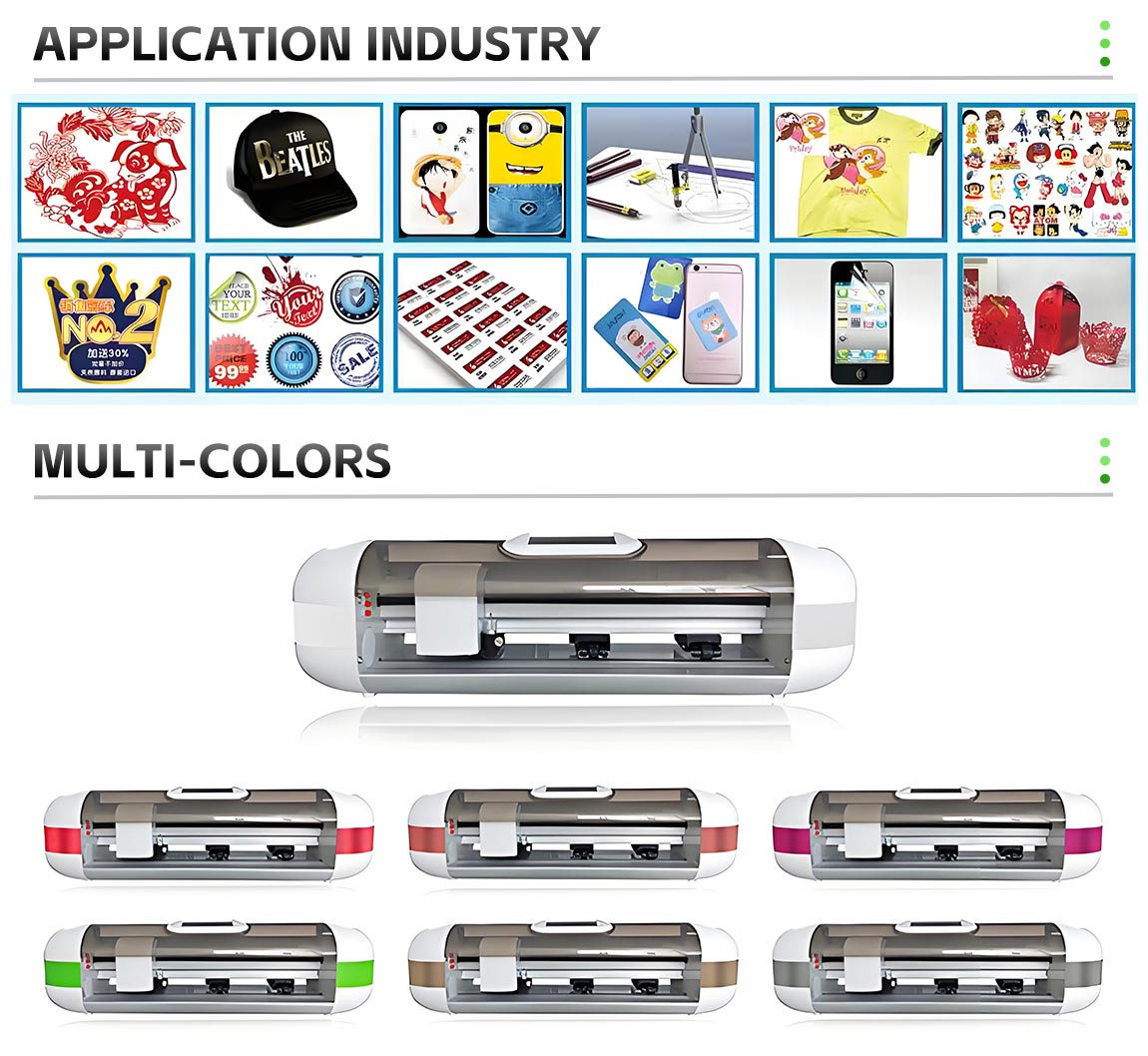

Optional machine color:
|
Model Number |
Mini 330 cutter plotter |
|
Main Board |
High-performance & intelligent ARM 32 CPU; 256MB memory |
|
Driver |
High speed stepper motor, micro-step driver |
|
Max Paper Feed Width |
430mm |
|
Max Cutting Width |
330mm, Contour cutting Max 290mm |
|
Max Cutting Speed |
800mm/s |
|
Cutting Force |
0-600g |
|
Repeatable Precision |
0.05mm |
|
Plotter Instruction |
DM-PL/HP-GL Automatic Identification |
|

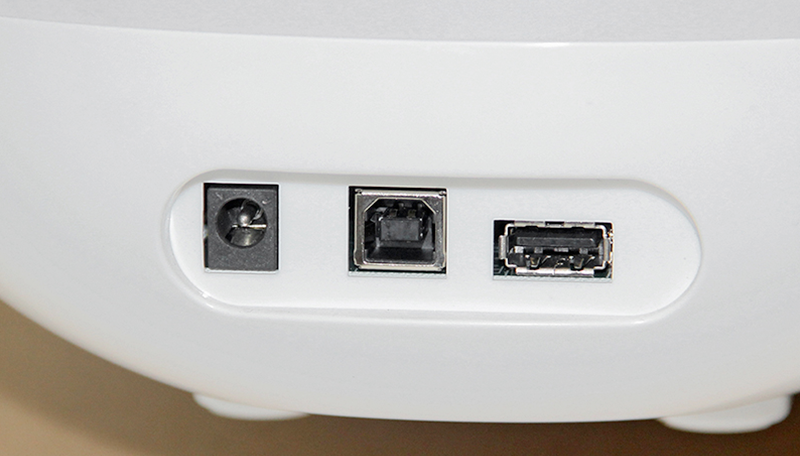

Interfaces |
USB / U-Disc port/ Ethenet port |
|
Power Supply |
AC110V /220V±10%, 50Hz/60Hz |
|
Software |
Signmaster, Coreldraw |
|
Noise at Work |
≤50 DB |
