Multiple interfaces Supports various types of port transmission
Widely application for DTF UV sticker,PET film,PVC,cardboard, vinyl sticker, film, fiber Composite material, Paper,PU, plastic board, etc
|
Model |
PA6060C |
|

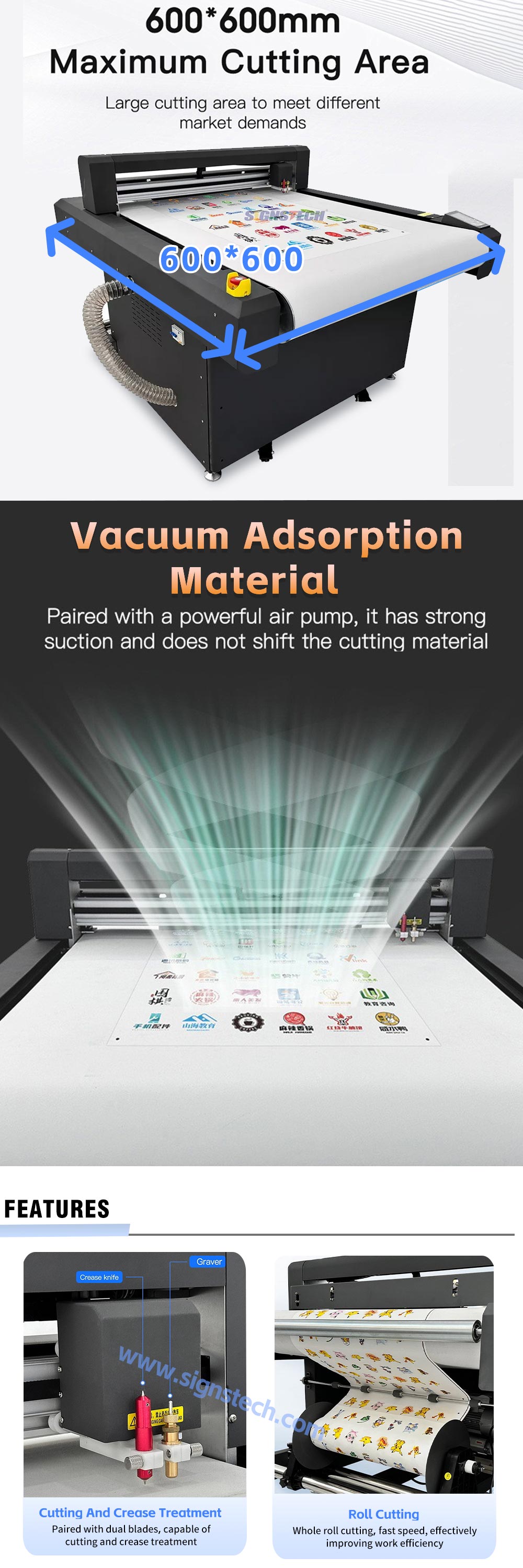

Cutting area |
600mm*600mm |
|
Speed |
1mm/s~800mm/s |
|
Max material thickness |
1.2mm |
|
Cutting pressure |
1000g |
|
Cutting Materia |
PET, PVC, cardboard, vinyl, film, fiber composite materials, Paper, PU, rubber etc. |
|
Tool |
Cutting and Creasing |
|
Contour cut |
ARMS, with CCD camera Automatic contour cut |
|
Air Vacuum |
Yes |
|
Auto feeding |
Yes |
|
Motor |
Leadshine® Servo motor |
|
Cutting accuracy |
±0.15mm |
|
Repeat accuracy |
≦0.05mm |
|
Cut the circular diameter |
≧1mm |
|
Interface |
USB、U-disk、Ethernet |
|
Compatible software |
SianMaster、Autocad、Coraldraw and Al/plugin |
|
Instruction system |
HPGL |
|
Panel |
Multi -language LCD touch panel |
|
Transmission part |
Import belt |
|
Voltage and power |
AC 220V± 10%50HZ / 110v± 10% 60HZ 1.1kw |
|
Dimensions |
1330mm*990mm*940mm |
|
Package Dimensions |
1600mm*1300mm*1300mm,220kg |
