Item |
Specification |
|||
|
Characteristics |
Laser power |
20W/30W/50W Optional |
||
|

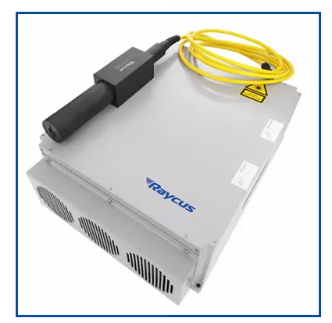

Laser type |
Pulsed fiber lasers |
|||
|
Laser wavelength |
1064nm |
|||
|
Output power |
≥20w |
≥30W |
≥50W |
|
|
Marking speed |
≤7000mm/s |
|||
|
Marking speed |
0.01-0.3mm |
0.01-0.5mm |
0.01-1mm |
|
|
Repetition rate |
20-80kHz |
|||
|
Pulse width |
Fixed pulse width |
|||
|
Master control system |
Ezcad2 |
|||
|
Cooling system |
Air-cooled |
|||
|
Marking parameters |
Minimum line width |
0.01mm |
||
|
Repeatabilityaccuracy |
0.001mm |
|||
|
Marking area |
110mmxl10mm,Optional 150x150mm, 175x175mm |
|||
|
Targeting method |
Red light preview |
|||
|
The number of lines of engraved characters |
Any line within the marking range |
|||
|
Software Introduction |
Multi-user management permissions are supported |
|||
|
Supports reading text data through serial port |
||||
|
Powerful filling function, support ring filling |
||||
|
Supports dynamic reading of txt text files and Excel files |
||||
|
Support Windows7/10/11 system, compatible with lightburn software |
||||
|
Support automatic code skipping, date, time and other variable marking of serial numbers |
||||
|
It supports 256 kinds of layers, and different processing parameters can be set for different objects |
||||
|
Chinese , English, Korean, Japanese, French, Portuguese,Turkish, Thai, Russian, Italian, Vietnamese, Spanish, German |
||||
|
Types ofsupport |
Font |
TrueType fonts, JSF single-line fonts, SHX fonts, DMF dot matrix fonts, QR codes and barcodes |
||
|
File format |
Compatible with BMP, JPG, PNG, AI, DXF, PLT and other image formats |
|||
|
Curb parameters |
Power supply |
220V/50HZ Or 110V/60HZ |
||
|
Power consumption |
800W |
|||
|

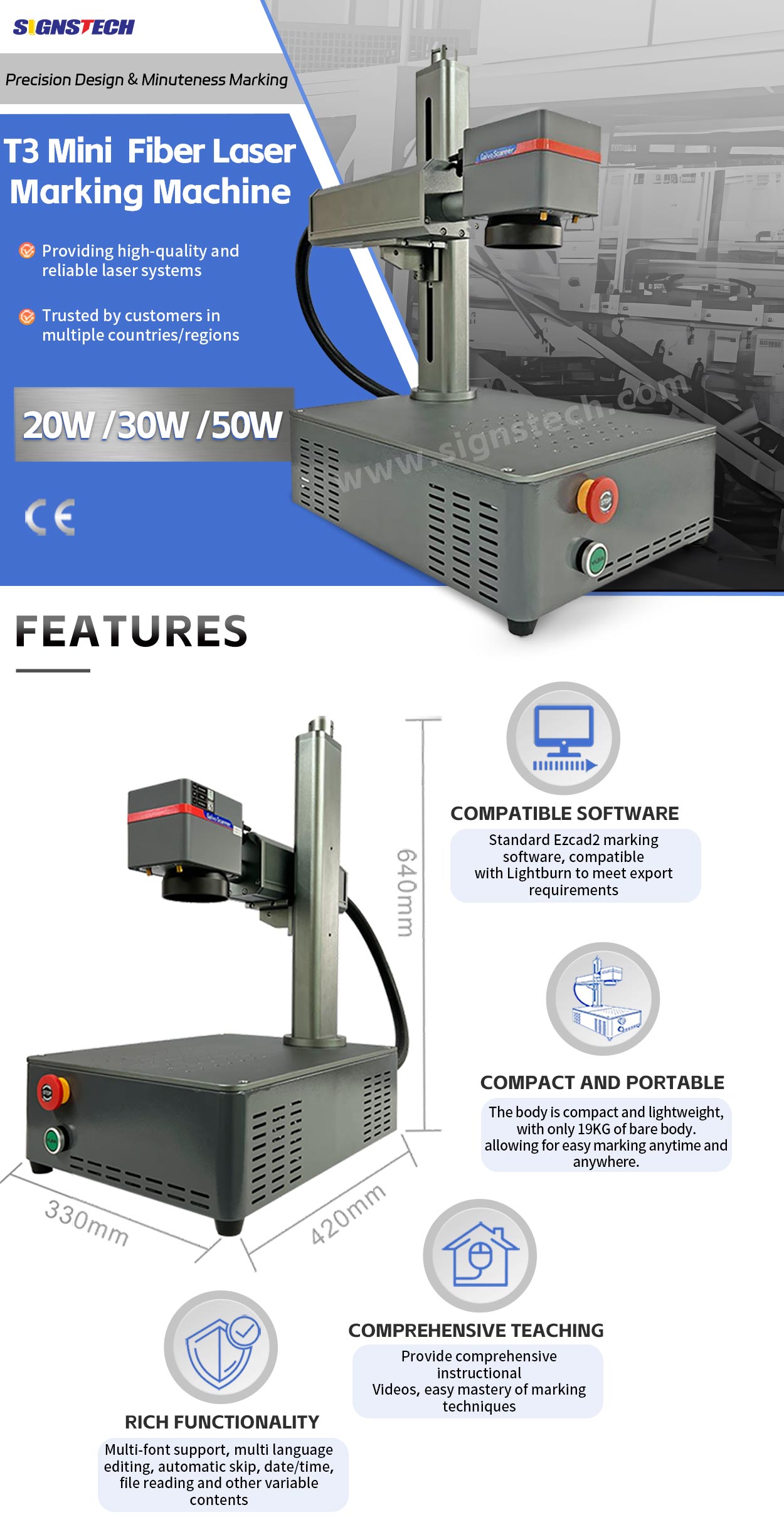

Machine size |
420*330*640mm |
|||
|
Machine weight |
19kg |
|||
|

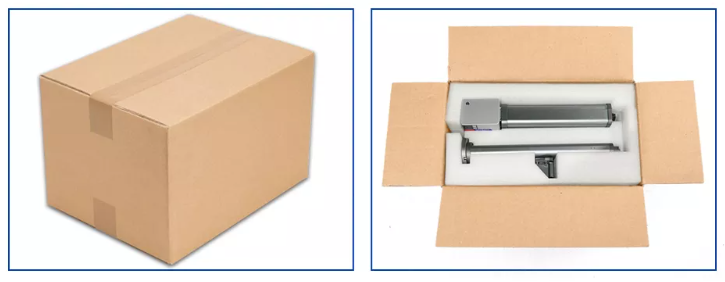

Package size |
Wooden box:570*400*500mm Carton box:600*430*390mm |
|||
|
Package weight |
Wooden box:27KG Carton box:21KG |
|||
|
Environment |
Temperature |
Outside temperature0°C-45°C |
||
|
Humidity |
Humidity 95% non-condensing |
|||
