Item |
Technical Data |
| Working Area | 1500mmx3000mm, optional 1300mmx2500mm |
|
Laser Wavelength |
1080nm |
|

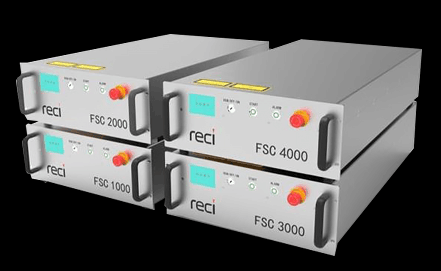

Laser power |
1500w,2000w,3000w,6000w or more |
|
Control system |
Ncstudio |
|

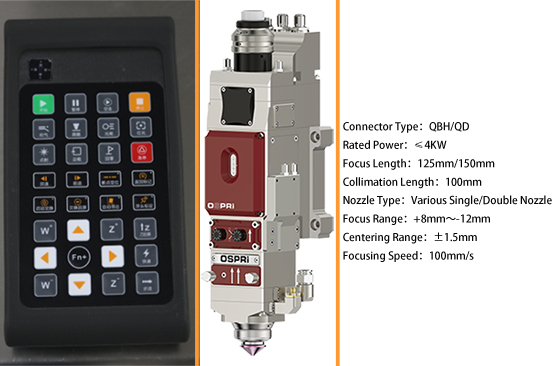

Laser Head |
OSPRI LCM08 |
|

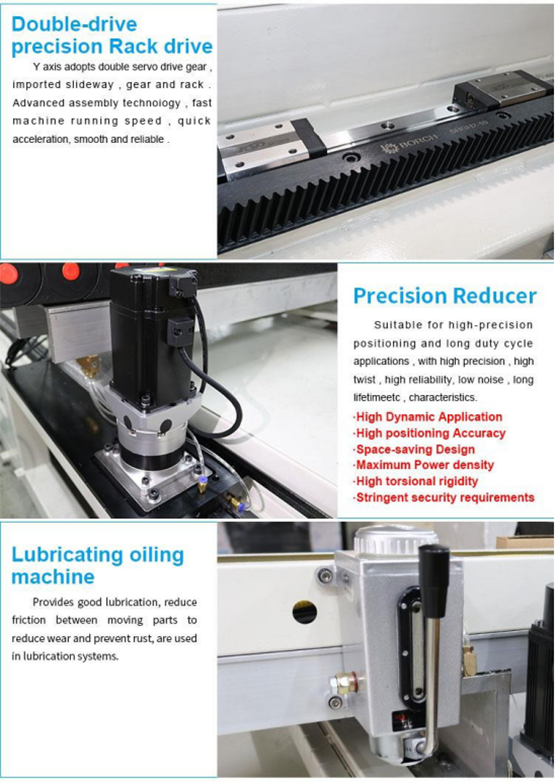

Gear for X,Y axis |
Taiwan Lead |
|
Linear Rails |
Taiwan Kingtek |
|

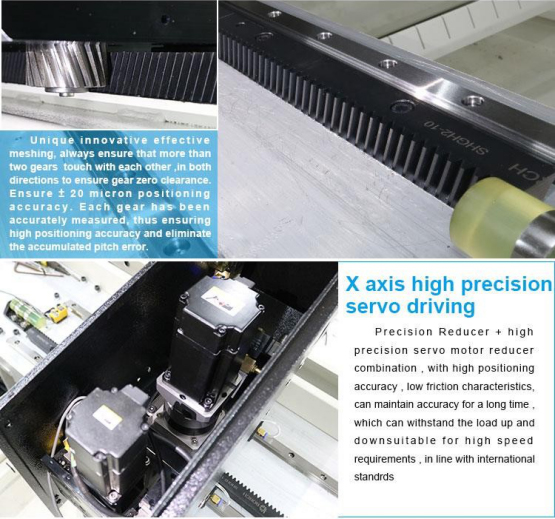

X,Y axis Reducer |
MOTOREDUCER From Italy |
|
Servo motors & Drivers |
NCstudio Bus System |
|
Proportional valve |
SMC from Japan |
|
Pulse frequency |
1 ~ 500Hz adjustable |
|
Aimed at positioning |
red light indicates |
|
X / Y axis repeat positioning |
accuracy of ± 0.02mm |
|
Maximum cutting thickness |
Depends on laser power and metal |
|
Max speed |
60m / min |
|
Max acceleration |
1.5G |
| Cooling Type | Water cooling |
|
Graphic format supported |
Plt,DXF/DWG/AI/CDR (supports Auto CAD CorelDraw) |
|
Power consumed |
≤42KW(6kw power source) |
|
Power requirements |
380V, 50Hz, 60A |
|
Dimensions |
(L×W×H) 4560mm*2300mm*1750mm |
|
Gross weight |
3500KG |
