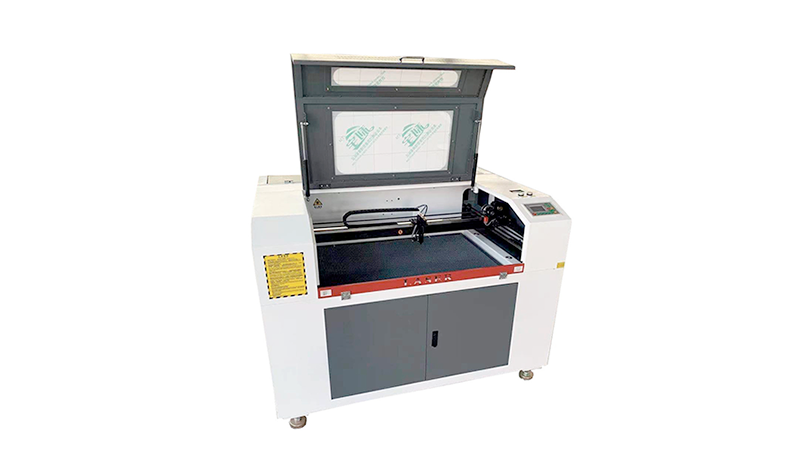

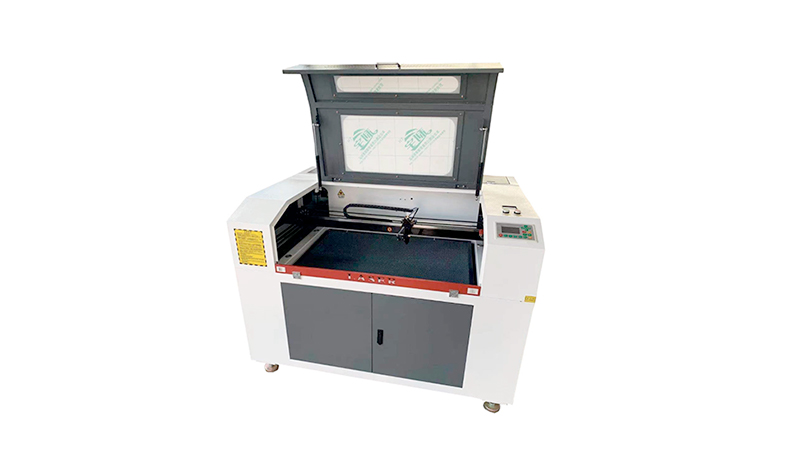

New product,economic and reliable,600mmx900mm laser engraver cutter,60w Co2 laser tube(optional 80w,100w)
Rdwork 6445 control system
High quality Linear rail #15
Stepper driving system #57
Electric lifting bed
Red dot pointer
CW-3000 water chiller and air pump
(3).For the engraving of titles,types,signs,patterns etc.on electronic parts.etc
Samples:
|
Working Area |
900mm×600mm |
|
Laser Power |
80w optional 100W |
|
Max Moving Speed |
0---1000mm/s |
|
Worktable |
honeycomb worktable/up &down |
|
Locating Precision |
＜0.01mm |
|
Min Shaping Character |
letter:2×2mm |
|
Driving System |
JMC stepper |
|
Control Configuration |
DSP Rdwork |
|
DataTransfer Interface |
USB (offline) |
|
Svstem Environment |
WINDOWS XP/Vista/win7/win8/win10 |
|
Cooling Way |
CW-3000 water chiller |
|
Graphic Format |
Supported(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) |
|
Compatible software |
CorelDraw,AutoCAD ,RDworks |
|
Cutting Ability |
0---20mm acrylic |
|
Power Supply |
AC220±10% 50HZ/AC 110±10% 60HZ |
|
Machine size |
1535*1200*1025 mm |
|
Package size |
1700*1350*1250 mm |
|
New Weight |
230kg |
|
Gross Weight |
300kg |
|
Optional Parts |
high-grade cooling system/imported focus lens/double-head/cylinder rotary attachment/irregular rotary attachment |
