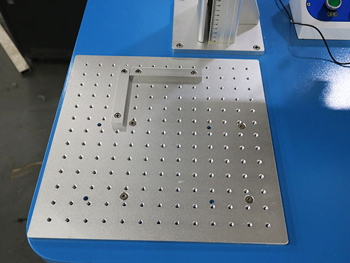

Working area 200x200mm, easy to feed materials |

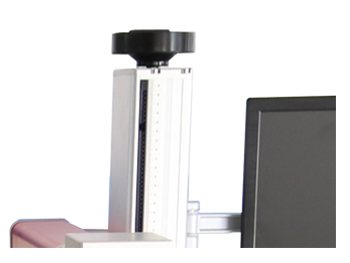

Manual Focusing distance bar, very easy to get best focusing distance |
 |
 |
|

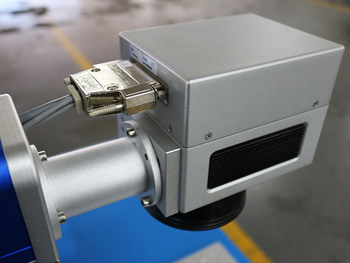

High quality RC7110 galvo scanner head |

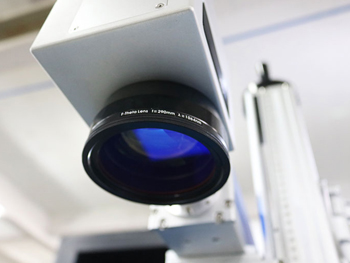

Scanner lens,marking position more precision |
 |
 |
|

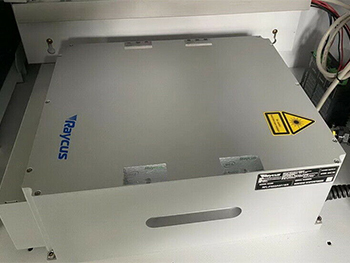

Famous Raycus brand fiber laser source |

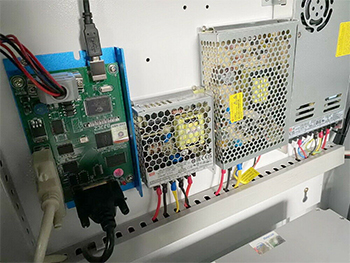

Ezcad control system,Quality power supply with anti-clutter circuit |
|
Applications:
|
|
|
Model |
FM-2020 |
|
Fiber laser power |
Raycus 30W,optional 50W |
|
Laser wave lenght |
1064nm |
|
Laser repetition frequency |
20KHz~80KHz |
|
Marking area |
200mmx200mm |
|
Marking speed |
≤7000mm/s |
|
Marking deepth |
≤0.4mm |
|
Min Line width |
0.012mm |
|
Min letter |
0.15mm |
|
repeatability precision |
+0.003mm |
|
Positioning Way |
Dual Red light |
|
Laser Module Life |
More than 100000 hours |
|
Control software |
JCZ EZCAD 2.12 Professional fiber laser marking software |
|
Supported Format |
PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG, etc |
|
Computer+Monitor |
Optional * 320$ with software pre-installed |
|
Certificate |
CE, FDA |
|
Options |

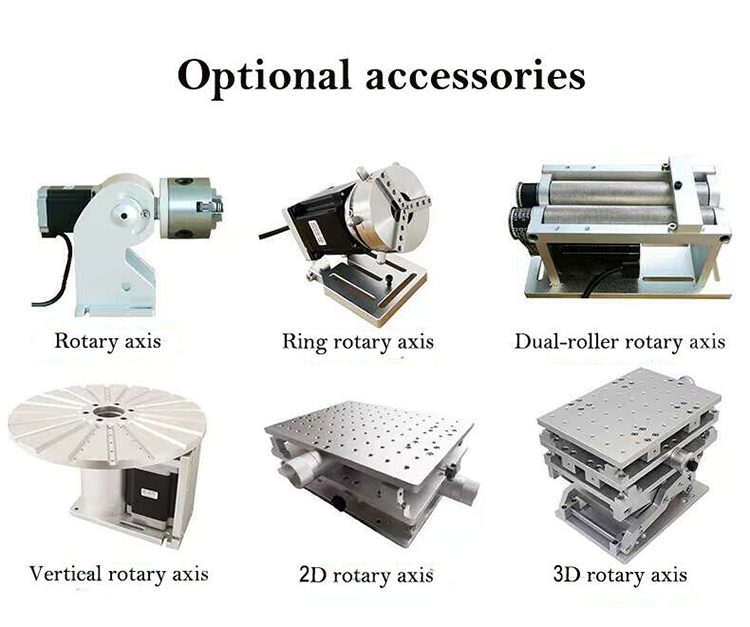

Rotary attachment, 2D/3D working table |
|
Material can be processed |
all metal material and part of non-metal material,such as hard plastic |
|
Power requireemnt |
AC220V / 50Hz / 4A |
|
Gross power |
500W |
|
Package dimensions |
800mmx900mmx1230mm |
