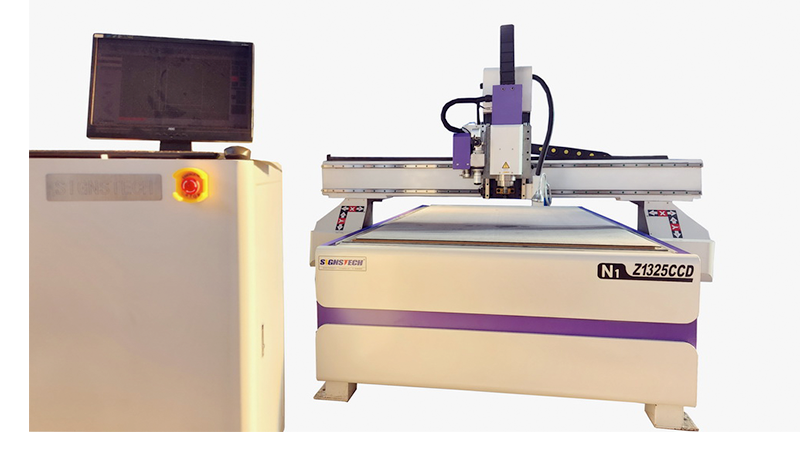

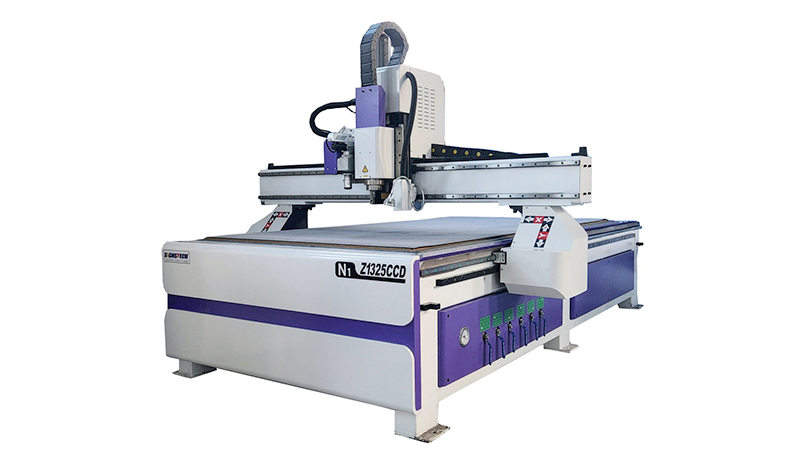

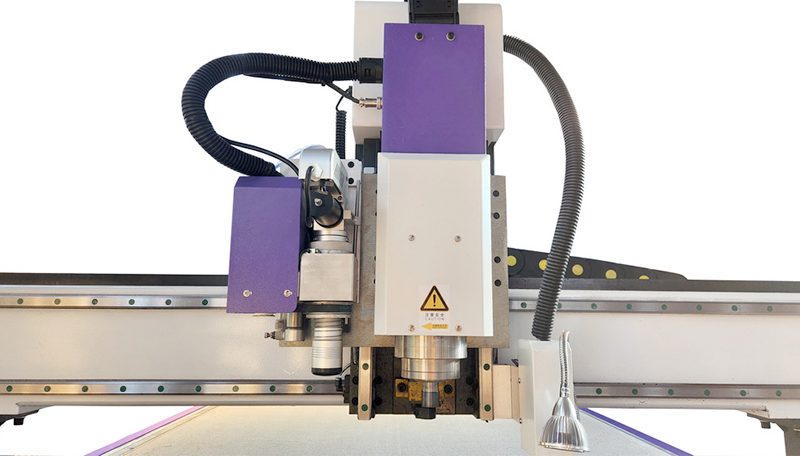

Contour cutting CNC Router for irregular shapes---Partner for UV printer

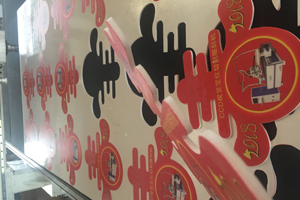

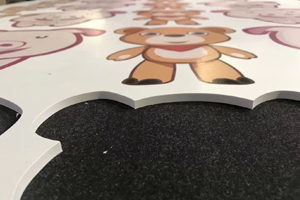

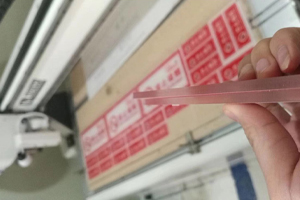

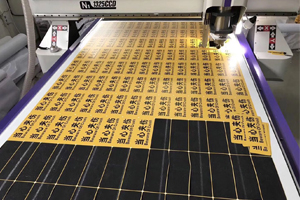

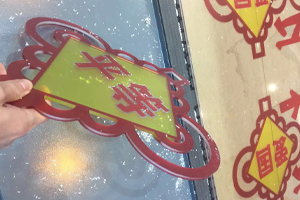

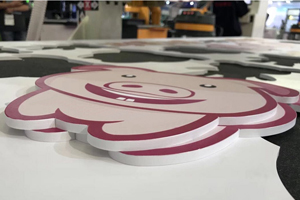

Applications：
|
Model |
N1-Z1325CCD |
|
Working Size |
1300x2500x180mm |
|
Max. Material Height |
200mm |
|
Spindle Power |
water cooling 3kw spindle + oscillating knife |
|
Spindle RPM |
0-24000rpm |
|
Tool Diameter |
Ø3.175,Ø4,Ø6,Ø8,Ø12.7 |
|
Driver |
hybrid servo |
|
Oscillating Knife Driver |
AC SERVO |
|
Control System |
CCD control system |
|
Mechanical Structure |
Industrial Square Steel Pipe |
|
Transmission |
Ball Screw for Z ; Belt and helical Rack & Pinion for X,Y |
|
XYZ rails |
PMI Linear rails |
|
Repositioning Accuracy |
<0.03mm/300mm |
|
Max. No-loading Speed |
20000mm/min |
|
File Transfer |
USB |
|
File Format |
G Code or HPGL |
|
Power Supply |
AC220V or 380V,50-60Hz |
|
Working Table |
Vacuum table, with T slot |
|
Vacuum Pump |
7.5kw air cooling pump |
|
Dust Collect System |
High-power intelligent dust collection system |
|
External Form Size |
2100*3200*1900mm |
