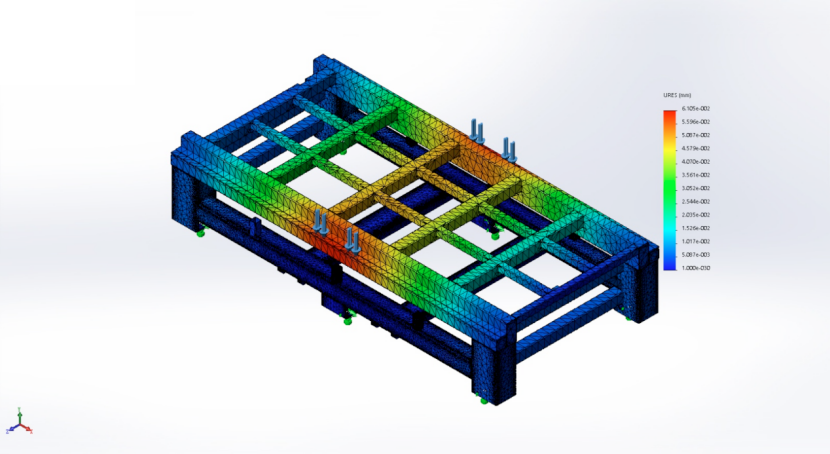

1:Industrial Square Steel Pipe,Machine tempering brittleness,Imported Pentahedron Machine Tool Processing,Basic accuracy guaranteed.
2:XYZ axies take Imported lead screw.Double lead screw for Y axis,Stable Moving,Low noise and High precision.
3:XYZ axis take original PMI Linear Rails from Taiwan.
4:High Performance AC Servo motor ensures high speed and high precision operation
5:Designed by professional team, advanced structure, simple appearance and generous

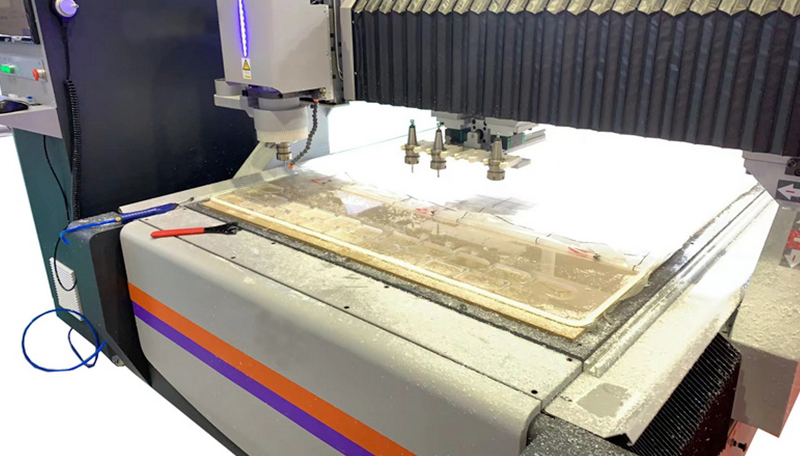

6:Applicable materials: MDF, wood,Polished Cutting for Aluminum,Copper,Relief of Aluminum and Copper,Acrylic products and Processing of Various Composite Materials
|

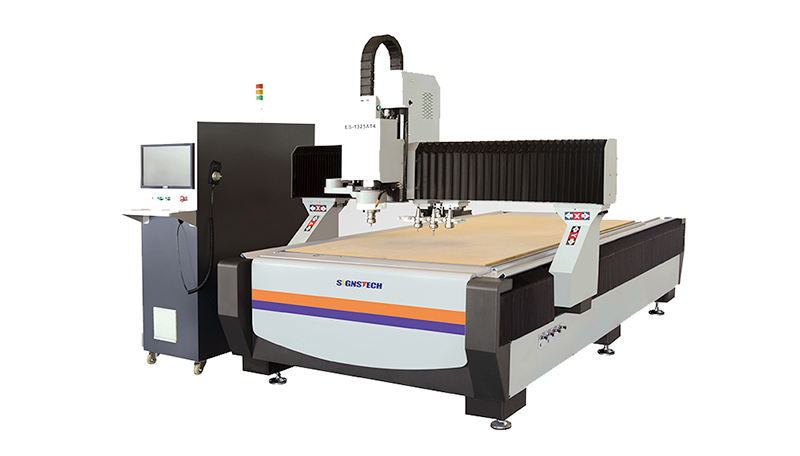

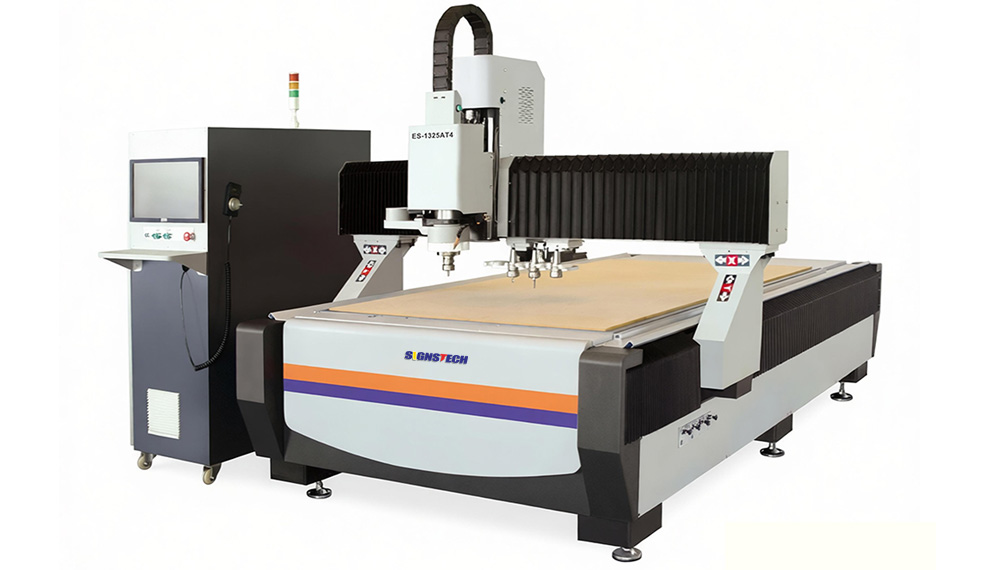

Model |
ES-1325AT4 |
|
Table Size |
1310x2940mm |
|
XYZ Working Size |
1300x2500x250mm |
|
Max.Material Height |
130mm |
|
Spindle Power |
7.5KW 380V ATC Water Cooling |
|
Psi/Cfm |
0.6-0.8bar |
|
Tool Holder |
BT30,ER32 |
|
ATC Tool Station |
Linear 4 position by gantry |
|
Speed RPM |
0-24000rpm |
|
Tool Diameter |
Ø3.175,Ø4,Ø6,Ø8,Ø12.7 |
|
Driver |
Huichuan AC Servo |
|
Tool Diameter |
Ø3.175,Ø4,Ø6,Ø12.7 |
|
Control System |
2200A Taiwan LNC Controller |
|
Mechanical Structure |
Industrial Square Steel Pipe |
|
Transmission |
Ball Screw for XYZ;Integral structure Double Ball Screw for Y |
|
Repositioning Accuracy |
<0.03mm/300mm |
|
XYZ rails |
Imported PMI Linear Rails |
|
Max. No-loading Speed |
18000mm/min |
|
Max. Engraving Speed |
15000mm/min |
|
Positioning Accuracy |
<0.05mm/m |
|
Repositioning Accuracy |
<0.02mm/m |
|
Table Top |
4 districts Butterfly Valve Vacuum adsorption platform |
|
Vacuum Pump |
Air cooling 7.5kw(With silencer and pressure relief valve) |
|
File Transfer |
USB or Net-work |
|
File Format |
G Code |
|
Power Supply |
380V,50-60Hz |
|
External Size |
3490x2010x2100mm |
|
Packing Size |
3600x2250x2100mm |
|
Net/Gross Weight |
1500/1900kg |
|
Optional Models |
ES-1313， ES-1318， ES-1325，ES-1530 |
