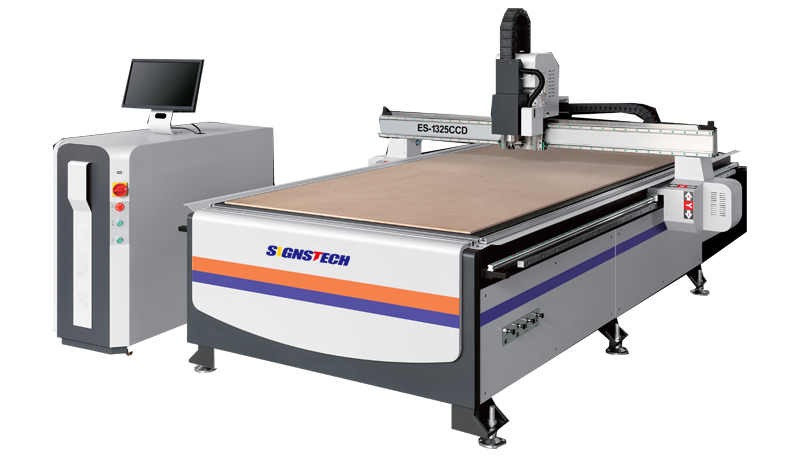

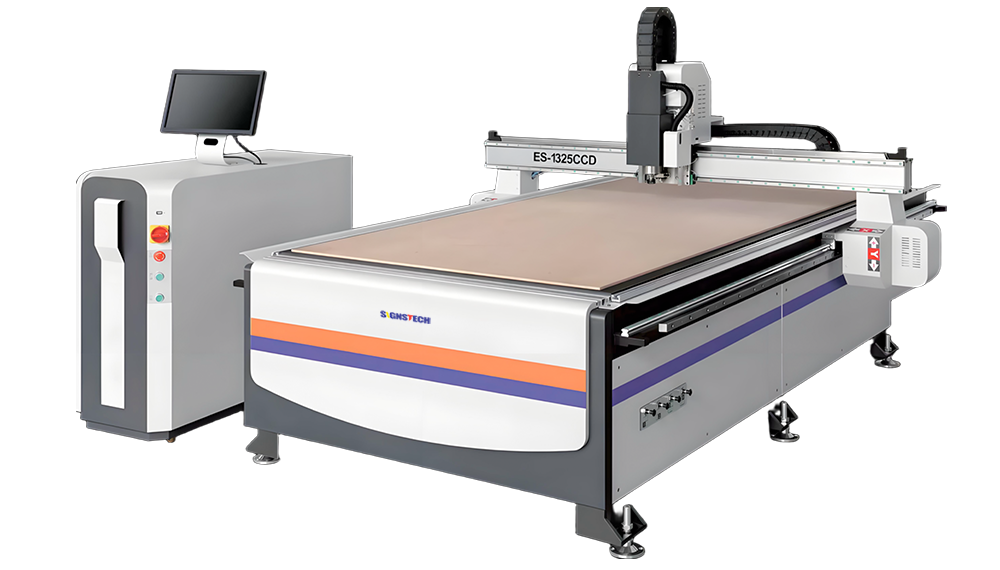

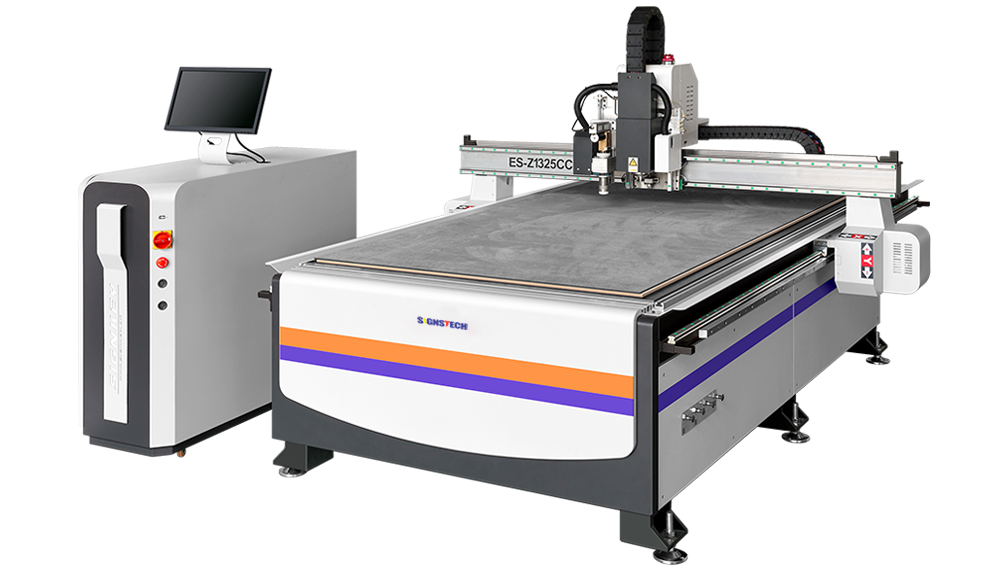

130cmx250cm CNC Router CCD Contour Cutting

Model:
ES-1325CCD/Z1325CCD
Remarks:
4ftx8ft,With CCD,3kw spindle 40000rpm.AC servo driving system,vacuum bed
BROCHURE INQUIRY NOW
Captcha

Features

Parameters

Performance features:

1. Automatic keying and outline generation, saving the user a lot of time.

2. Industrial grade bed with box structure, smooth running, low noise and high precision.

3. XY high-precision rack and pinion + linear guide for high precision and high load

4. Intelligent servo drive, stable and efficient

5. Powerful: intelligent camera positioning for edge finding and cutting as well as 3D engraving, all in one machine

Applicable Fields:

Spindle: cutting acrylic, woodworking, thick PVC, aluminum, copper and other soft metals,

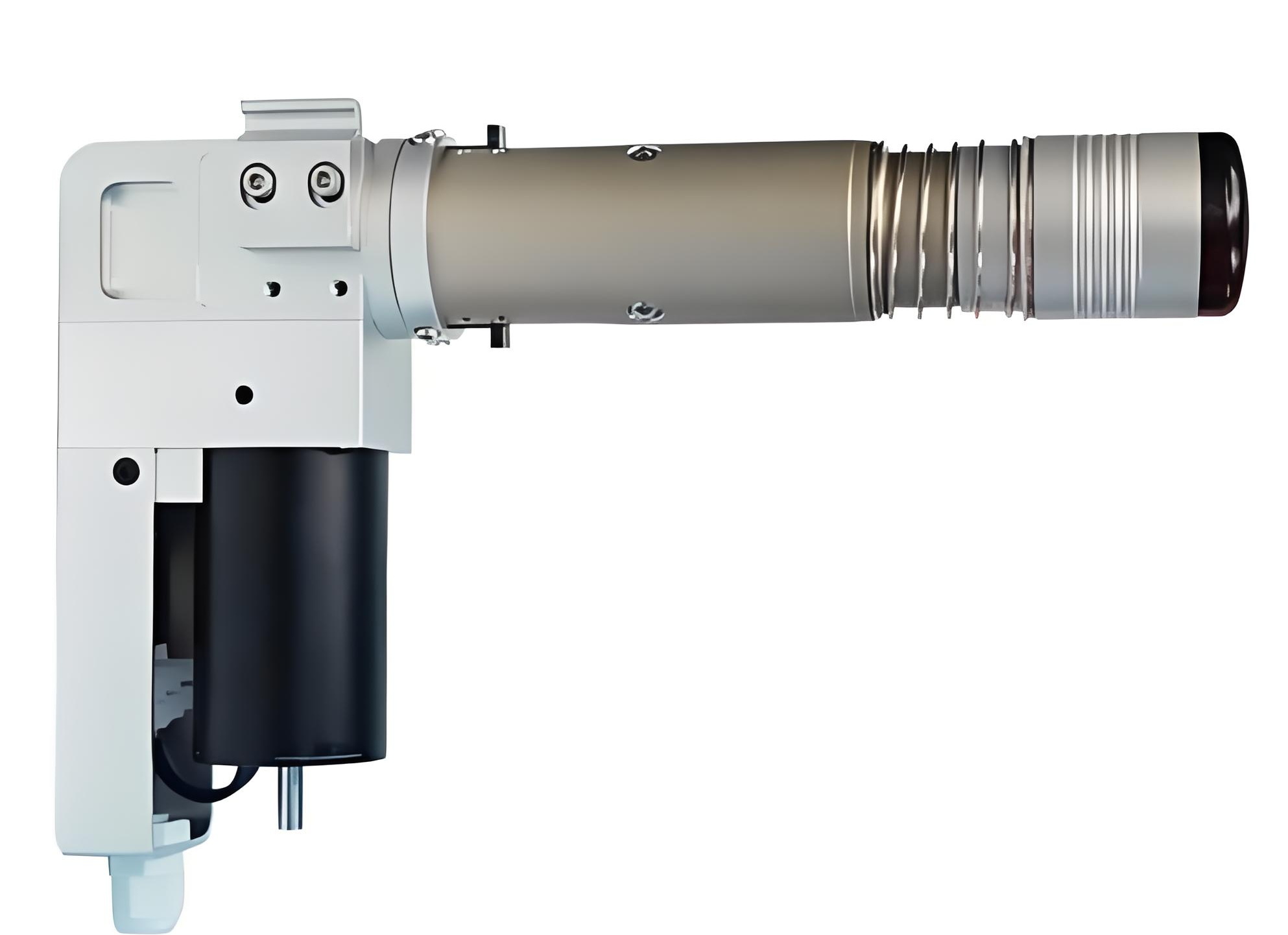

Optional oscillating knife: cutting KT board, PVC (up to 7mm thick), leather, single layer cloth and other soft materials.

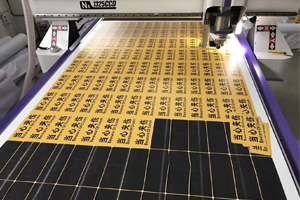

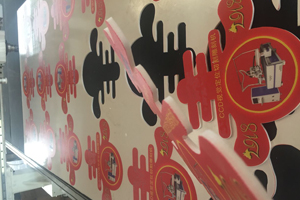

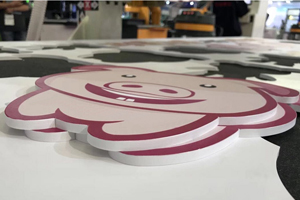

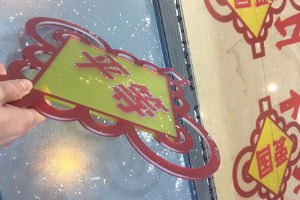

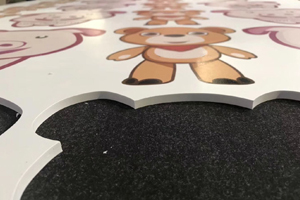

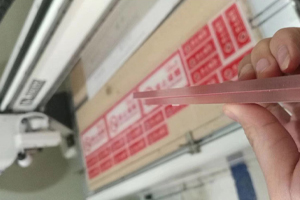

Applications:









Model

ES-1325CCD

ES-Z1325CCD

Table Size

1440x2630mm

Working Size

1300x2500x170mm

Feeding Height

Max.150mm

Spindle Power

Water cooling 3KW

Water cooling 3KW+Oscillating knife

Speed RPM

0-40000rpm

Mark Recognition

CCD Camera

Driver

XY AC servo, Z-axis 400W AC servo

A-axis 200W AC servo

Control system

LeYu or Xinduowei

Media mounting mode

Vacuun bed+T-slot 2in1

Vacuum Pump power

7.5kw air cooled

Tool Diameter

Ø3.175,Ø4,Ø6,Ø8

Mechanical Structure

Square Steel Pipe

Transmission

Z-Screw direct; X,Y-grinding rack

+ planetary gearbox

Guide Ways

Imported Linear Guide

Repositioning Accuracy

<0.03mm/300mm

MAX Idle Speed

90m/min

File Transfer

USB

File Format

Stanndard G Code or HPGL

Dust Extractor

Optional

Power Supply

AC220V or 380V,50-60Hz

External Dimensions

2000x3100x1650mm

Packing Dimensions

2250x3200x1700mm

Net/Gross Weight

Approx.1000kg/1200kg

Optional working sizes

130cmx130cm,130cmx180cm,150cmx300cm,

200cmx400cm
