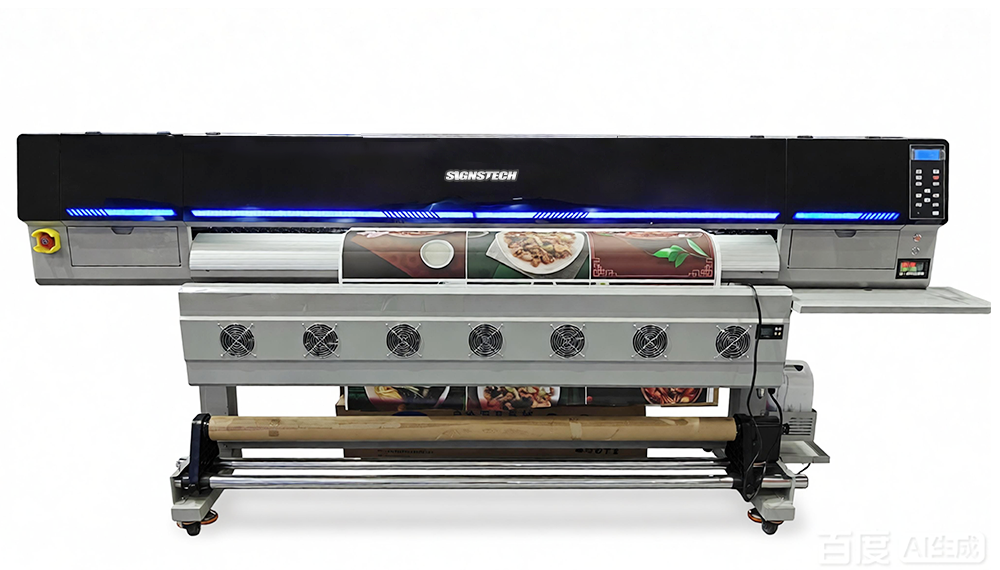

Model |
LT-1602E/1902E LT-1603E/1903E UV |
|
Ink |
water-based/ Eco Solvent/UV Ink |
|

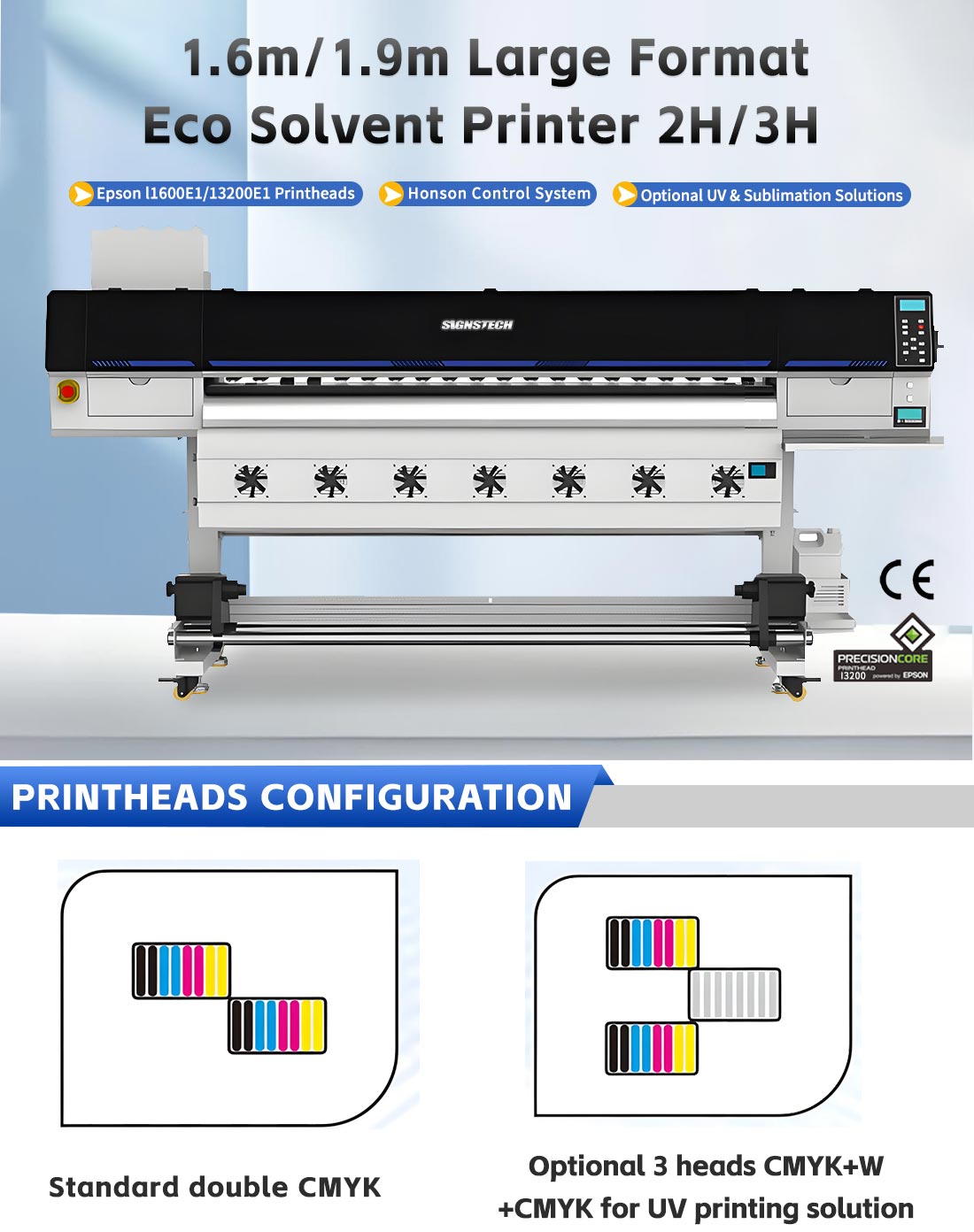

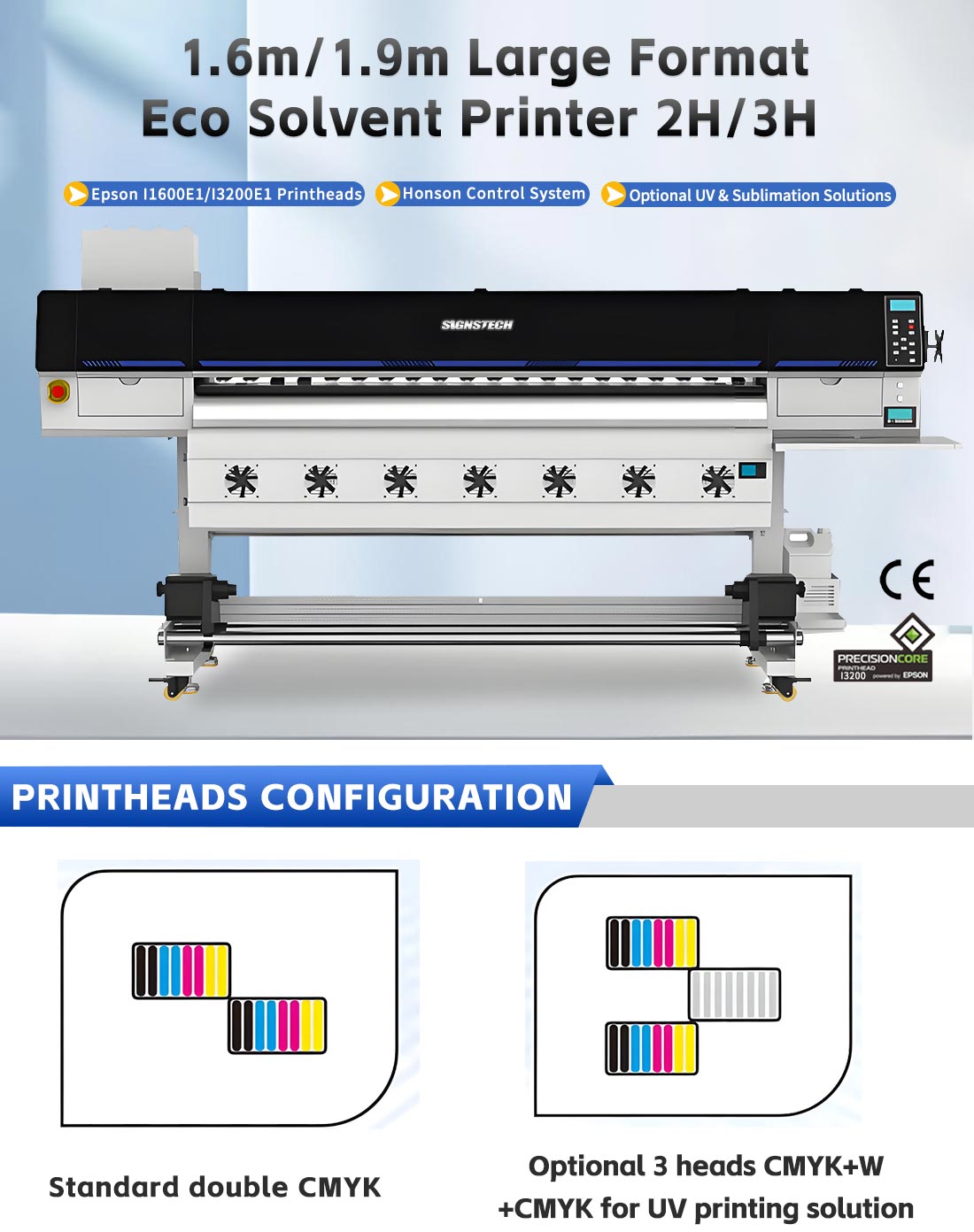

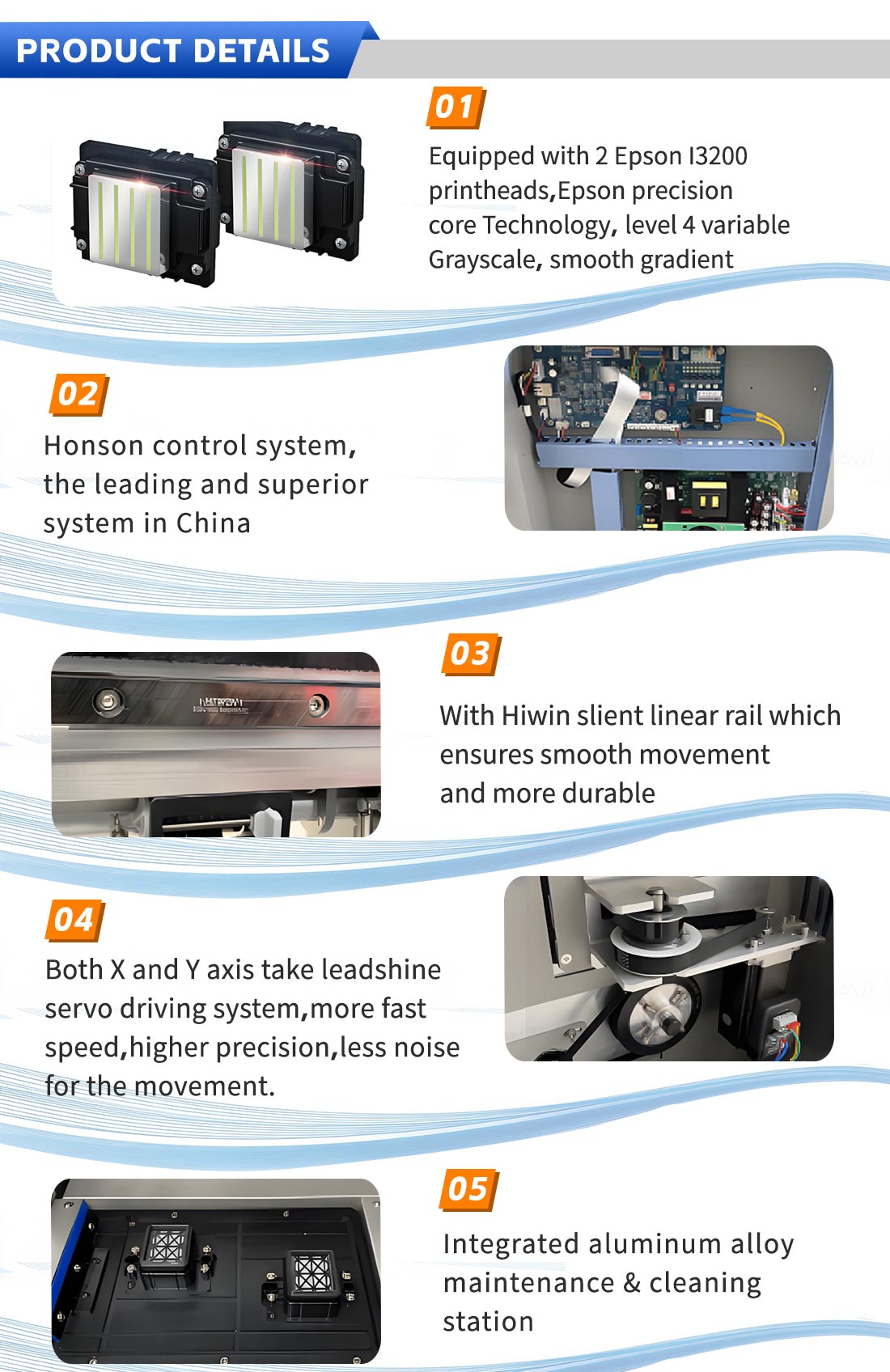

Printhead Type |
13200 2pcs 3200-U1 3pcs |
|
Printing Speed |
4 pass 39㎡/h 6pass 7㎡/h(C+W+C) |
|
Print Width |
1600MM/1900MM |
|
Net Weight |
230k/250kg |
|
Gross Weight |
280kg/310kg |
|
Temperature |
20-28°c , Humidity:38-65°c |
|
Power |
Pre-heating 150W，Platform Heating 400W，Post-heating 150W, Equipment 750W，Dryer 4500W |
|
Computer Config. |
Win7 And Above, 64 Bits; Cpu I5 Processor And Above, 8g Memory，asus Motherboard 3.0ghz; C Disk With SSD 120g,Attached Disk 1tb |
|

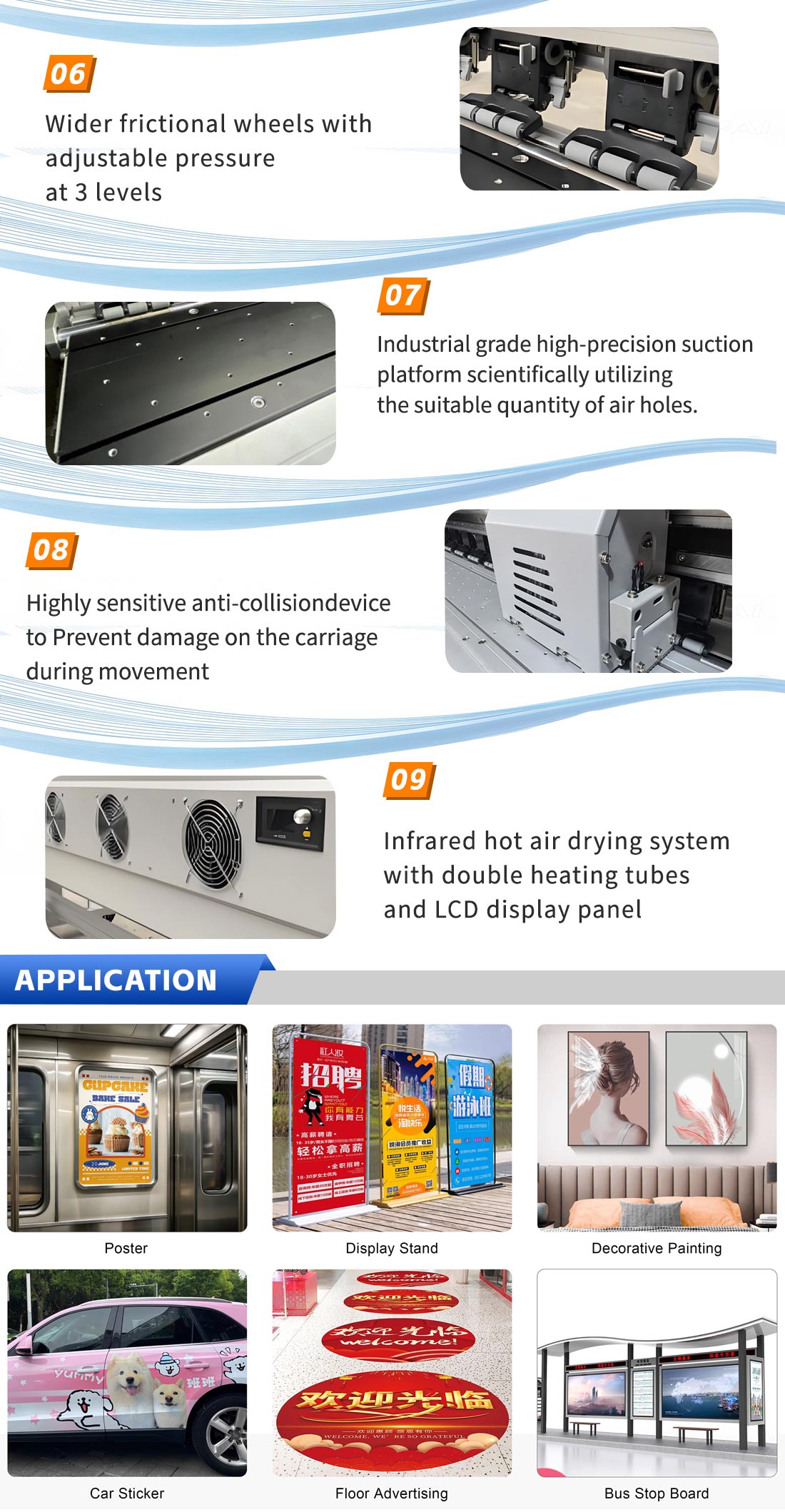

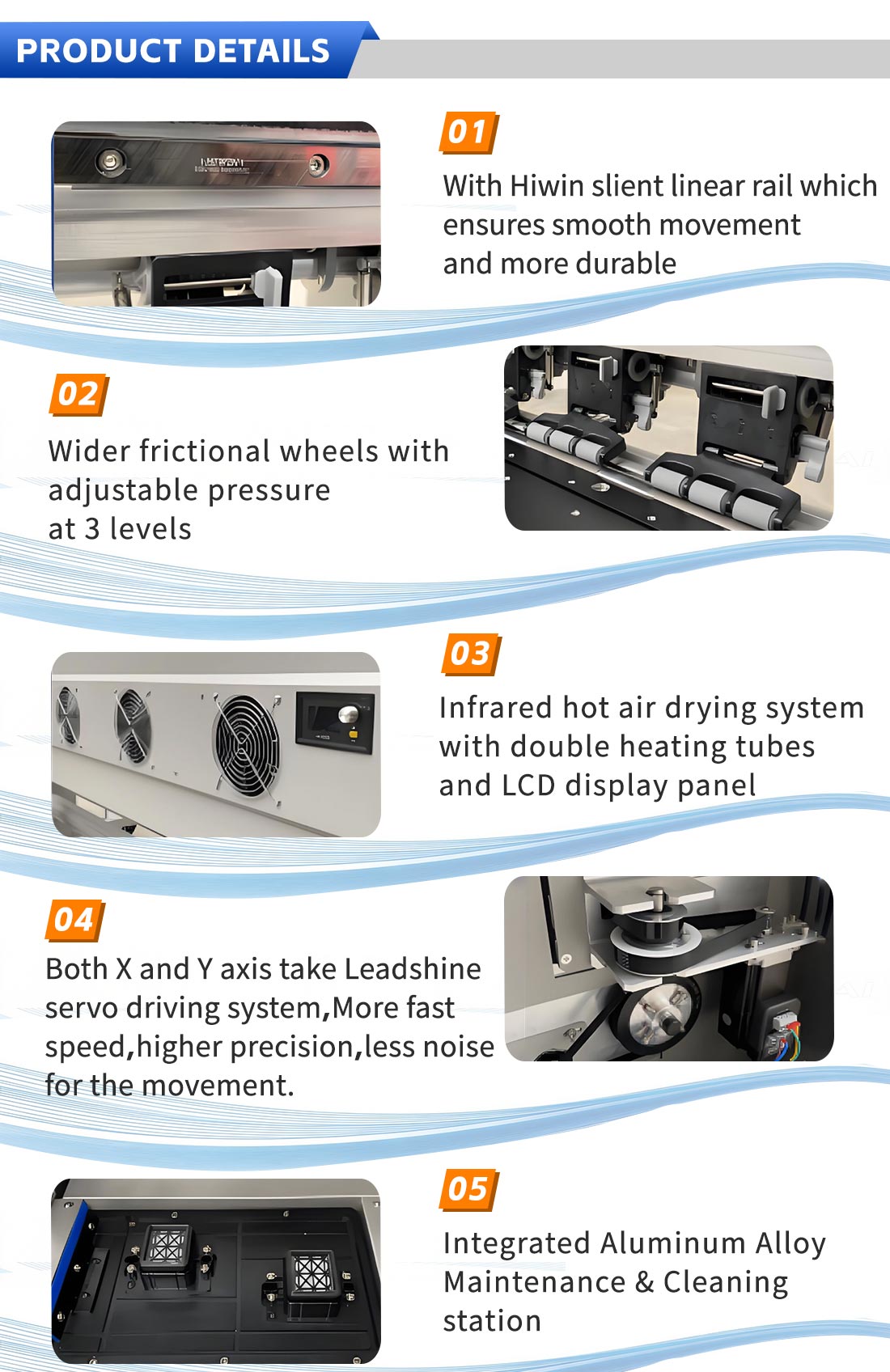

Heating System |
Submerged Microcomputer Intelligent Front/Rear Heating Control System |
|
Software |
RlIN （Maintop/Photoprint-Optional） |
|
Package Size |
1602E-2840mm(L)x790mm(W)x740mm (H)) 1902E-3140mm(L)x790mm(W)x740mm (H)) |
