Model |
TLD-3202 |
TLD-3204 |
|
Print Width |
3200mm 10.5ft |
|
|
Ink |
Eco Solvent Ink/Water Based Ink |
|
|
Printhead Type |
I3200 2pcs |
I3200 4pcs |
|
Printing Speed |
4pass 50㎡/h |
4pass 97㎡/h |
|
Media Type |
Flex Banner, PP, Vinyl, Pvc Film, PET Film, Fabric, One Way Vision, Canvas, Window sticker, Mesh Etc |
|
| Printhead Cleaning | Auatomatic,flash,Moisturized | |
|
Software |
RIIN (Optional Maintop/Flexi) |
|
|
Computer Config |
Win7 And Above,64 Bits: Cpu 15 Processor And Above, 8g Memory. |
|
| Port | Ethernet 1000M | |
|
Heating System |
Front-Middle-Post platform Heating with digital control |
|
|
Drying system |
Fans plus infrared heating | |
|
Weight |
Net 520kg, Gross 600kg |
|
|

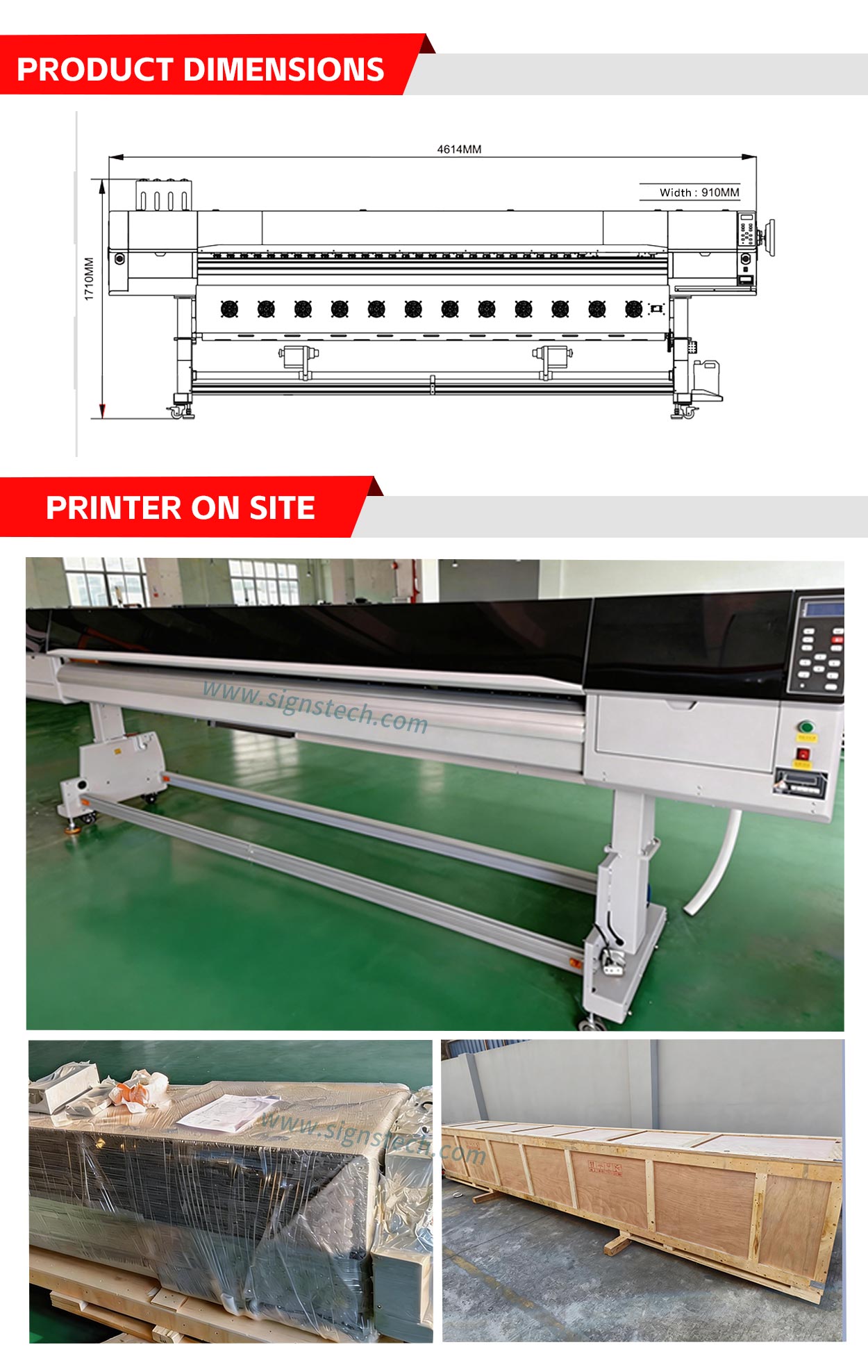

Package Size |
5264mm(L)x758mm(W) x837mm(H) |
|
| Voltage | AC220V/110V 50/60HZ Single Phase | |
|
Power |
Pre-heating 300W, Platform Heating 850W,Post-heating 300W, Printing 1000W,Dryer 6500W |
|
