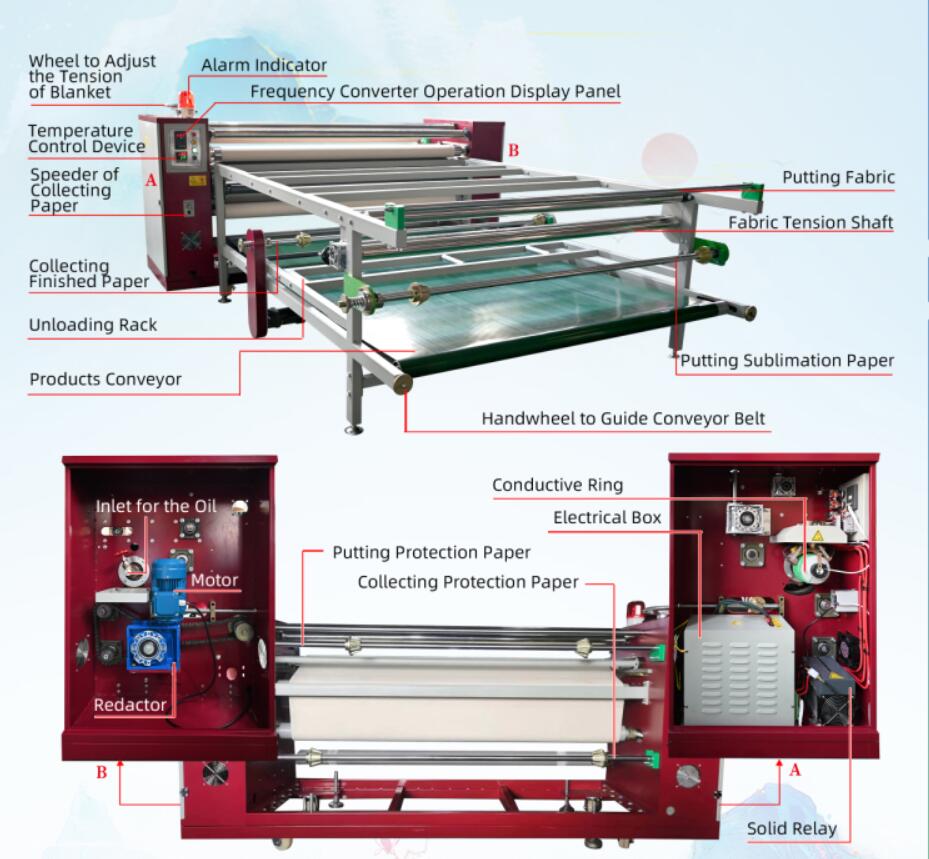

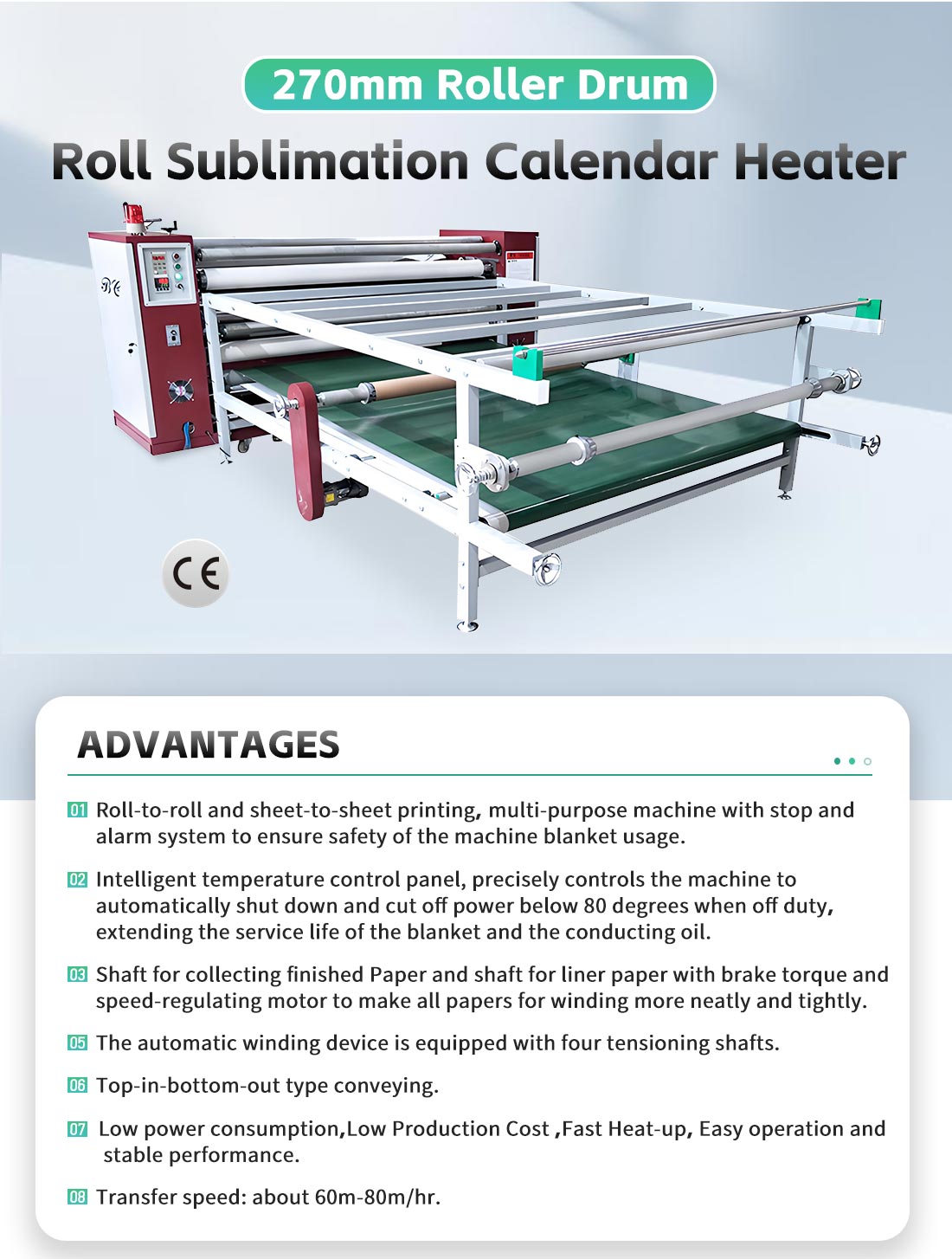

Roll-to-roll and sheet-to-sheet printing, multi-purpose machine with stop and alarm system to ensure safety of the machine blanket usage.

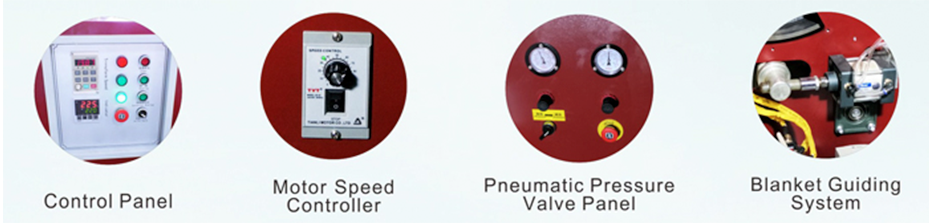

Intelligent temperature control panel, precisely controls the machine to automatically shut down and cut off power below 80 degrees when off duty, extending the service life of the blanket and the conducting oil.
Shaft for collecting finished Paper and shaft for liner paper with brake torque and speed-regulating motor to make all papers for winding more neatly and tightly.
The automatic winding device is equipped with four tensioning shafts.
Top-in-bottom-out type conveying.
Low power consumption,Low Production Cost ,Fast Heat-up, Easy operation and stable performance.
Transfer speed: about 60m-80m/hr.
|

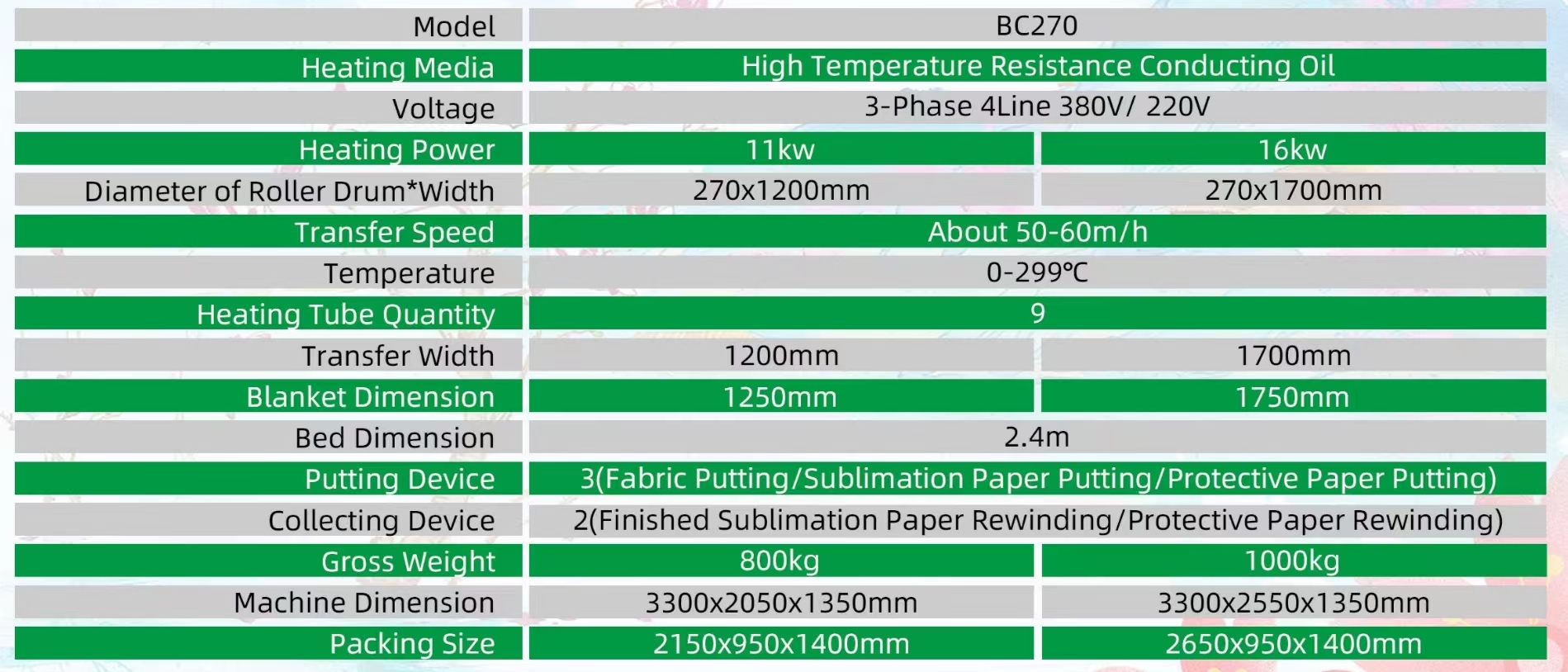

Model |
BC270 |
|
|
Heating Media |
High Temperature Resistance Conducting Oil |
|
|
Voltage |
3-Phase 4Line 380V/220V |
|
|
Heating Power |
11kw |
16kw |
|
Diameter of Roller Drum |
270mm |
270mm |
|
Transfer speed |
About 50-60m/h |
|
|
Temperature |
0-299°C |
|
|
Heating Tube Quantity |
9 |
|
|
Transfer Width |
1200mm |
1700mm |
|
Blanket Dimension |
1250mm |
1750mm |
|
Bed Length |
2.4m |
|
|
Putting shaft |
3pcs (Fabric Putting/Sublimation Paper Putting/Protective Paper Putting) |
|
|
Collecting shaft |
2pcs (Finished Sublimation Paper Rewinding/Protective Paper Rewinding) |
|
|
Gross Weight |
800kg |
1000kg |
|
Machine Dimension |
3300x2050x1350mm |
3300x2550x1350mm |
|
Packing Size |
2150x950x1400mm |
2650x950x1400mm |
