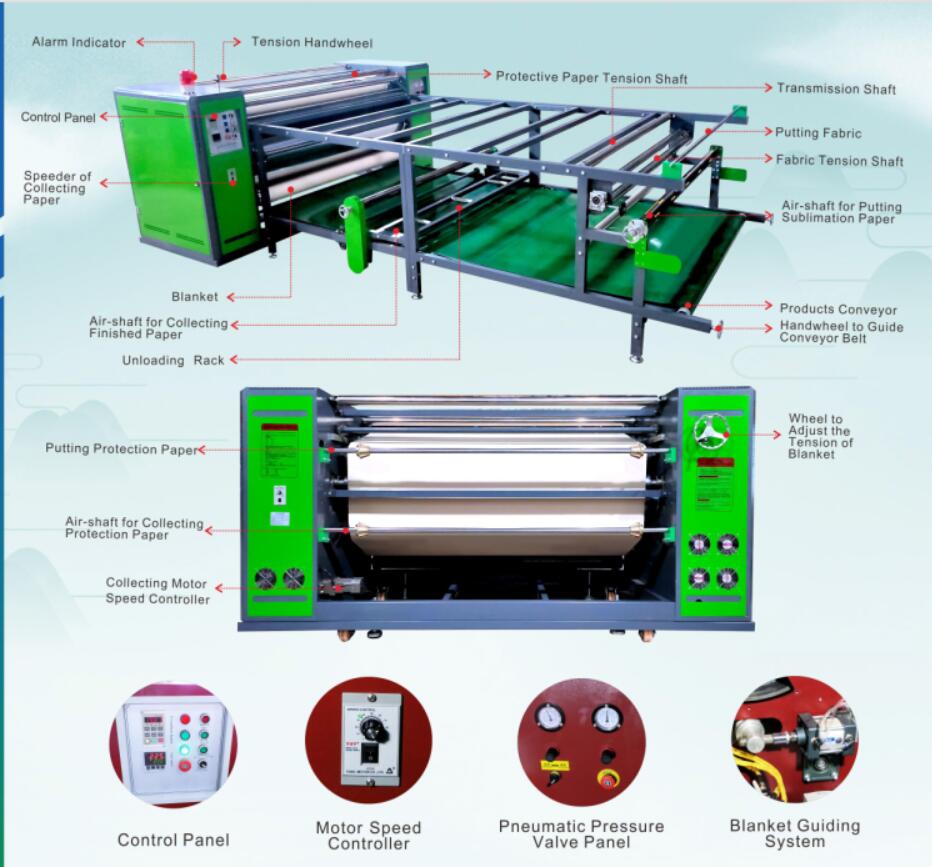

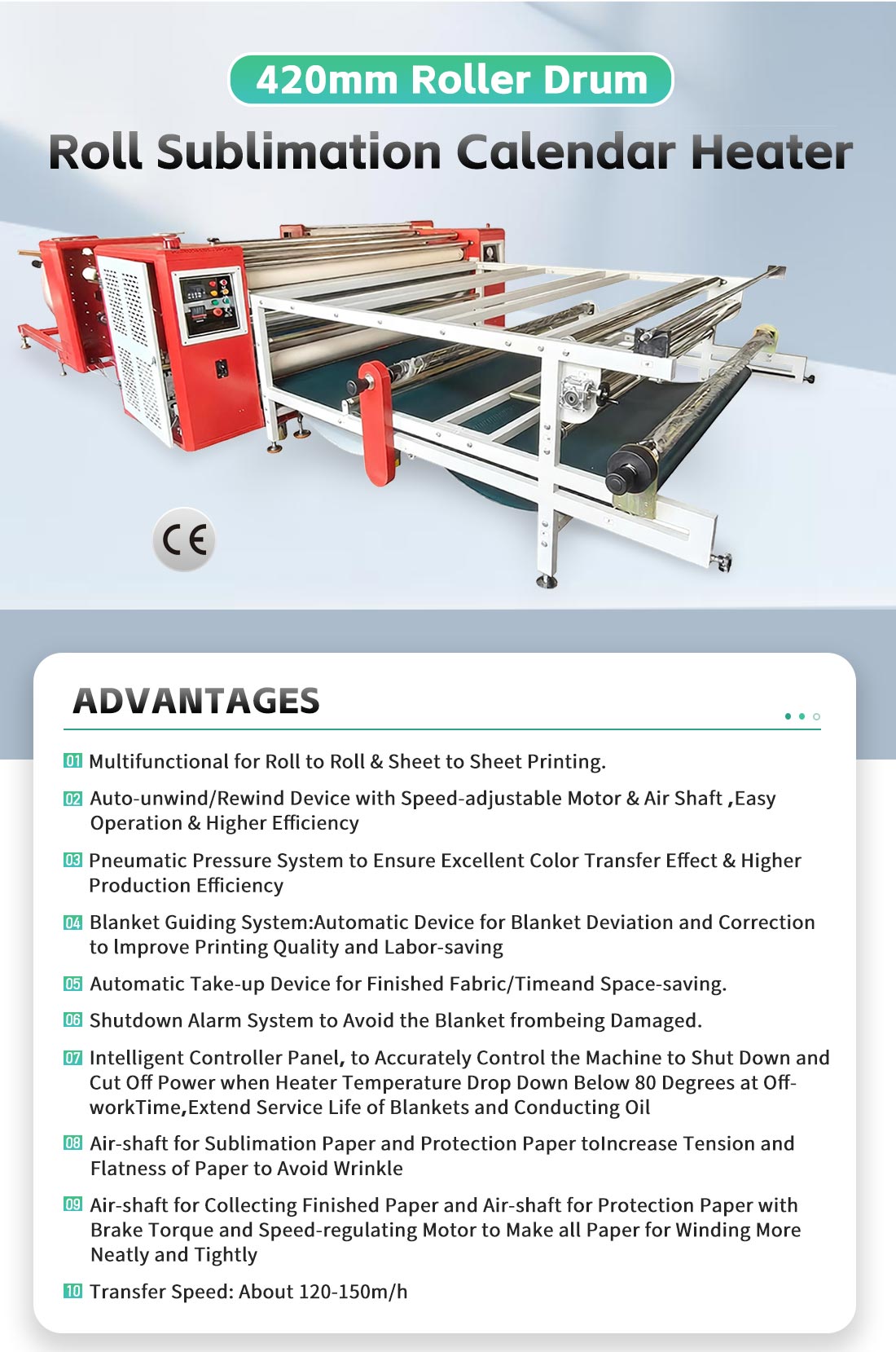

1. Multifunctional for Roll to Roll & Sheet to Sheet Printing
2. Auto-unwind/Rewind Device with Speed-adjustable Motor & Air Shaft , Easy Operation & Higher Efficiency
3. Pneumatic Pressure System to Ensure Excellent Color Transfer Effect & Higher Production Efficiency
4. Blanket Guiding System:Automatic Device for Blanket Deviation and Correction to lmprove Printing Quality and Labor-saving
5. Automatic Take-up Device for Finished Fabric/Timeand Space-saving
6. Shutdown Alarm System to Avoid the Blanket frombeing Damaged
7. Intelligent Controller Panel, to Accurately Control the Machine to Shut Down and Cut Off Power when Heater Temperature Drop Down Below 80
Degrees at Off-workTime,Extend Service Life of Blankets and Conducting Oil
8. Air-shaft for Sublimation Paper and Protection Paper toIncrease Tension and Flatness of Paper to Avoid Wrinkle
9. Air-shaft for Collecting Finished Paper and Air-shaft for Protection Paper with Brake Torque and Speed-regulating Motor to Make all Paper for Winding More Neatly and Tightly
10. Transfer Speed: About 120-150m/h
|

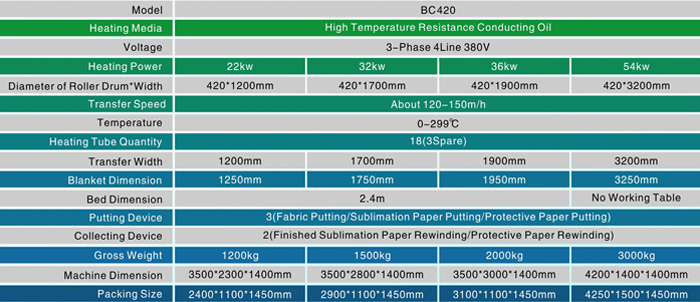

Model |
BC420 |
|||
|
Heating Media |
High Temperature Resistance Conducting oil |
|||
|
Voltage |
3-Phase 4Line 380V |
|||
|
Heating Power |
22kw |
32kw |
36kw |
54kw |
|
Dia of Roller Drum*Width |
420mm*1200mm |
420mm*1700mm |
420mm*1900mm |
420mm*3200mm |
|
Transier Speed |
About 120-150m/h |
|||
|
Temperature |
0-299℃ |
|||
|
Heating Tube Quantity |
18(3Spare) |
|||
|
Transfer Width |
1200mm |
1700mm |
1900mm |
3200mm |
|
Blanket Dimension |
1250mm |
1750mm |
1950mm |
3250mm |
|
Bed Length |
2.4m |
No Working Table |
||
|
Putting shaft |
3pcs (Fabric Putting/Sublimation Paper Putting/Protective Paper Putting) |
|||
|
Collecting shaft |
2pcs (Finished Sublimation Paper Rewinding/Protective Paper Rewinding) |
|||
|
Transfer Width |
1200kg |
1500kg |
2000kg |
3000Kg |
|
Machine Dimension(mm) |
3500*2300*1400 |
3500*2800*1400 |
3500*3000*1400 |
4200*1400*1400 |
|
Packing Size(mm) |
2400*1100-1450 |
2900*1100*1450 |
3100*1100*1450 |
4250*1500*1450 |
