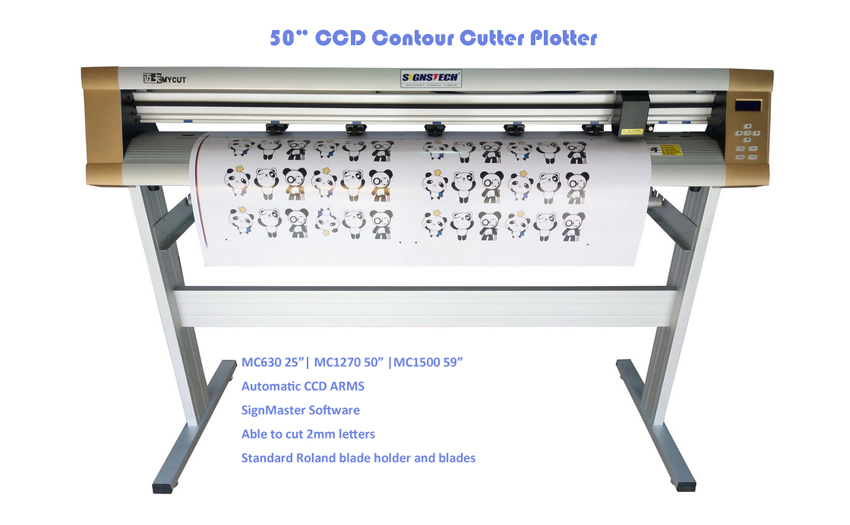

1270mm 50" CCD Contour Cutter Plotter
Model: MC-1270
Price:
- Features
- Parameters
- Video
- Download
|
Solution for: Signs for shop windows, cars and vans. Cutting material for heat pressing logos and slogans onto T-Shirts. In house signs and graphic designs making of arts, crafts and labels, suitable Vinyl Sign or T-Shirt business die cutting.* With CCD scanning system, much better than the regular red dot tracking, working well with light reflecting materials * 32-bit CPU with ARM Cortex-M3,256M memory, * Integrated Steel sting roller ensures cutting up to 5meters without deviation of paper feeding. * High precision cutting, is able to cut 2mm letters without distortion. * Max 800mm/s cutting speed. * Multi-marks automatic contour cutting function, is able to cut 20m long. * With famous SignMaster software as default, one step to generate profile, fast and convenient. * Output with USB, Ethernet port, accepts direct USB flash stick plug. * User-friendly control panel, with 2.4'' LCD and 9 back blue light control buttons, comfortable handle. * Able to cut advertising class reflective film. *optional 1000g cutting force to cut 3M diamond class. |
|

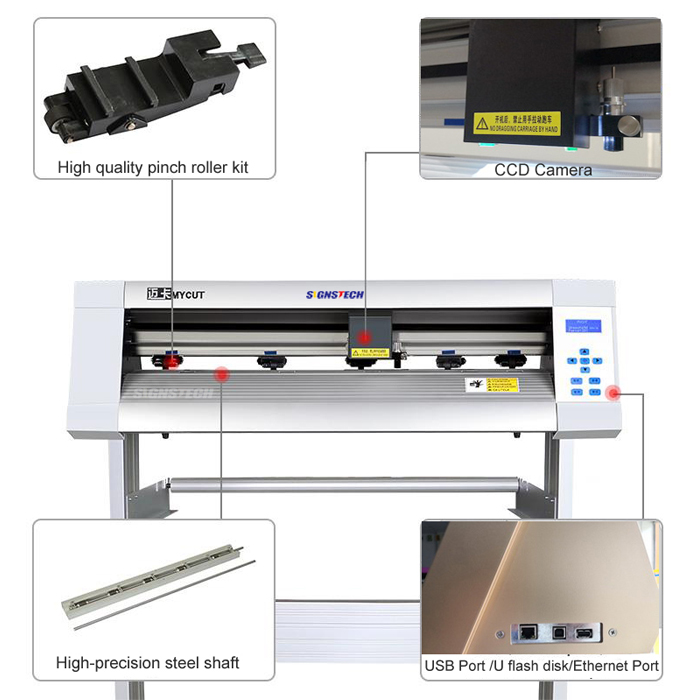

Details: |
|
 |

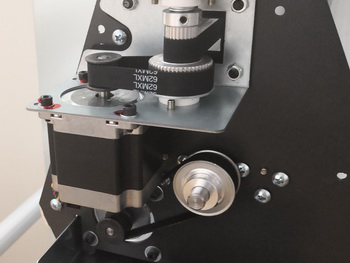

High capability micro-step motor for X and Y axis driving, supplying enough power with high speed. |
 |

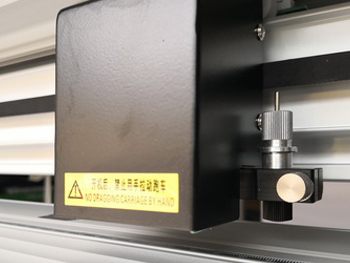

The first domestic integrated carriage design, Rigid structure with strong torsion, Making sure the three axes are perpendicular. |
 |

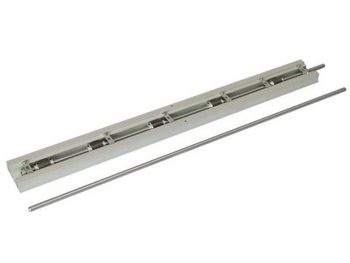

Imported integrated steel sting roller, 5 meters feeding without deviation |
 |

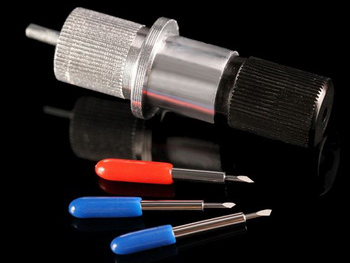

Standard Roland blade holder. Carbide plotter blades |
 |
Included professional plotter software SignMaster, simple and powerful |

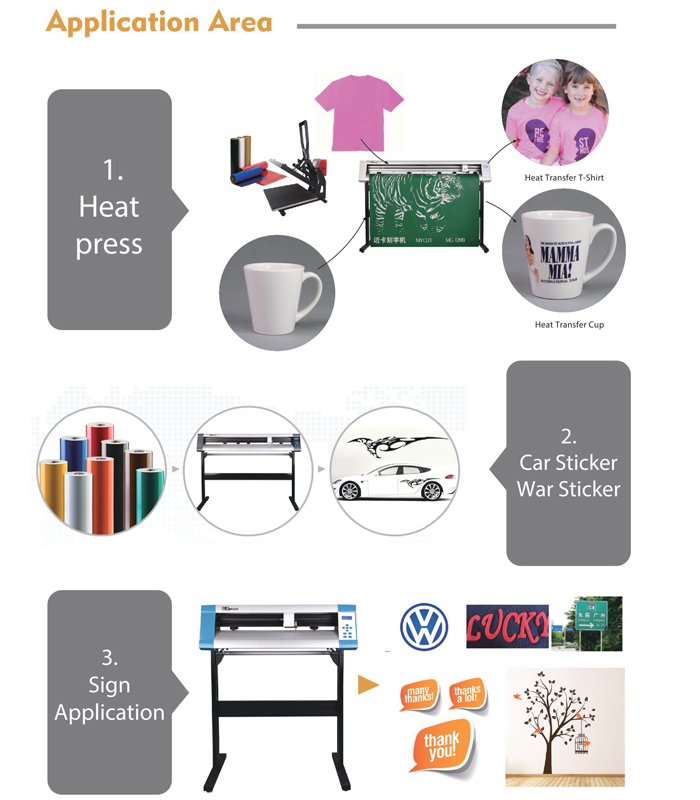

Application: |
|
| Model | MC630 (25'') | MC1270(50'') | MC1500(59'') |
| Media Way | Desk cutter | Floor Stand | Floor Stand |
| Main Board | High-performance & intelligent ARM 32 CPU; 256MB memory | ||
| Driver | High speed stepping motor, micro-step driver | ||
| Max Paper Feed Width | 730mm | 1400mm | 1600mm |
| Max Cutting Width | 630mm | 1270mm | 1500mm |
| Max Cutting Speed | 800mm/s | ||
| Cutting Force | 0-500g(digital adjustment) *optional1000g | ||
| Mechanical Precision | 0.05mm | ||
| Repeatable Precision | < +-0.1mm | ||
| Plotter Instruction | DM-PL/HP-GL Automatic Identification | ||
| Interfaces | USB / Ethernet port, USB flash stick plug | ||
| Power Supply | AC110V /220V±10%, 50Hz/60Hz | ||
| Laser point Positioning | ARMS(Automatic Registration marks system) CCD | ||
| Noise at Work | ≤50 DB | ||
| Support software | Artcut,coreldraw,AI,Flexi,Signmaster | ||
| External Dimension | 1045mmx330mmx390mm | 1590mm*330mm*390mm | 1890*330*390mm |
| Shipping Weight | 23kgs | 33kgs | 42kgs |
| Accessories in Package | Power cordx1, manual CDx1,blade holderx1,bladex3,pen holderx1,USB cablex1,Ethernet cablex1, SignMaster software x1 ,assembly manualx1 | ||
