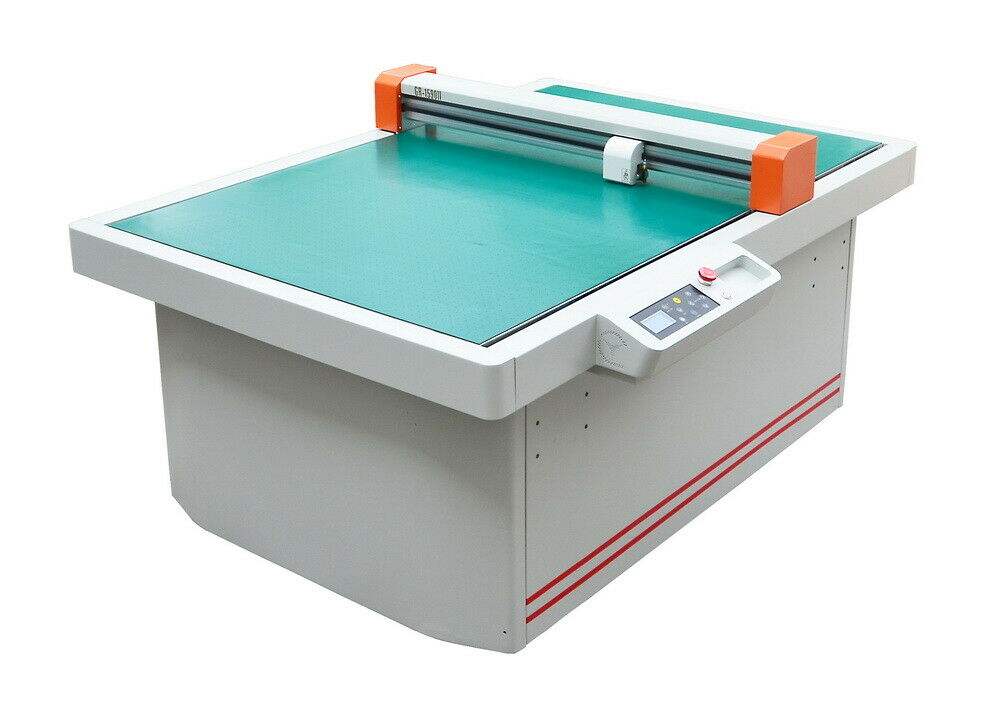

FlatBed Contour Cutter Plotter 60cmx90cm

61cmx90cm FlatBed Cutter Plotter

Model: GR-6090II

Price:

Remarks:

61cmx90cm,Economic version,cutting depth adjustable for kiss cut,Max cutting thickness 1mm

Features
Parameters
Video
Download

Product Description:

The new generation flatbed machine for pattern proofing, graphic contour cutting and small batches of personalized custom production. It provides a perfect solution suitable for cutting all sorts of hard and soft film material without template.

It is widely used in the production of clothing and footwear; high-intensity reflective films for traffic signs; protective film for automotive, cell phone and other industrial products; films for window displays and signs; heavy paper packaging; vinyl sticker and logo magnet; protective rubber films for sandblasting; photographic papers and more.

New features include USB file transmission, and a one-click barcode reading functionality

Features:

1.Advanced system design and hardware configuration improves work efficiency and production capacity.

2.All aluminum frame structure with vacuum hold-down table is designed for cutting light and thin materials (can cut materials 0.03-1mm in thickness);

3.Industrial servo motors with ultra-quiet cutting system is equipped with a self-adjusting blade system that cuts in accurate depth even when material is uneven,meeting the your most demanding cutting need.

4.Superior optical registration system with one-click barcode reading function facilitates many tasks with one simple click;

5.With SignWorkPro plug in, an embedded program in CorelDraw or Adobe Illustrators is used to output cutting task via its USB port.

6.The one-click install print driver for USB print output is compatible with other print-capable CAD software. This print driver is compatible with WINDOWS32/64 bit.

7.It comes with a blade compensation feature to ensure you get the perfect cut with any software output.

Barcode sample generated by SIGNWORKPRO

Characters：

Max pressure 5.8N

600g

Cutting

speed 600mm/s

Contour profiling/Automatic correction

One -click to read barcode

File transfer by flash memory

Full cut /Half cut function

With blade compensation itself

Super ARMS

Application:

Model	GR-6090II
Max. cutting width	610*900mm
Cutting depth	0.03-1.5mm
Applicable media	Soft and medium-rigidity medias
Max. cutting speed	600mm/s
Cutting pressure	600g/5.8N in 8 steps
Mechanical precision	0.025mm
Kisscut	YES
Cutting pressure setup	Adjustable in every 1g
Blade diameters	Ø0.9mm Ø1.5mm Ø2.0mm
Blade angles	35° 45° 60°
Drive	AC Servo
Port in standard	RS-232/USB2.0 flash memory
Memory Buffer	2M
Cutter holder/pen holder	1 for each
File format	HG-GL / PLT
Power input	110V-220V AC 50/60Hz
Power consumption	620w
Weight	160Kg
IOS	Windows10/8/7 /xp
CAM software	SignWorkPro
CAD output plug-in	CADtoplotpro
Registration Marks Recognition	ARMS with red laser sensor
Method to fix material	Table top vacuum
Machine size	10801200980mm/90kg
