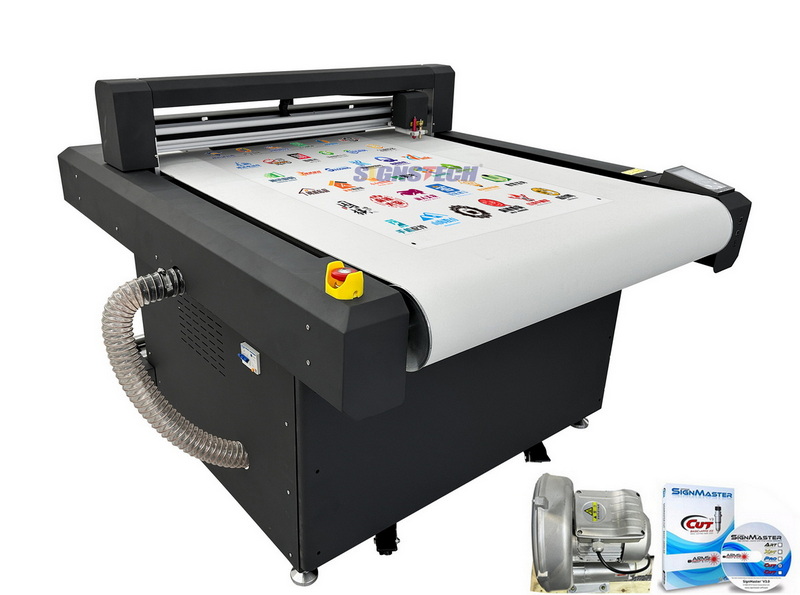

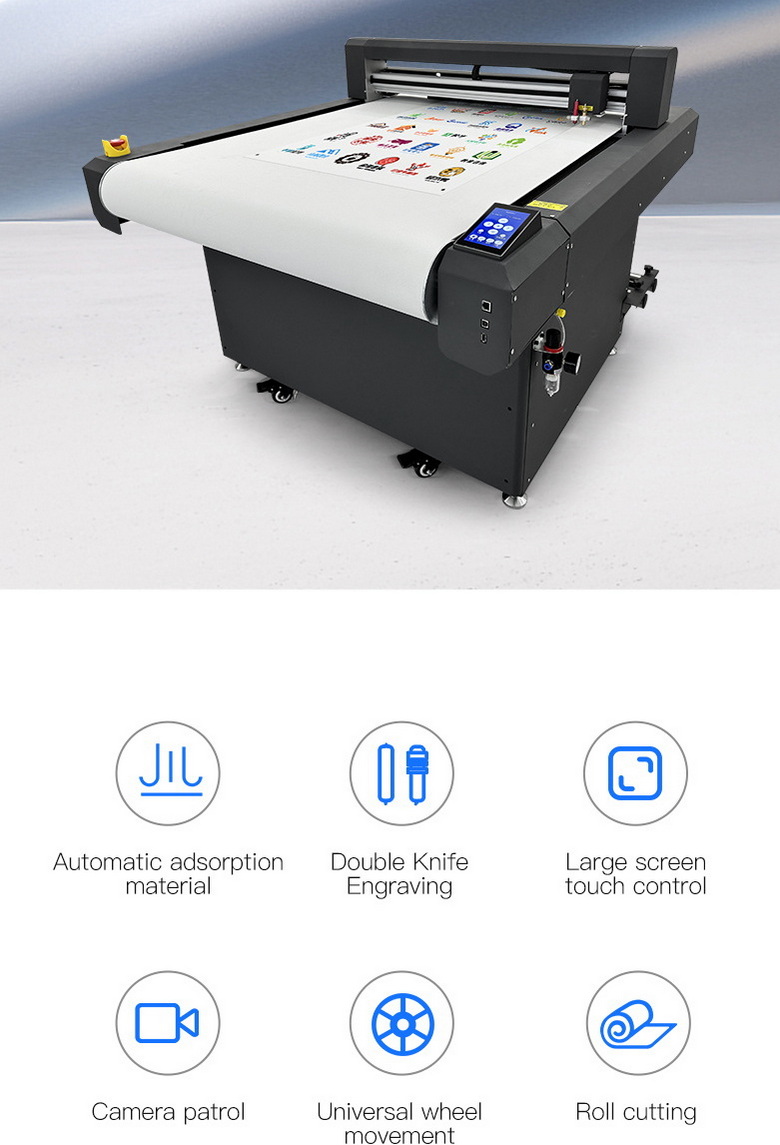

60cmx60cm Flatbed Cutter Plotter
Model: PA6060C
Price:
$3700.00
$3900.00
- Features
- Parameters
- Video
- Download
Maximum 600mmx600mm(23.6"x23.6"),Auto feeding bed,both full cutting and kiss cutting functions.
Dual-head Cutting and creasing in one step,suitable for paper box making.
Full Touchscreen Intelligent touchscreen for easy operation
Automatic materia absorption Equipped with an vacuum pump for strong suction power
Camera CCD automatic contour cutting ,Automatically detects registration marks and performs contour cutting
Multiple interfaces Supports various types of port transmission
Widely application for DTF UV sticker,PET film,PVC,cardboard, vinyl sticker, film, fiber Composite material, Paper,PU, plastic board, etc
Dual-head Cutting and creasing in one step,suitable for paper box making.
Full Touchscreen Intelligent touchscreen for easy operation
Automatic materia absorption Equipped with an vacuum pump for strong suction power
Camera CCD automatic contour cutting ,Automatically detects registration marks and performs contour cutting
Multiple interfaces Supports various types of port transmission
Widely application for DTF UV sticker,PET film,PVC,cardboard, vinyl sticker, film, fiber Composite material, Paper,PU, plastic board, etc
| Model | PA6060C |
| Cutting area | 600mm*600mm |
| Speed | 1mm/s~800mm/s |
| Max material thickness | 1.2mm |
| Cutting pressure | 1000g |
| Cutting Materia | PET, PVC, cardboard, vinyl, film, fiber composite materials, Paper, PU, rubber etc. |
| Tool | Cutting and Creasing |
| Contour cut | ARMS, with CCD camera Automatic contour cut |
| Air Vacuum | Yes |
| Auto feeding | Yes |
| Motor | Leadshine® Servo motor |
| Cutting accuracy | ±0.15mm |
| Repeat accuracy | ≦0.05mm |
| Cut the circular diameter | ≧1mm |
| Interface | USB、U-disk、Ethernet |
| Compatible software | SianMaster、Autocad、Coraldraw and Al/plugin |
| Instruction system | HPGL |
| Panel | Multi -language LCD touch panel |
| Transmission part | Import belt |
| Voltage and power | AC 220V± 10%50HZ / 110v± 10% 60HZ 1.1kw |
| Dimensions | 1330mm*990mm*940mm |
| Package Dimensions | 1600mm*1300mm*1300mm,220kg |
