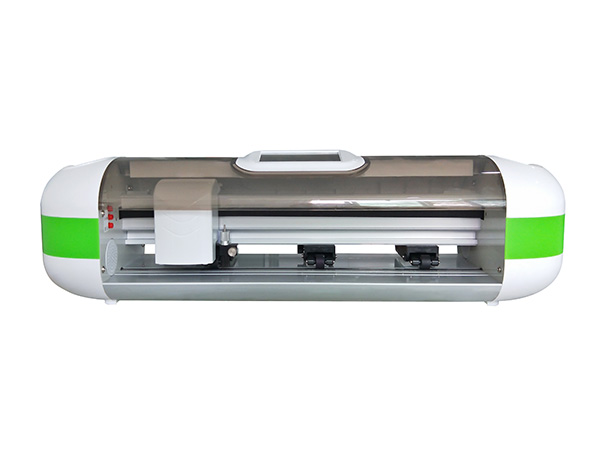

A3 Portable CCD Cutter Plotter
Model: Mini 330
Price:
$339.00
$390.00
- Features
- Parameters
- Video
- Download

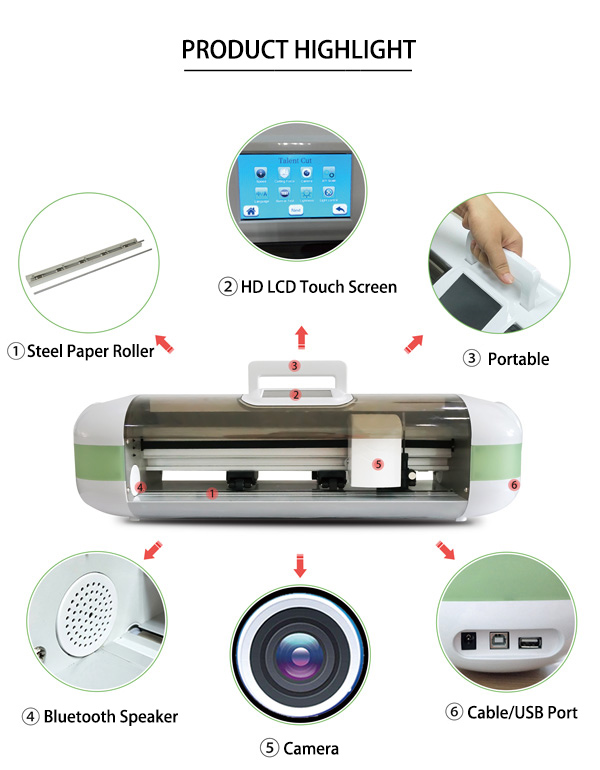

Features:
1. Integrated carriage head board and imported grit roller make it strong and high precision;
1. Integrated carriage head board and imported grit roller make it strong and high precision;
2. With CCD for accurate mark detection on automatic contour cutting, can cut any base color or reflective materials
3. 4.3Inch touch screen provides easy operation;
4. High performance 32-bit processor, ARM Cortex-M3;
5. High accuracy machine structure allows to cut 2mm letters without distortion;
7. Repeat cutting function makes your work more efficiently;
8. Inbuilt bluetooth speaker,enjoy music while working.
9. Low noise, quiet-work motor perfect for home&office use;

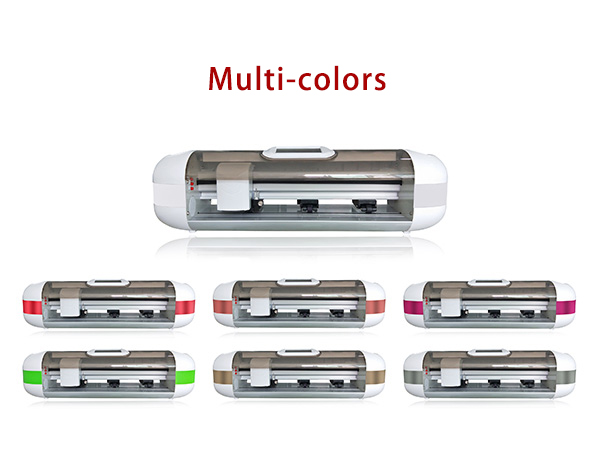

Optional machine color:
Optional machine color:
| Model Number | Mini 330 cutter plotter | |
| Main Board | High-performance & intelligent ARM 32 CPU; 256MB memory | |
| Driver | High speed stepper motor, micro-step driver | |
| Max Paper Feed Width | 430mm | |
| Max Cutting Width | 330mm, Contour cutting Max 290mm | |
| Max Cutting Speed | 800mm/s | |
| Cutting Force | 0-600g | |
| Repeatable Precision | 0.05mm | |
| Plotter Instruction | DM-PL/HP-GL Automatic Identification | |
| Interfaces |
|
|
| Power Supply | AC110V /220V±10%, 50Hz/60Hz | |
| Software | Signmaster, Coreldraw | |
| Noise at Work | ≤50 DB |
