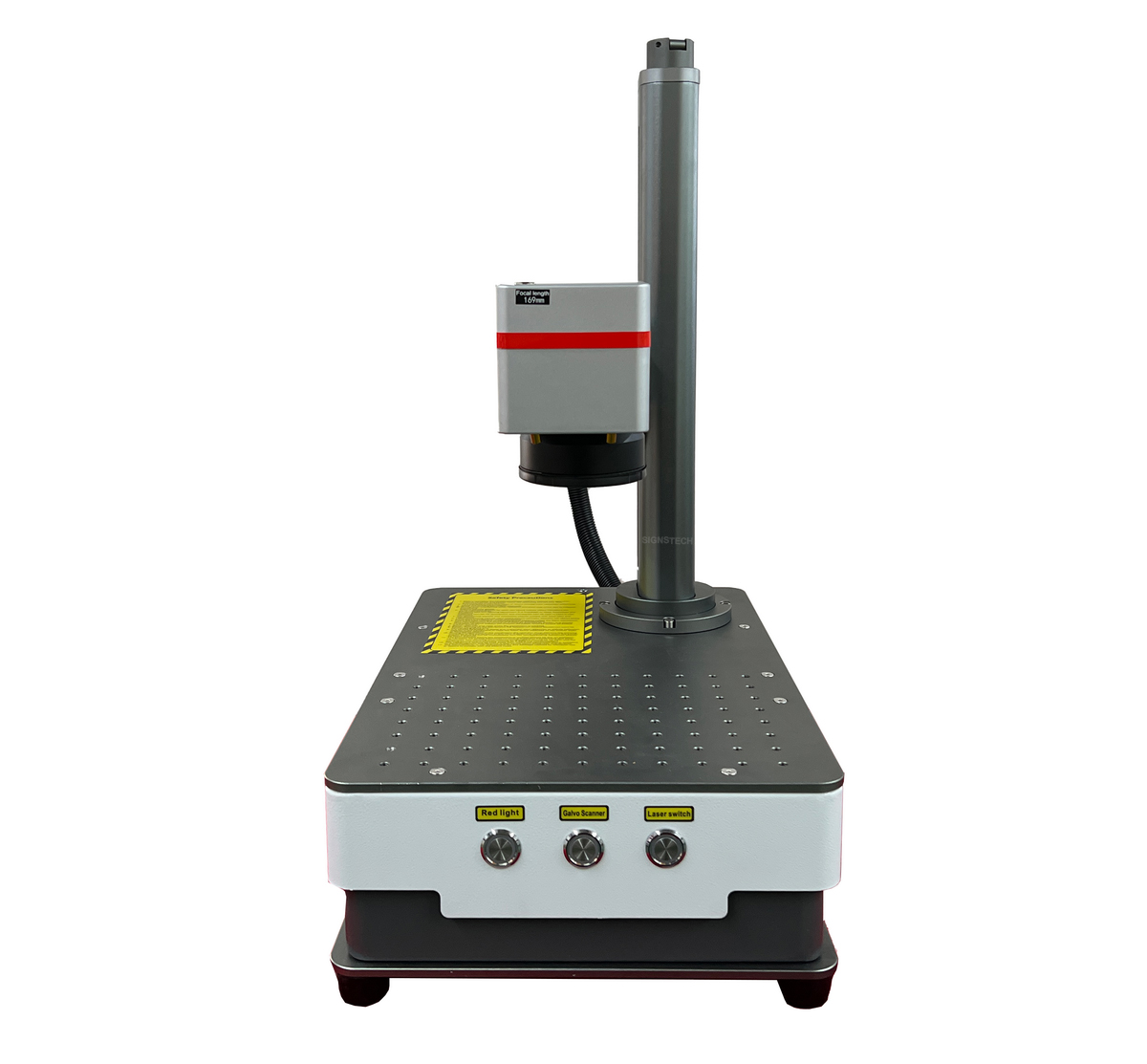

Portable Fiber Laser Marking Machine
Model: FM-11
Price:
- Features
- Parameters
- Video
- Download
Signstech Smart Fiber Laser Marking Machine "Raycus" 30w
Able to mark on all metals such as aluminum, copper, gold and silver and some non-metallic coating materials, especially good at marking high hardness, high melting point and fragile materials.
Applications:

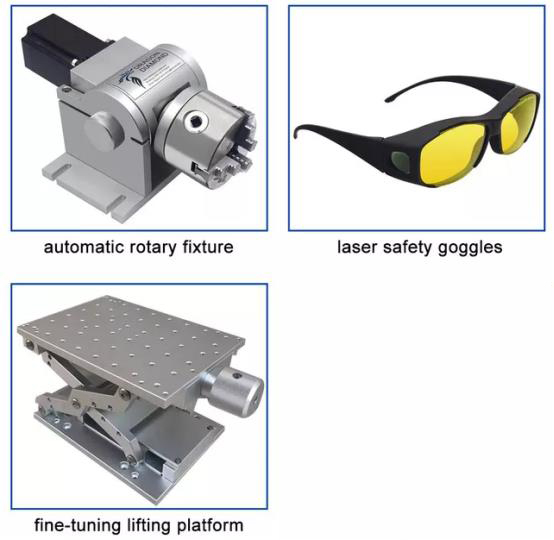

Optional Parts
Product Packing
 |

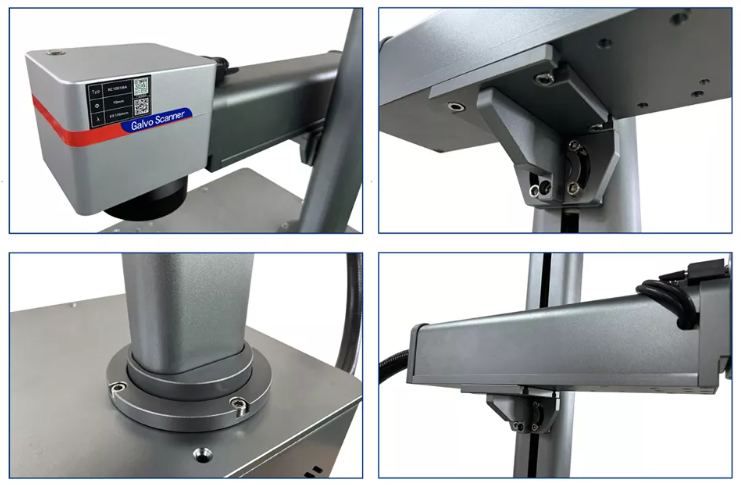

Galvo Scan Head With Dual Red Dots Fast speed digital Galvanometer scanning head,can realize high speed |
|

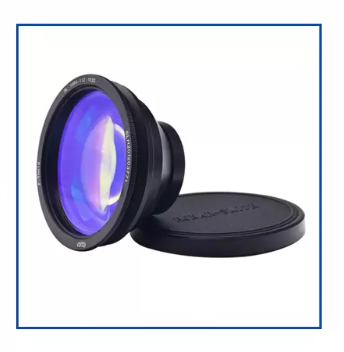

F-theta Scan Lens To further improve the quality of output, With new technology, new material, new craft in the galvanometer scanning system |
 |
 |

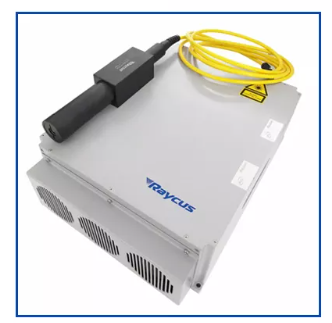

Raycus brand Laser Source Output laser power is stable.Highly increase the machine's anti-reflection ability with ontical isolator , be able to mark on most high reflecive materials |
|
Focal Length The adjustable range of the rocker arm Is within 200mm |
 |
|

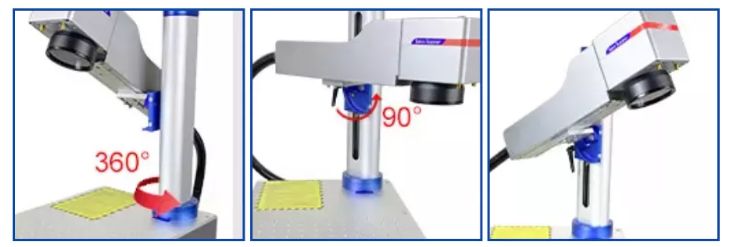

Rotating angle
The horizontal plane can be rotated 360°.Vertically rotatable 90° More flexible, can mark in bigger area and complicated surface |
|
Optional Parts
Product Packing
| Model | FM-11 |
| Power | Raycus QS 30w optional 20w |
| Marking range | 110*110mm |
| Marking depth | ≤0.1mm |
| Repetition frequency | 20KHz-100KHz |
| Laser wavelength | 1065mm |
| Marking speed | ≤2000mm/s |
| Minimum line width | 0.01mm |
| Minimum character | 0.15mm |
| Repeat accuracy | ±0.003mm |
| Cooling system | Air cooling |
| Focusing system | Red light focusing system |
| Controller software | EZCAD |
| Power source | AC110V/220V 50Hz/60Hz |
| Package Weight | 30KG |
| Package Dimensions | 60*40*39 |
