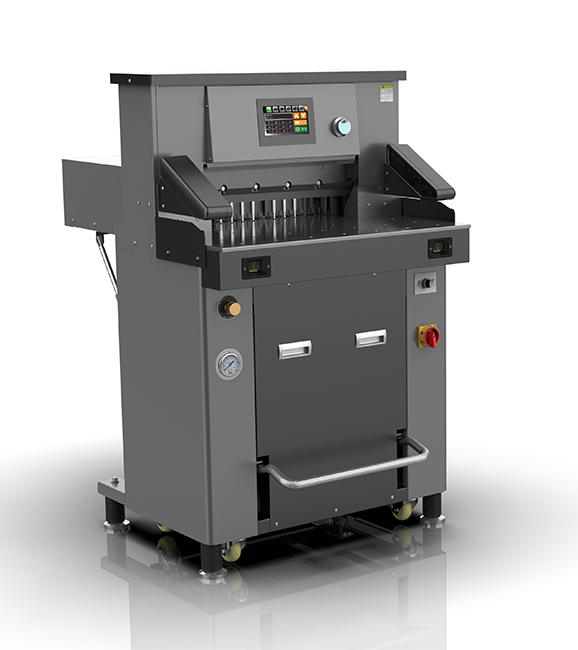

H520TV7 Hydraulic Paper Guillotine
Model: H520TV7
Price:
- Features
- Parameters
- Video
- Download
 |
Infrared safety protection system,.rear cover safety protection, Match with CE standard |
 |
Man-machine interface design,dimensional error compensation,fault auto detection,a number of self-test functions
100 groups*99 knife programmable |
 |
Back platform without groove design, overhanging ball
screw to push paper more stabely
|
 |
Oblique cutting patent, suitable for thick paper cutting
With red light cutting position indicator
|
 |
12mm aviation grade aluminum alloy with floating air bead table, special processing,solid and durable,Anti-scratch |
 |
Push book platform can be folded,convenient transportation |
 |
Dual hydraulic power control system
Taiwan main motor,providing strong power,imported hydraulic valve parts to ensure the quality of the machine,
With paper pressure external regulating mechanism
With quiet working design |
 |
Mechanical pedal for paper clamp ,more convenient for cutting riding nail book, pre-alignment high precision |
| Type |
H520T V7
|
| Max Cutting Size (mm) | 520*520 |
| Max Cutting Thickness (mm) | 80 |
| Min. Cutting Size (mm) | 30 |
| Cutting Accuracy (mm) | ±0.2 |
| Ball table | √ |
| Press Way | Hydraulic |
| +Pedal | |
| Cutting Way | Hydraulic |
| Display | 7" Touch Screen |
| Program | √ |
| Arithmetic | √ |
| Push Motor | Step motor |
| Frequency Conversion Motor | / |
| Power | 220V(110V)±10%, |
| 50Hz(60Hz), | |
| 1950W | |
| Side Table | Optional |
| Machine Size (mm) | 1280*1010*1430 |
| N.W: (Kg) | About 400 |
