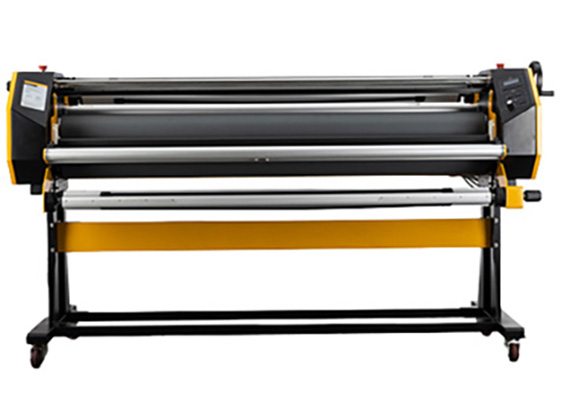

High Temperature Hot Cold Laminator
Model: F1-1700/1600
Price:
- Features
- Parameters
- Video
- Download
Performance
 |

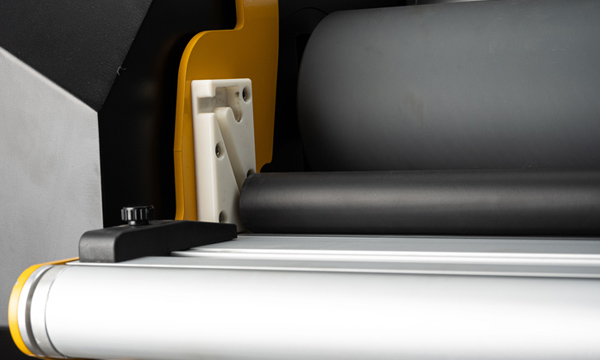

Premium silicon rollers
130mm diameter silicon rollers for heavy duty lamination Top Heated warm lamination for better melt glue and good finishing Options for hot laminating, mounting and encapsulating |
|

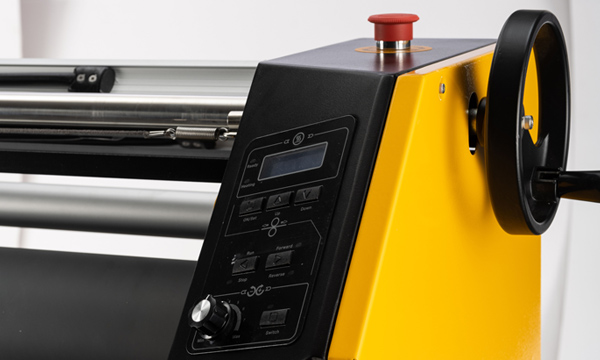

Alloy classic hand crank

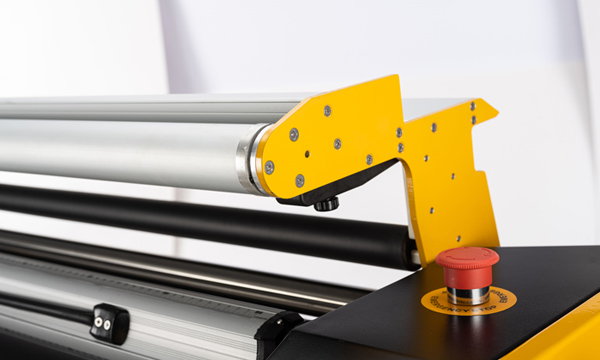

Roller up and down for both sides even pressure Adjusting height for different substrates Extra pressure can be generated by lift down the crank |
 |
 |
Tilted bigger front working table
Easy for loading and unloading materials Anti-tilted configuration for goodfinishing Emergency button for safety operation |
|

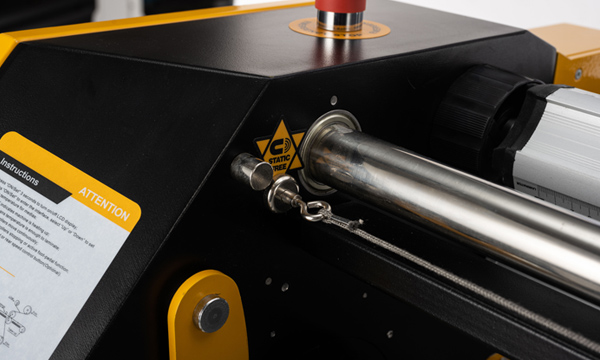

Anti-static string
Anti-static string is efficient way to ease static Upgraded shaft caps and holders can be easily locked and loaded media |
 |
| Parameters | |||
| Model | F1-1600 | F1-1700 | |
| Application | Laminating for indoor/outdoor printings | ||
| Maximum Working width | 1520mm 60" | 1630mm 64" | |
| Rollers Dia | 130mm ,Silicon | ||
| Roller lifting mode | Single side linkage lifting | ||
| Max laminating temperature | 120℃ | ||
| Heating mode | Infrared inner heating | ||
| Laminating mode | Single side | ||
| Laminating speed | 0-25m/min | ||
| Roller lifting height | 23mm | ||
| Roller Pre-heating time | 15-20 min | ||
| Power supply | AC220±10% 50HZ,Optional 110v,60HZ | ||
| Heating power | 2200 W | ||
| Power consumption | 0.8-1kw/h | ||
| Net Weight | 200KG | 220KG | |
| Size | 1850×1140×680 (mm) | 1950×1140×680 (mm) | |
| Pedal | With | ||
