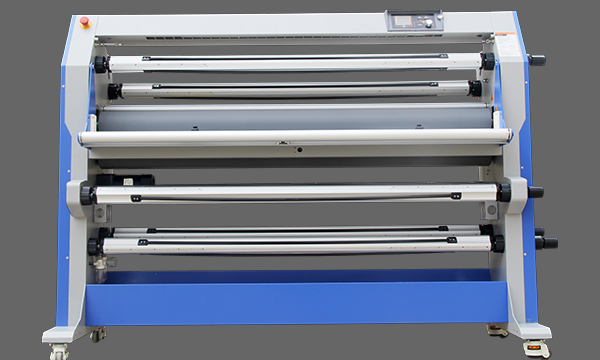

High Speed Auto Roll Laminator
Model: F2-1700
Price:
$3300.00
- Features
- Parameters
- Video
- Download
Performance
 |
Smart Entry System —— Front Panel
Speed, temp, and lamination statistics, easy to check figures of set temp, real temp, and button speed, as well as find your lamination records in 30 days Date and time display Roller up and down |
|
Smart Entry System —— Rear Panel
Run or stop lamination Speed statistics, show button speed, which is convenient to adjust machine speed Active cutter device, easy to use |
 |
 |

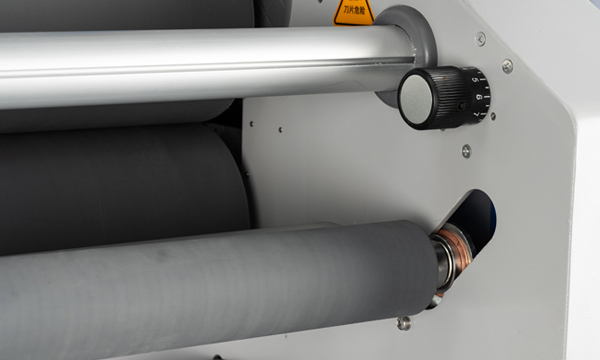

Pneumatic active cutting roller
Active cutters by button on rear panel Fully position adjustable cutters High flexibility silicon cutting roller |
|

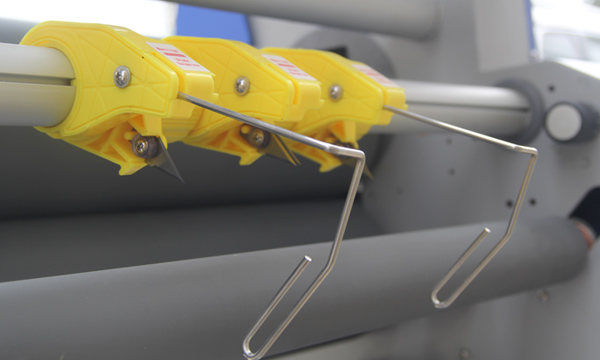

Safety vertical cutter
Equipped with 3 trimmer holders, 2 Single and 1 Double central blade Upgraded with two paddles on 2 single trimmer holders Durable tungsten steel blades, can cut common medias with a lifetime that over 15000m |
 |
 |

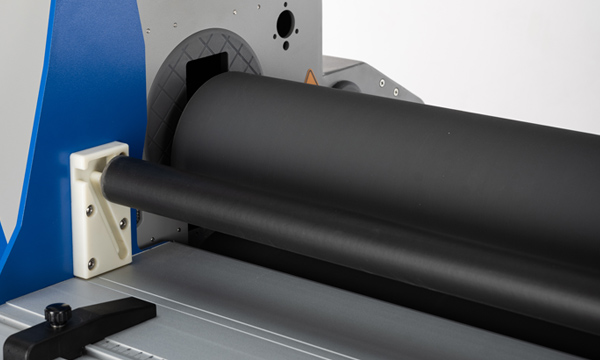

Premium silicon rollers
Premium 130mm diameter silicon rollers provide heavy duty work and good finishes Options for Double heated hot lamination offers the possibility not one for laminating but also for mounting and encapsulating Max temperature could customize to 150℃ |
|
Plug & play
Plug & play, more friendly for assemble Strong and integrated frame, easy to use |
 |
|
Model |
|
F2-2300 |
|
Max lamination width |
1630mm | 2200mm |
|
|
Max lamination thickness |
28mm |
|
|
Max Speed |
20m/min |
|
|
Max Temp |
80℃ |
|
|
UP and Down |
Penumatic |
|
|
Heating |
Infrared |
|
|
Warm up time |
5-10min |
|
|
Power consumption |
0.6-0.8kw/h |
|
|
Power input |
1500w |
1500w |
|
Volt |
110v/220v |
|
|
N.W |
260kg |
300kg |
