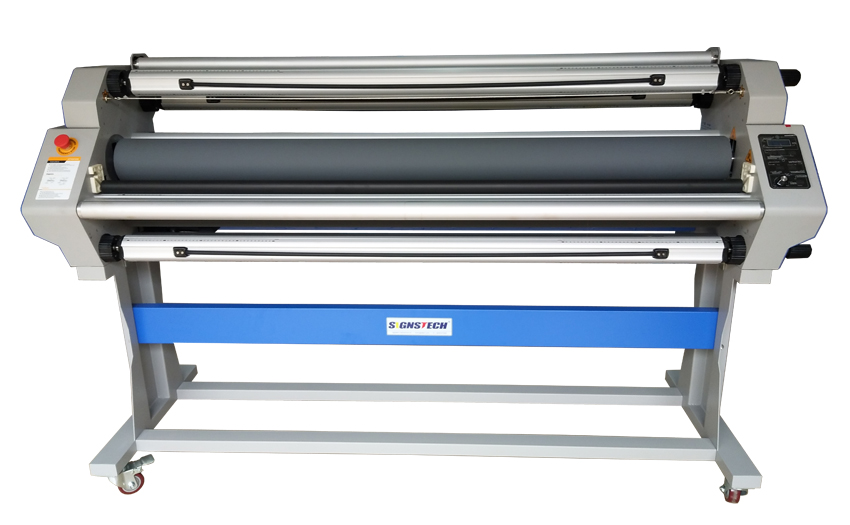

1630mm Pneumatic Hot Cold Laminator
Model: F4-1700
Price:
- Features
- Parameters
- Video
- Download
| Characters: | |
|
1.Heavy duty structure,120w high speed torque motor. 2.Max 80 ℃ heat-assist laminating avoiding bubbles and dots. 3.Imported Dia 130mm silicon rollers, single unit up to 56kg. 4.Pneumatic roller lifting up and down at single side, more even pressure. 5.Comes with 3 tungsten steel blades, cutting while laminating. 6.Max laminating speed is up to 960m2/hour. 7.No tilt & wrinkle for whole 50 meters laminating. 8.Automatic roll laminating & Self peeling back paper, working with one worker or unmanned on duty. 9.Is able to laminate the low cost linerless lamination film. 10.Front and back dual-knob for speed adjustment design. |
|
| Details: | |

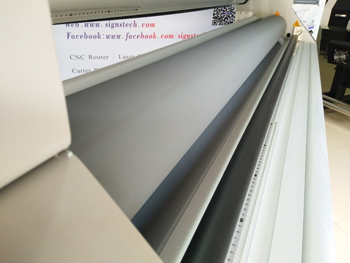

 Imported 130mm silicon rubber rollers, heavy and high quality |

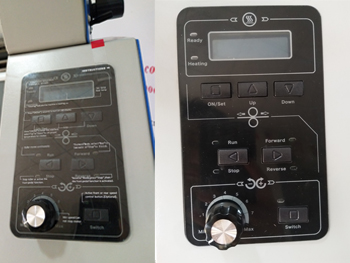

 Control panel covered with instruction on clear film |

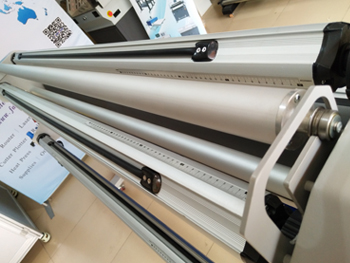

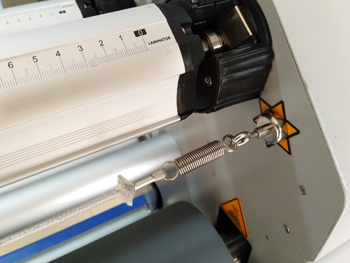

 With special bar for laminating linerless film |

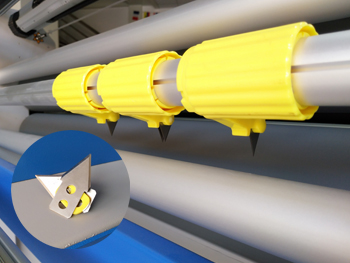

 Comes with blades for cutting while laminating. |

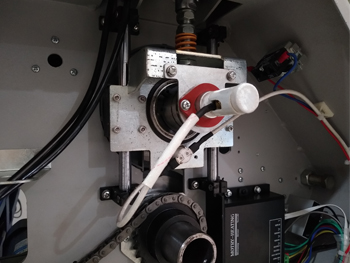

 Roller lift up and down with rail guide |

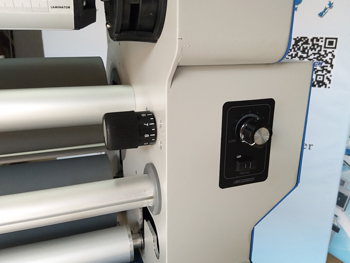

 Front and back dual knobs for speed adjustment |
 With anti-static rope to remove static while laminating. |

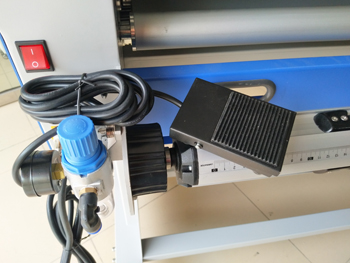

 Foot switch for hands free operation |

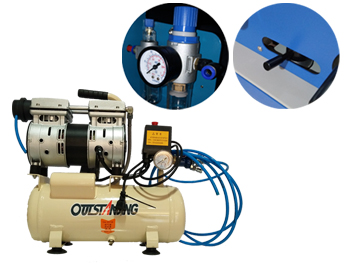

 Comes with Free air compressor |

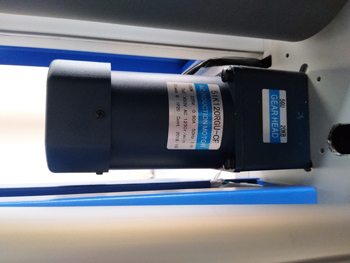

 120w high speed torque motor ensure smooth working. |
| Model | F4-1700 |
| Application | Laminating for indoor/outdoor printings |
| Maximum Working width | 1630mm 64" |
| Maximum laminating height | 28mm 1.1” |
| Rollers Dia | 130mm ,Silicon rubber |
| Roller lifting mode | Single side pneumatic |
| Max laminating temperature | 80℃ |
| Heating mode | Infrared inner heating |
| Motor power | 120w |
| Laminating speed | 0-16m/min |
| Roller Pre-heating time | 5-10 min |
| Power supply | AC220±10% 50HZ,Optional 110v,60HZ |
| Power input | 1400 W |
| Power consumption | 0.5-0.7kw/h |
| Net Weight | 180KG |
