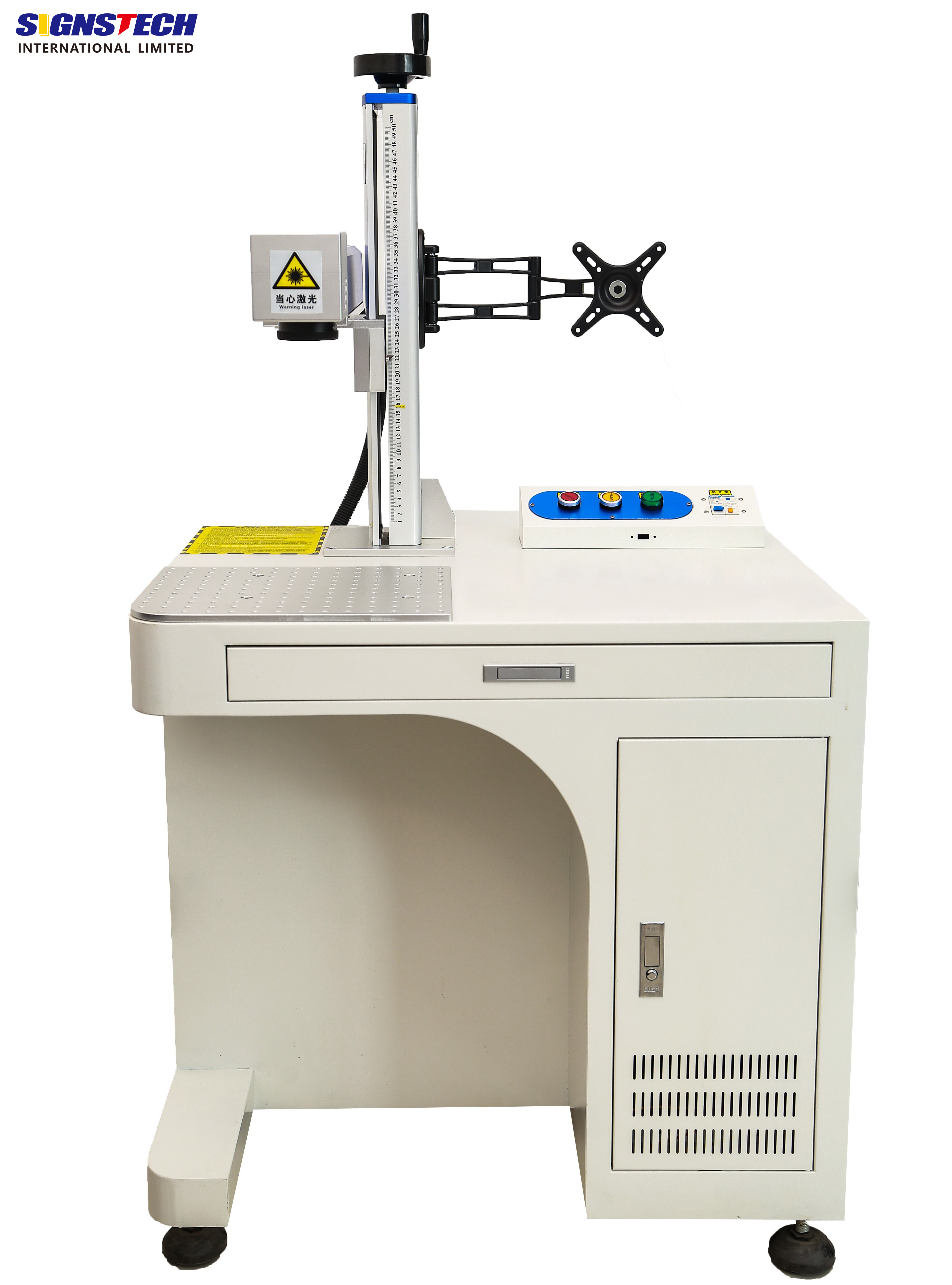

Metal Fiber Laser Marking Machine
Model: FM-2020
Price:
- Features
- Parameters
- Video
- Download

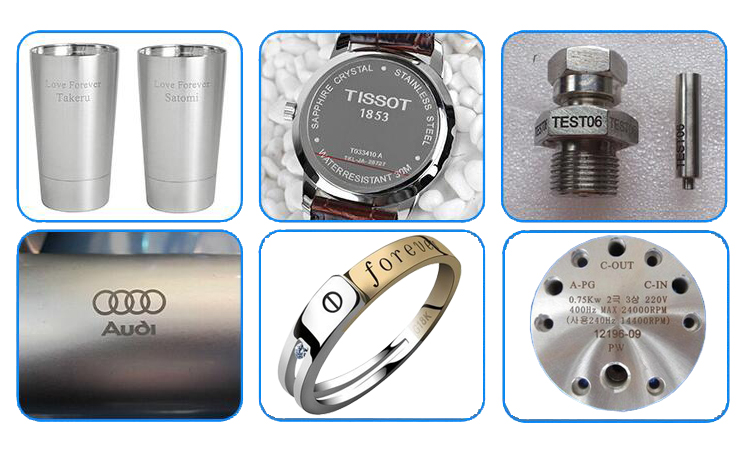

- With "Raycus" fiber laser source 30w is able to mark on all metals such as aluminum, copper, gold and silver and some non-metallic coating materials, especially good at marking high hardness, high melting point and fragile materials
- Adopts advanced digital high speed scanning galvanometer, quick speed without deviation.
- Noncontact process, no damaging product, no scuffing, good quality marking
- Thin laser beam, low consumption and small heat influence of processing materials.
- Highly efficient controlled by computer with easy operation. no consumables for 5-6 years.
- Optional portable version and smaller sizes with same cost.

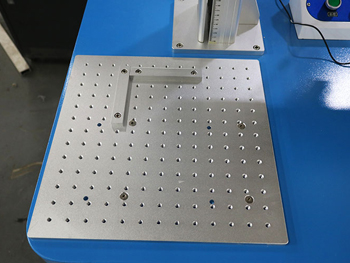

 Working area 200x200mm, easy to feed materials |

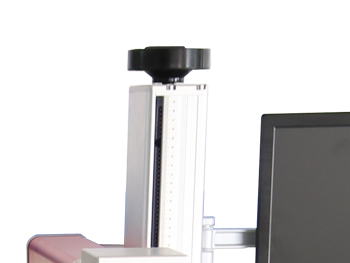

 Manual Focusing distance bar, very easy to get best focusing distance |

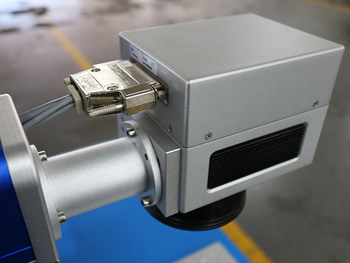

High quality RC7110 galvo scanner head
|

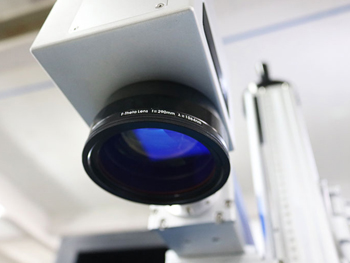

 Scanner lens,marking position more precision |

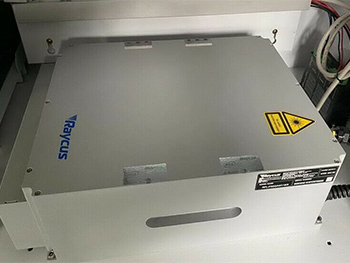

 Famous Raycus brand fiber laser source |

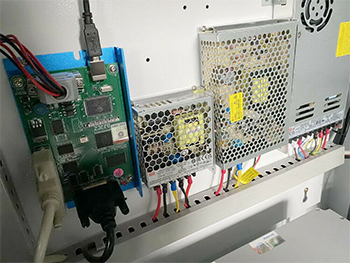

 Ezcad control system,Quality power supply with anti-clutter circuit |
| Model | FM-2020 |
| Fiber laser power | Raycus 30W,optional 50W |
| Laser wave lenght | 1064nm |
| Laser repetition frequency | 20KHz~80KHz |
| Marking area | 200mmx200mm |
| Marking speed | ≤7000mm/s |
| Marking deepth | ≤0.4mm |
| Min Line width | 0.012mm |
| Min letter | 0.15mm |
| repeatability precision | +0.003mm |
| Positioning Way | Dual Red light |
| Laser Module Life | More than 100000 hours |
| Control software | JCZ EZCAD 2.12 Professional fiber laser marking software |
| Supported Format | PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG, etc |
| Computer+Monitor | Optional * 320$ with software pre-installed |
| Certificate | CE, FDA |

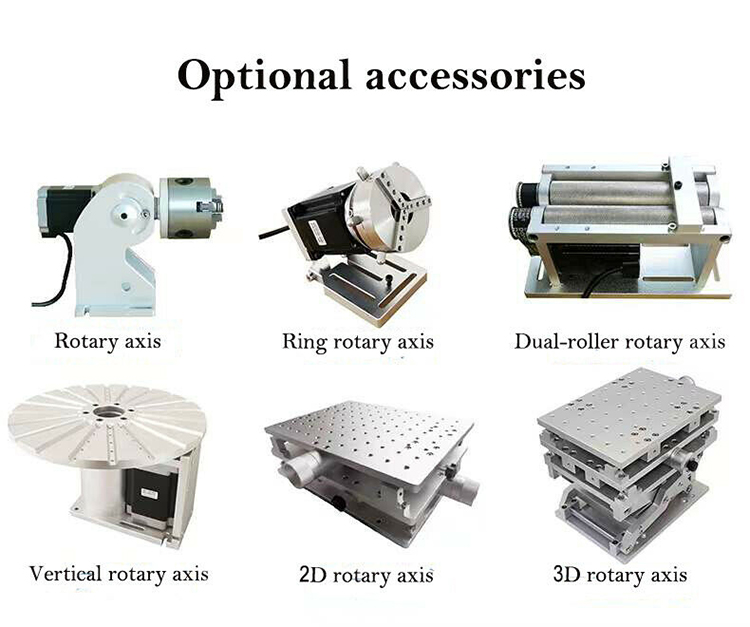

| Options | Rotary attachment, 2D/3D working table |
| Material can be processed | all metal material and part of non-metal material,such as hard plastic |
| Power requireemnt | AC220V / 50Hz / 4A |
| Gross power | 500W |
| Package dimensions | 800mmx900mmx1230mm |
