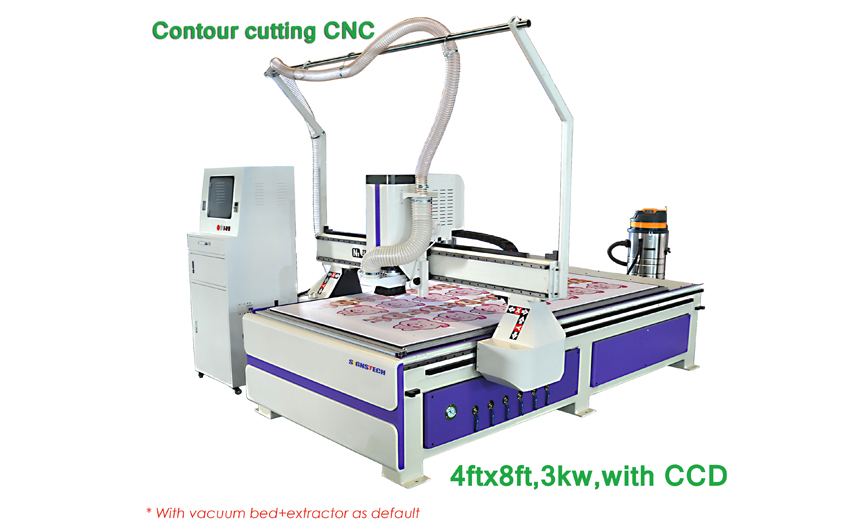

N1-1325 CNC Router CCD
Model: N1-1325CCD
Price:
- Features
- Parameters
- Video
- Download
Features:
It is our latest product with proprietary, high precision and low noise,highly reliable and efficient.it is a regular CNC router and a CCD cutting system 2in1, widely used for cutting acrylic ,thick PVC,woodworking,aluminium,cooper etc soft metals.It is a good working mate for UV flatbed printing system, you print we cut!
Applications：
It is our latest product with proprietary, high precision and low noise,highly reliable and efficient.it is a regular CNC router and a CCD cutting system 2in1, widely used for cutting acrylic ,thick PVC,woodworking,aluminium,cooper etc soft metals.It is a good working mate for UV flatbed printing system, you print we cut!

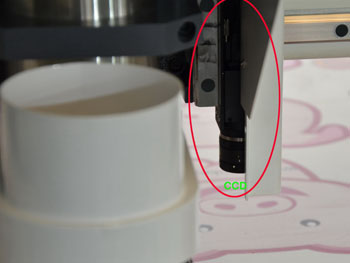

 It comes with CCD camera system to recognize registration points for contour cutting |

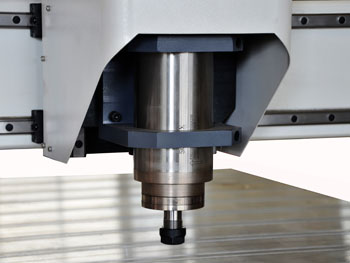

 3kw Water Cooling Spindle,Collet ER25,Max speed: 24000rpm |

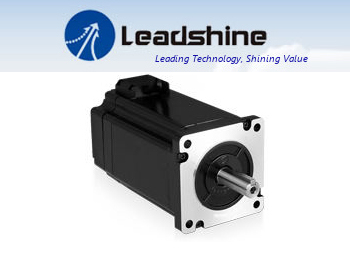

 Leadshine hybrid servo system,86HSM80-E1 motors and HZ758 drivers.high precision movement and low noise |

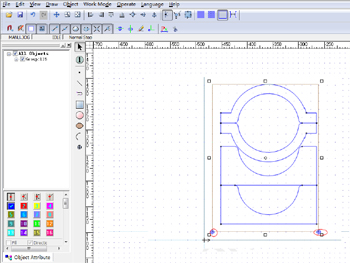

 With Ncstudio V10 CCD system, professional regular working and contour cutting 2in1 |

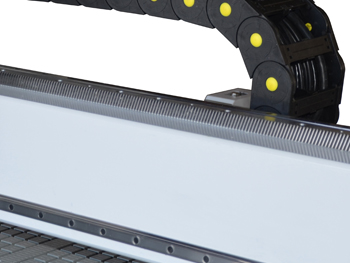

 High quality Gear & Rack for X,Y axis, more faster speed and stronger |

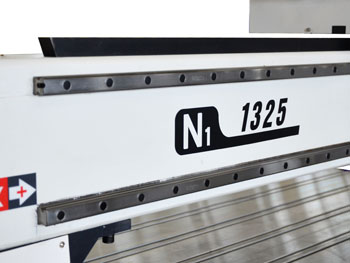

 Taiwan PMI Linear Square Guide 20MM with double bearings |

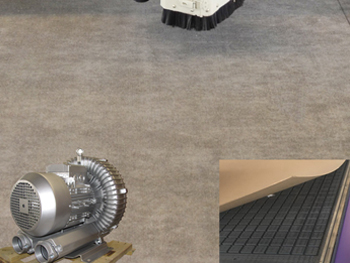

 With vacuum bed system as default with carpet table top,7.5kw air pump |

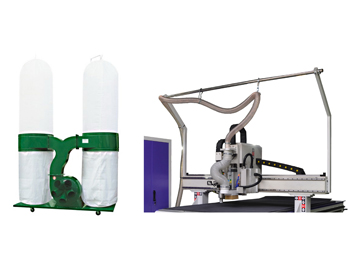

 With Dust extractor & Dust Pipe Stand system for chips collection, double bags |
Applications：
 |
 |
 |
 |
 |
 |
Parameters:
| Model | N1-1325CCD |
| Table Size | 1440x2630mm |
| Working Size | 1300x2500x200mm |
| Max.Material Height | 200mm |
| Spindle Power | Water Cooling 3.0kw |
| Speed RPM | 0-24000rpm |
| Mark Recognition | CCD Camera |
| Driver | Hybrid Servo |
| Control system | LeYu |
| Media mounting mode |
Vacuun bed+T-slot 2in1
|
| Tool Diameter | Ø3.175,Ø4,Ø6,Ø12.7 |
| Mechanical Structure | Square Steel Pipe |
| Transmission | Ball Screw for Z ; Rack&Pinion for X,Y |
| Guide Ways | Linear Guide Ways |
| Repositioning Accuracy | <0.03mm/300mm |
| MAX.Engraving Speed | 20000mm/min |
| File Transfer | USB |
| File Format | G Code or HPGL |
| Power Supply | AC220V or 380V,50-60Hz |
| External Form Size | 2050x3060x1650mm |
| Packing Size | 2200x3210x1800mm |
| Net/Gross Weight | 800/1000kg |
| Optional Models | N1-1313， N1-1318， N1-1325，N1-1530 |
