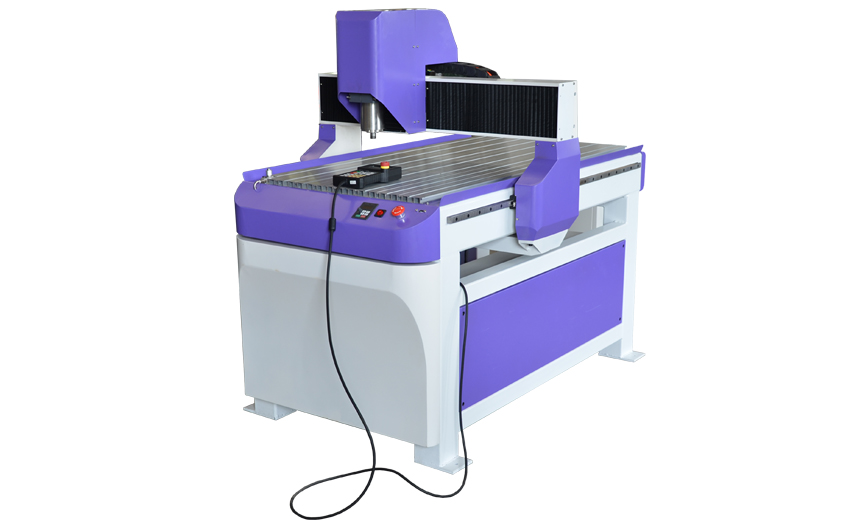

6090DS CNC Router Engraver
Model: 6090DS
Price:
- Features
- Parameters
- Video
- Download
 |

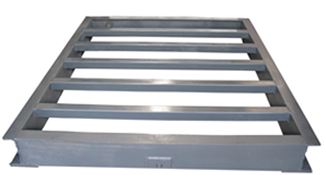

Base Frame: it is an iron casting base being precisely processed by gantry milling machine and stress relieved by vibrationdevice so that the foundation remains true and steady over the operational life of the machine. |
 |

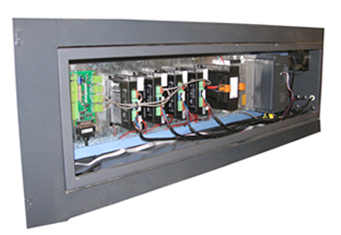

Electric Cabinet:All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet. |
 |

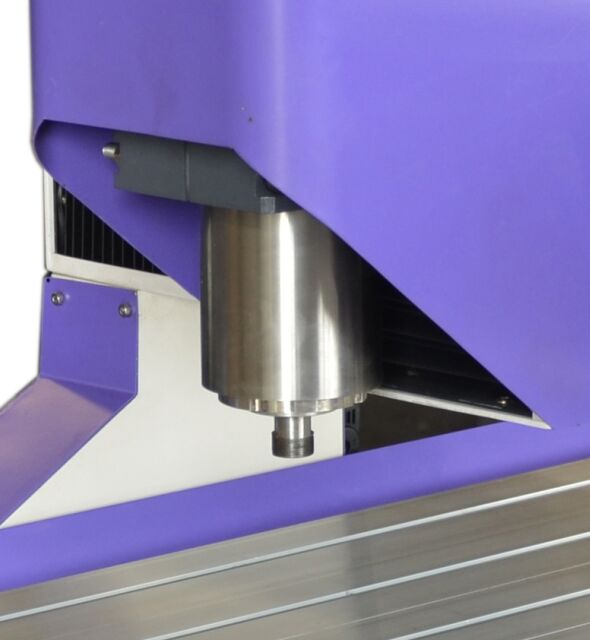

Spindle: Quality 1.5kw water cooling spindle with better performance of cost effectiveness, various spindle options available for different requirements. |
 |
Auto Tool Sensor： It allows for easy and accurate “Z” zero position for single and multiple tool changes through the program,saves time & error-free. |
 |

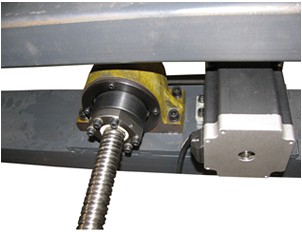

Imported Lead screw: bearing run along the lead screw to eliminate its shaking, which offers much smooth motion. |
 |
Stepper Motor: Industrial subdivided stepper motor centered drive has outstanding wearability and it offers long-term maintenance-free solution. |
 |
Linear Guide: 25MM Linear Guide with double bearings,an ultra heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools. |
 |

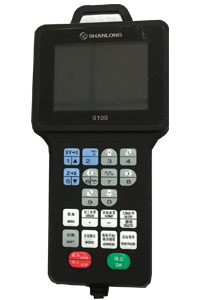

Controller: DSP with 128M internal memory,it supports USB flash stick as well as online file communication.It is available with standard G code or HPGL,and has practical functions like faster calculation, stronger processing ability,breakpoint memory and power failure protection function,etc. |
Application
This machine is widely used in advertising industry, such as making advertisement logo, sign making, chest ID badge, office
board, ruler, art crafts, small metal sign plate, and architectural models and so on.
Option Parts:
All 3 axis Linear rail ,Spindle of 3000W or more, Vacuum Bed system, Dust Extractor,muti-spindles,servo system
| Model | 6090DS |
| Table Size | 1320x880mm |
| Working size | 600x900x90mm |
| Spindle | Water Cooling 1.5kw,Optional 2.2kw,3kw |
| Spindle RPM | 0-24000rpm |
| Motor | Stepper Sub-devided |
| Guide Ways | Linear Guide |
| Transmission | Ball Screws on X,Y,Z |
| CNC | Hand-held |
| Repeated Positioning Accuracy | 0.01mm/300mm |
| Cut Speed | 6000mm/Minute |
| Rapid Speed | 12000/Minute |
| File Format | G Code or HPGL |
| Power Supply | 220V Single Phase 50-60 Hz |
| Net/Gross Weight | 320/370kg |
| packing size | 1500x1650x1700mm |
