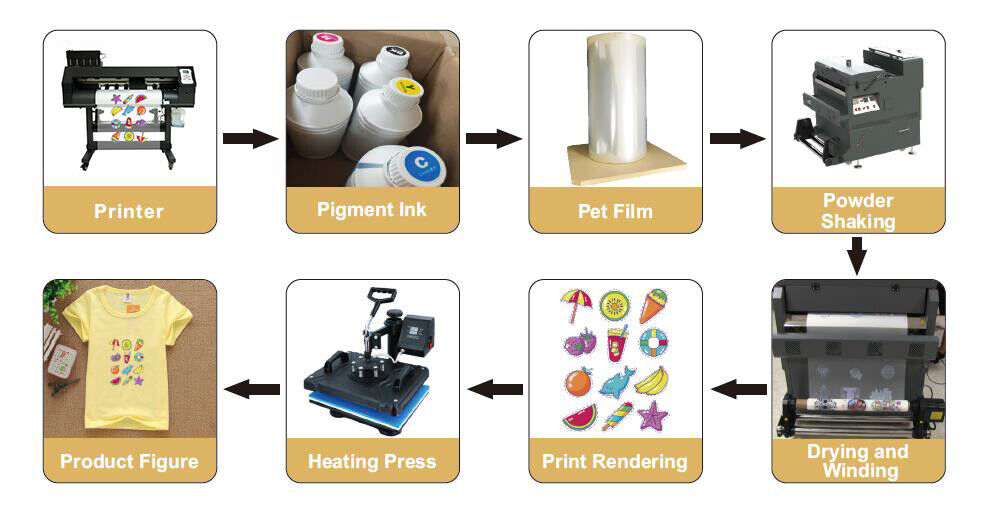

A system for all fabrics printing with very wide application including a 65cm DTF printer and a powder shaker as a kit,2024 version!
The advantages:
User Friendly Features

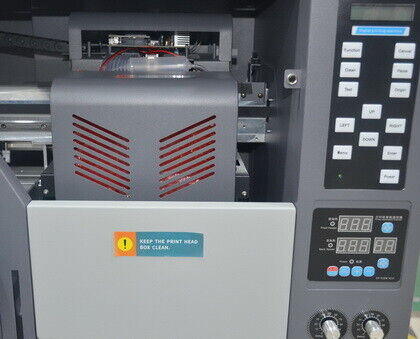

The lastest 2024 version with all new design and upgrades,friendly and functional control panel with inteligent temperture control system
|
![]() |
![]() |

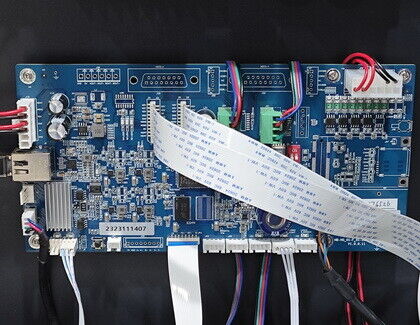

Honson® Control System
With famous Honson® mainbord and carriage board to ensure the stable & reliable working and hiqh quality.
|

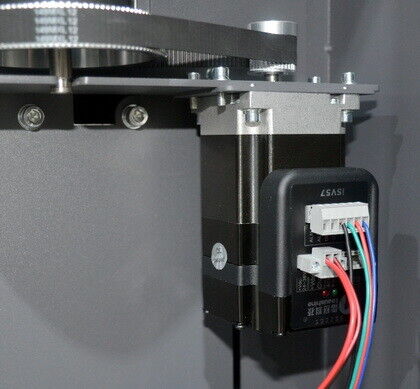

Servo Driving System
The Leadshine® servo motor ensures continious and reliable printing for long time with high precision.
|
![]() |
![]() |

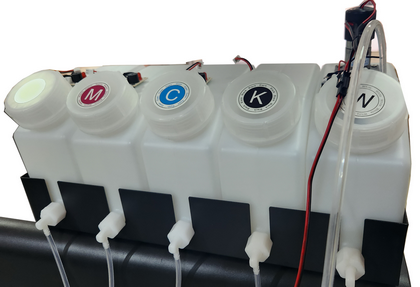

White Ink stirring & circulation system
With 1.5L ink box bulk ink suppy sytem for each color,auto ink stirring and circulation system greatly to prevent the white ink settling.
|

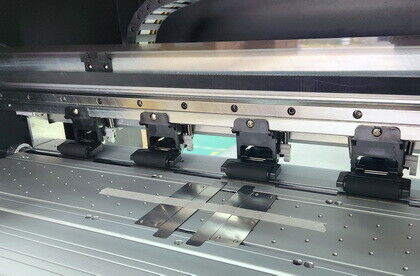

Platform & Linear Rail
Hiqh quality platform with Pre and Past 2-section heating,strong air sucking bed to fix the material well.
Hiwin®linear rail ensures reliable and smooth movement.
|
![]() |
![]() |

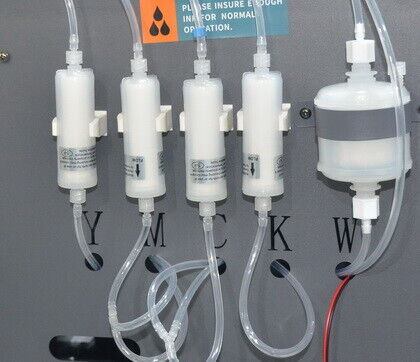

Ink Filtering
With 4pcs regular ink filters for CMYK and special filter for the white ink,filter out impurities to keep the printheads in good condition and extend working time.
|

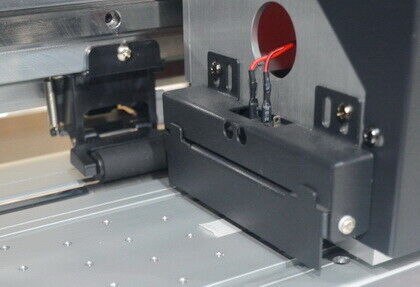

Auto Lifting Ink Station
Precise and fine-made ink station with new design,auto lifting
|
![]() |
![]() |
Anti-collision Device
The carriage will stop automaticlly to protect printhead
|
![]() |
||

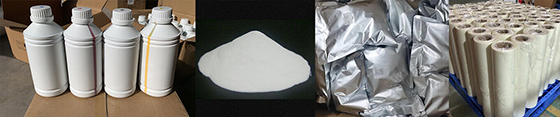

Pigment ink,1 liter/bottle,CMYK+W | Powder, 1kg/bag | PET film,60cmx100m |
![]() |

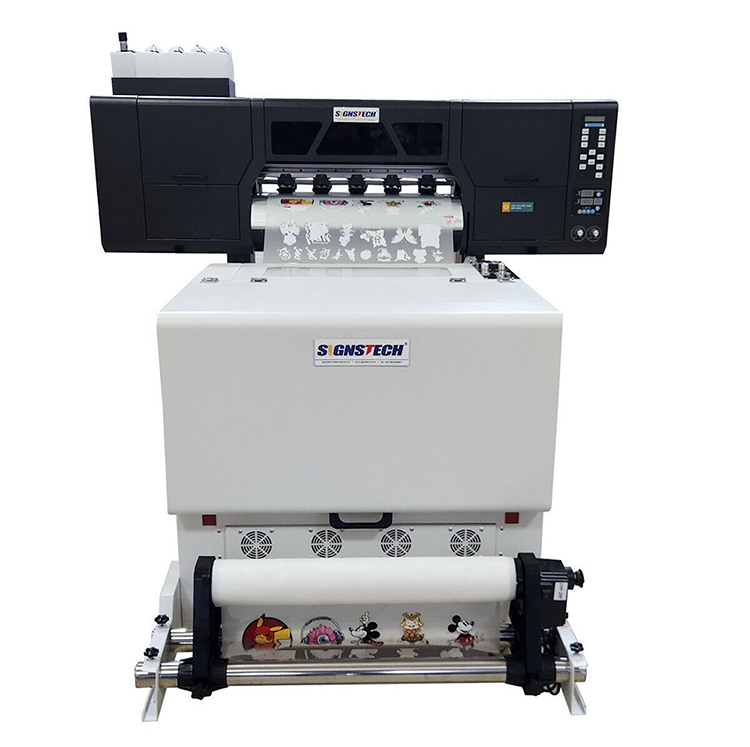

DTF Printer
|
|
Model | YC-6502 |
Color | Black,White,Gray |
Print Head |
Double Epson XP600 heads Optional I1600| I3200 heads
|
Colors | CMYK+W |
Printing width | Max 650mm 25.6" |
Resolution | Max 1080dpi | 2400dpi |
Print Speed (Xp600 heads) |
Production mode 10m2/hr; High quality mode: 7m2/hr
|
Printhead Spray |
Anti-blocking flash spray and auto Moisturizing
|
Cleaning |
Automatic
|
Printhead height |
Adjustable 0-12mm
|
Inks type | Pigment ink |
Media | PET film,Max load 40kg |
Heating system | Pre and Past 2-stage heating |
Rip software | Maintop 6.1 *Optional Photoprint |
Interface | Ethernet Port |
Operation System | Win10/Win7 |
CISS | 1500ml/Color with alarm system |
Voltage |
AC 220 V/110V ± 10 % 60Hz Max 1200w
|
Picture format |
Bmp,TIF,Jpg,Pdf
|
Machine Size and Weight | 1655mmx750mmx1550mm 138kg |
Package Size and Weight |
1730mmx830mmx670mm 163kg
|

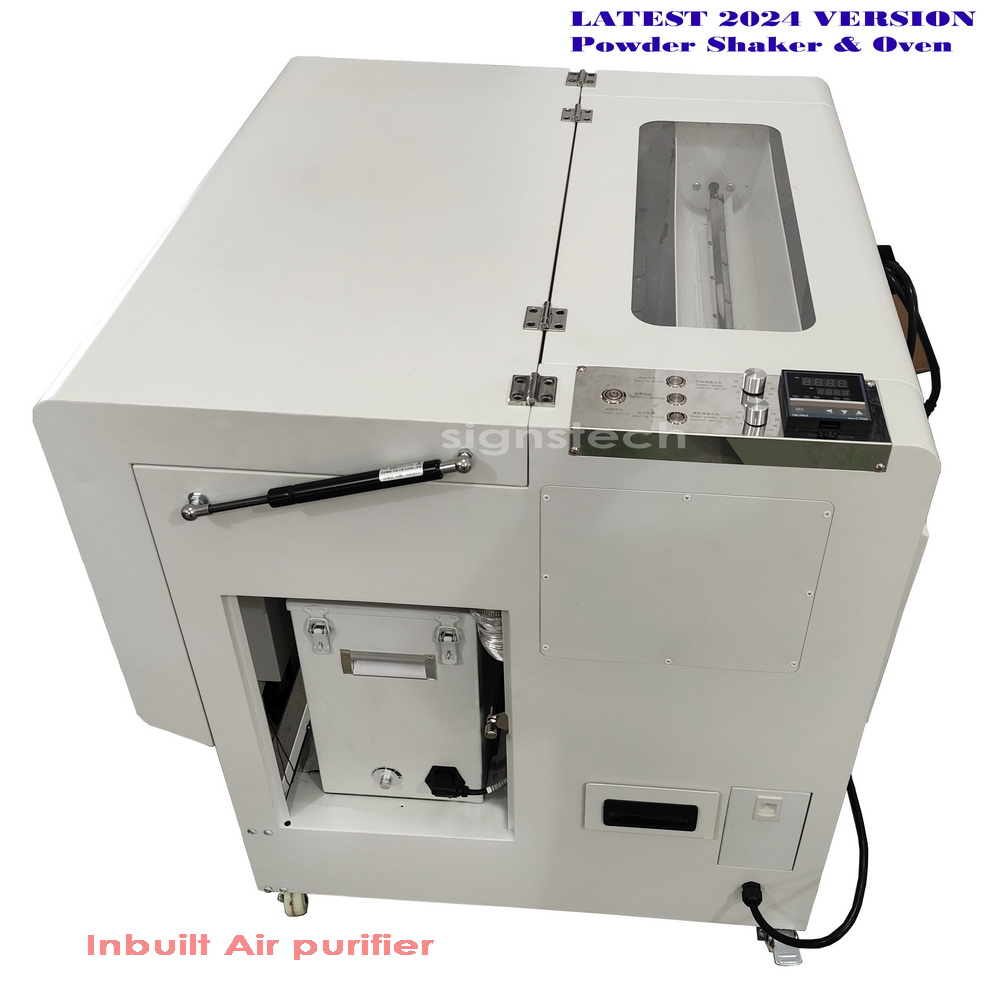

65cm Powder Shaker&Oven
|
|
Model | DC-650 |
Color | White,Black |
Shaking width | Max 650mm 25.6" |
The main function | Powder shaking control, powder spreading control, direction and quantity control |
Pre heating area | 300mm |
Roasting area | 750mm |
Heating method | 4pcs 680mm halogen infrared heating pipes |
Take up system | With,Automatic |
Air Purifier | Inbuilt |
Applicable media type | Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA, etc |
Voltage and Power | Voltage 220V/8A or 110V/16A |
Dimensions(L*W*H) | 800mmx860mmx850mm 90kg |
Package Size and Weight |
950mmx950mmx1070mm 117kg
|
