A3 33cm DTF Farbic Printing System
Model: A3
Price:
$2790.00
$3190.00
- Features
- Parameters
- Video
- Download

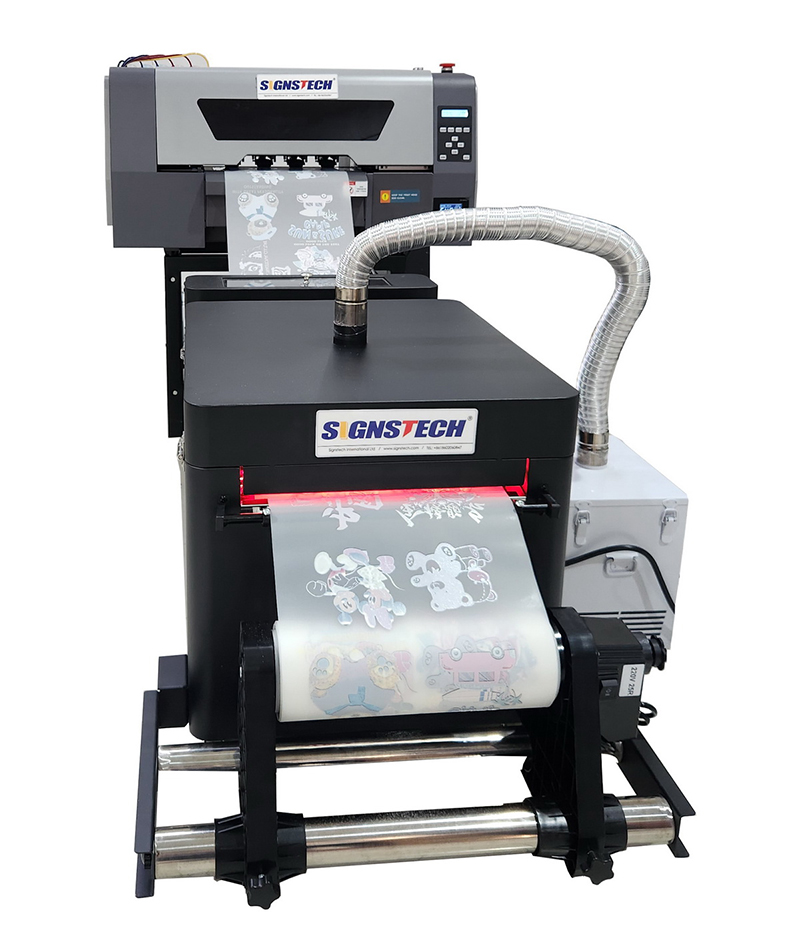

A smart system for all fabrics printing with very wide application including a DTF printer and a powder shaker as a kit,2024 version upgraded
- Suit for almost all kinds of fabrics and any color and any fabric type T-shirts;
- No contour cutting needed after printing,save time and labor;
- The average production cost is low and the output is better than common sublimation printing;
- Auto printing,powder shaking and drying,suitable for mass production;
- It comes with stand,consumables(ink,film,powder) for free;
- Optional air purifier for the powder shaker;
 |
User Friendly Features
The lastest 2024 version with all new design and upgrades,friendly and functional control panel with inteligent temperture control system
|
|
Honson® Control System
With famous Honson® mainboard and carriage board to ensure the stable & reliable working and hiqh quality.
|
 |
 |
LEADSHINE® Servo Driving System
With famous servo driving system,high speed and accurate printing movement,lower noise,longer working life-span.
|
|
White Ink stirrering system
bulk ink suppy sytem,auto ink stirring and circulation system greatly to prevent the white ink settling.
|
 |
 |
Platform & Linear Rail
Hiqh quality platform with Pre and Past 2-section heating,strong air sucking bed to fix the material well.
Hiwin® linear rail ensures reliable and smooth movement.
|
|
Auto Lifting Ink Station
Precise and fine-made ink station with new design,auto lifting
|
 |
Consumbles:
| Pigment ink,1 liter/bottle,CMYK+W | Powder, 1kg/bag,black or white | PET film,30cmx100m |
The working flow:
 |
 |
 |
| Design | Prining onto the PET flim | Powder shaking & drying while printing |
 |
 |
|
|
Heat press,transfer it onto Fabric
|
Finished with nice reslut |
|
Parameters:
|
DTF Printer
|
|
| Model | YC-330 |
| Print Head |
Double Epson xp600 heads,*Optional Epson I1600 Heads
|
| Colors | CMYK+W |
| Printing width | Max 330mm 13" |
| Resolution | Max 1080dpi |
| Print Speed |
Production mode 6m2/hr; High quality mode: 4m2/hr
|
| Printhead Spray |
Anti-blocking flash spray and auto Moisturizing
|
| Cleaning |
Automatic
|
| Inks type | Pigment ink |
| Heating system | Pre and Past 2-stage heating |
| Rip software | Maintop 6.1uv *Optional Photoprint |
| Interface | Ethernet Port |
| Operation System | Win10/Win7 |
| Cartridge Capacity | 500ml/Color |
| Voltague |
AC 220 V /110V ± 10 % 60Hz Max 1200w
|
| Picture format |
Bmp,TIF,Jpg,Pdf
|
| Machine Size and Weight | 95*50*50cm 43kg |
| Package Size and Weight |
102*61*64cm 80kg
|
|
A3 Powder Shaker & Oven
 |
|
| Model | 360L |
| Heating width | 360mm 14.1" |
| The main function | Powder shaking control, dusting control, curing temperature PID setting |
| Heating method | 4pcs 400mm halogen infrared heating pipes |
| Take up system | With,Automatic |
| Pre-Heating length | 25.5cm |
| Roasting length | 40cm |
| Voltage and Current | 220V 8A or 110v 15.5A |
| Dimensions(L*W*H) | 70*54*57cm 35kg |
| Package Size and Weight |
78*61*70cm ,50kg
|
* Optional air purifier 120$*
