Handheld Fiber Laser Welding Machine
Model: A120/A150/A200
Price:
- Features
- Parameters
- Video
- Download
The Signstech Handle Fiber Laser Welding Machine is a flexible welding machine. It is able to weld almost all kinds of metallic materials such as brass, copper, aluminum, stainless steel. is widely applied to the welding of kitchen ovens, sheet metal industry, hardware , channel letters welding.
Advantages：
1.Easy to learn and run, taking small place,no need professional welding technician.
2.Low maintenance cost,No computer ,No consumable auxiliary material or gas.
3.It is is 5~10 times faster than the traditional welding, one machine is equal to 2 labors at least.
4.The welding joint is smooth and precise, small heat-affected zone
5.Flexible multi-angle welding.
Features:

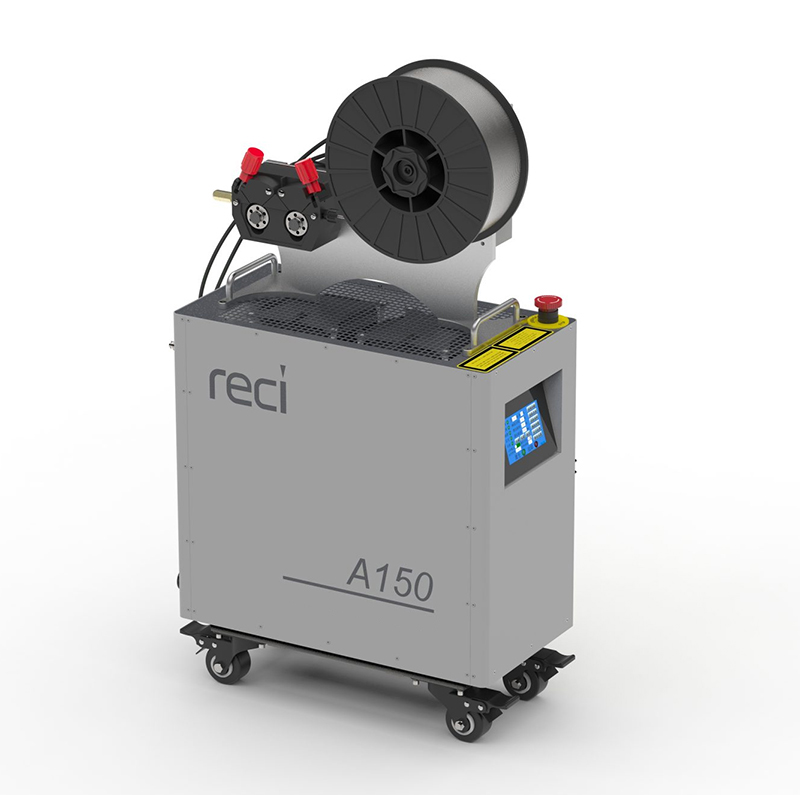

Integrated Cabinet
1. Integrated design to save work space
2. Convinient to operate it and change welding parameters
3. Easy to move the complete machine to any where in workshop

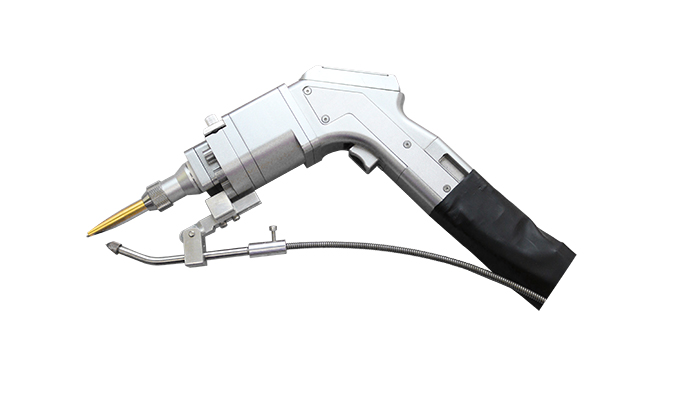

Standard Welding gun
1. Galvanometer width adjustable, beam width 0.5-6mm
2. Dedicated welding tip for welding at anyposition and angle
3. Infrared positioning, more accurate welding position

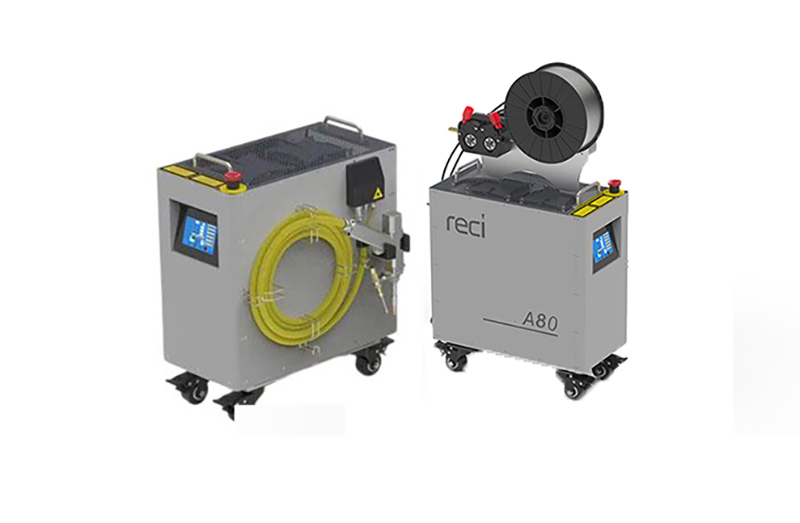

Free wire feeding device
1. Auto feeding welding wire when the welding head is working.
2. Get stronger welding
3. Total free,with one roll welding wire

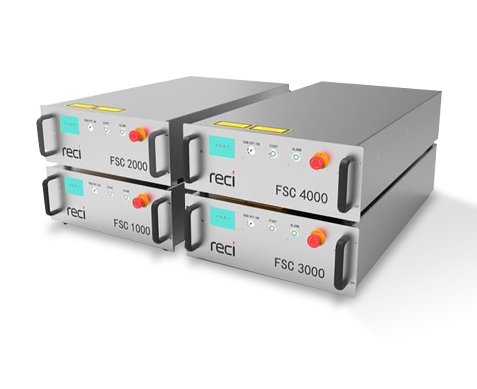

Laser source
1. 1000W, 1500W, 2000W Reci laser source, Famous brand, high performance
2. 50um fiber core diameter, higher electro-optical coversion dfficiency
3. High beam quality and strong system stability

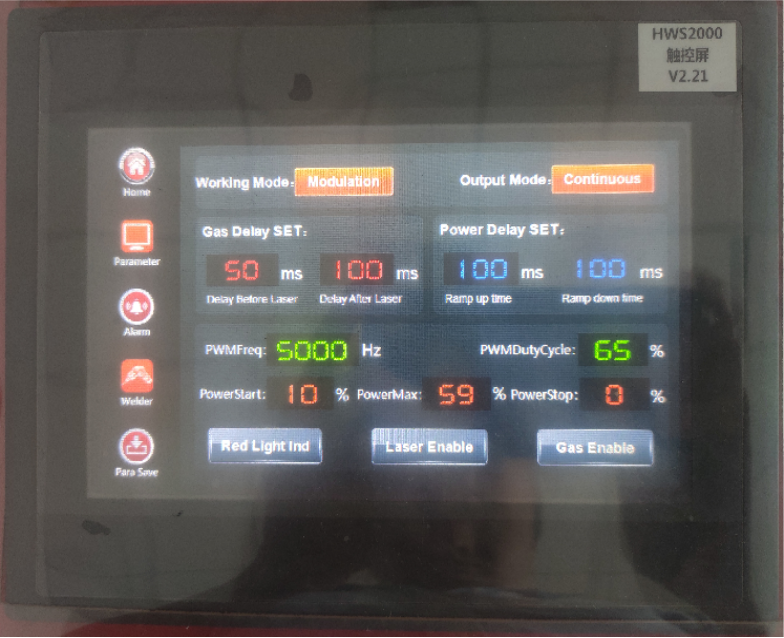

Control system
* LCD touch screen, good interactive control system
* Preset multiple process modes to meet different processing
* Preset multiple security alarms, more secure and reliable

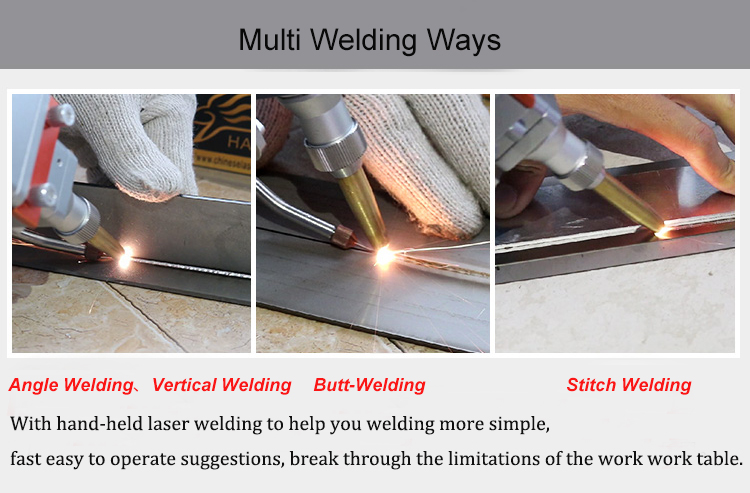

Work Processing for reference
With hand-held laser welding to help you welding more simple, fast, easy to operate Suggestions, break through the
limitations of the work table.
Used for welding joint position checking and welding position verifcation, welding position is more accurate,simple operation, two hours training can be on duty, no old master can also weld beautiful products.
Used for welding joint position checking and welding position verifcation, welding position is more accurate,simple operation, two hours training can be on duty, no old master can also weld beautiful products.

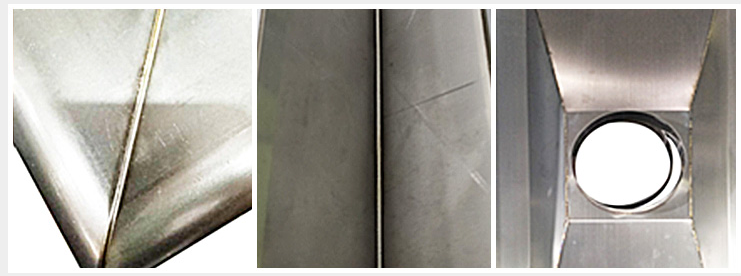

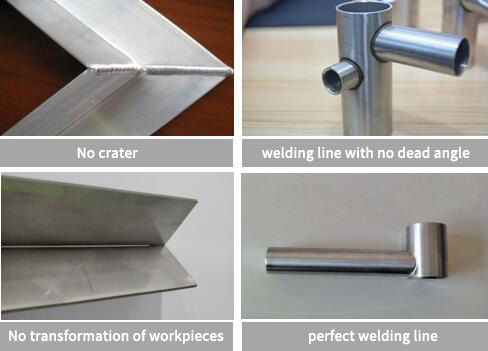

Welding samples:
| Model | A120 | A150 | A200 |
| Limit Power | 1000W | 1300W | 1800W |
| Maximum Power | 1200W | 1500W | 2000W |
| Operating Mode | Continuous Welding & Spot Welding | ||
| Polarization Direction | Random | ||
| Output Power Adjustment Range | 10~100% | ||
| Central Wavelength | 1080±3nm | ||
| Power attenuation after 1 hour of continuous operation | <2% | ||
| Maximum Modulation Frequency | 5Khz | ||
| Indicating Red Light Power | ≥0.2mW | ||
| Output Fiber Core Diameter | 20μm | ||
| Output Armored Cable Length | Default 5m | ||
| Operating Voltage | AC 220v/110v, 50/60Hz | ||
| Maximum Power Consumption (W) | <3100W | <4100W | <6000W |
| Control Method | Touch Screen | ||
| Dimension (Wx Hx D) mm | 273*64.9×527.7 | 273*634.1×527.7 | 323x684.2x629 |
| Weight | 41kg | 43kg | 58kg |
| Operating Temperature | -30~40°℃ | ||
| Operating humidity | ≤90% | ||
| Cooling | Air | ||
| Storage Temperature | -10~60°℃ | ||
| Input Gas Pressure | ≤0.7MPa | ||
| Gas assistance | Nitrogen, Argon, Composite Gas | ||
| Welding Gun | With | ||
| Wire Feeder | With | ||
| Welding Wire | One Coil for Free | ||
| Items | Fusion of depth | ||
| Power options | Stainless steel | Carbon steel | Aluminum |
| 1000W | 1mm | 1.5mm | 0.5mm |
| 1500W | 2mm | 2mm | 1mm |
| 2000W | 3mm | 3mm | 2mm |
