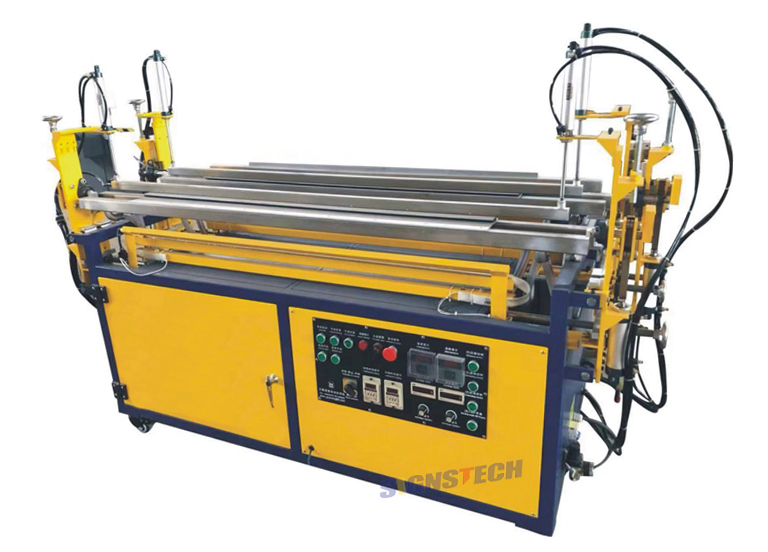

Automatic Acrylic bending machine
Model: JW-1200/1500/1800
Price:
- Features
- Parameters
- Video
- Download
Features:
1.The automatic bending machine is widely used in the hot bending process of plexiglass, acrylic, plastic board, PC,PVC,PP and other materials.
2.The whole machine is welded with high temperature paint processing.
3.This machine adopts infrared quartz tube heating method, and make sure the workpiece is heated evenly.
4.Folding angle 0-180 degree adjustable . It can fold two corners at the same time, more production efficiency.
5.Equipped with water circulating cooling system and air cooling system.
6.The heating temperature can be adjusted according to the different materials and the thickness.
7.With accurate temperature regulator and digital angle display & adjustment.
1.The automatic bending machine is widely used in the hot bending process of plexiglass, acrylic, plastic board, PC,PVC,PP and other materials.
2.The whole machine is welded with high temperature paint processing.
3.This machine adopts infrared quartz tube heating method, and make sure the workpiece is heated evenly.
4.Folding angle 0-180 degree adjustable . It can fold two corners at the same time, more production efficiency.
5.Equipped with water circulating cooling system and air cooling system.
6.The heating temperature can be adjusted according to the different materials and the thickness.
7.With accurate temperature regulator and digital angle display & adjustment.

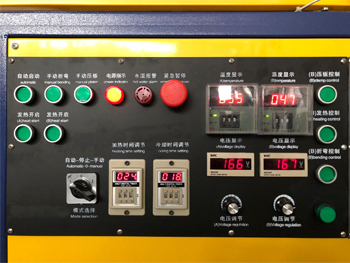

 Button panel operation control, manual/automatic two state optional, easy to learn and operation |
 Constant temperature and energy saving heating system, the temperature can be adjusted |

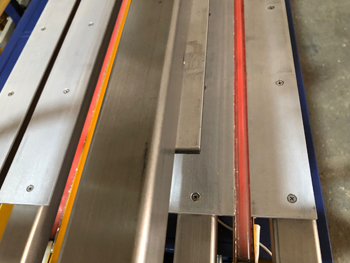

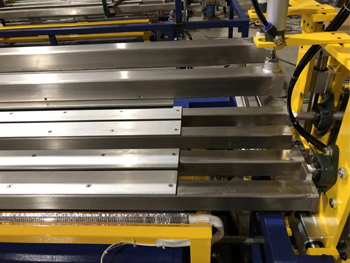

 The working table is equipped with 4MM thick pure aluminum plate. The cooling speed is fast. |

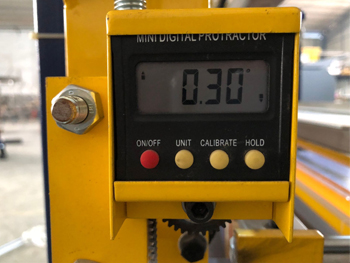

 Angle electronic display, adjust more accurately. |
 The air cooling system is made of 304# stainless steel,strong and durable. |

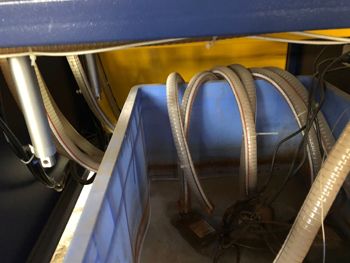

 Fast water circulation cooling system, with automatic water temperature alarm device. |
| Model | JW1200 | JW1500 | JW1800 | JW2400 |
| Max working length | 1200mm | 1500mm | 1800mm | 2400mm |
| Max Process thickness | 6mm | |||

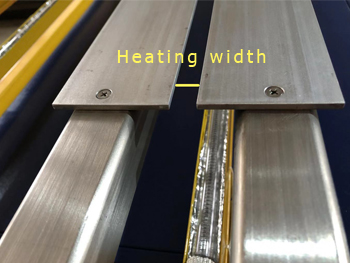

| Heating width | 0-30mm | |||
| Heating pipe space | 150-550mm adjustable | |||
| Bending angle |
A worktable (30-179 degree adjustable) B worktable (0-180 degree adjustable) |
|||
| Cooling mode | water circulation cooling and air cooling system | |||
| Power | 2400W | 3000W | 3600W | 4800W |
| Power supply | AC110V/220V±10%,50/60HZ | |||
| Machine dimension(mm) | 1600x1100x1200 | 2000x1100x1200 | 2400x1100x1200 | 2900x1100x1200 |
| Weight | 220KG | 280KG | 350KG | 380KG |
