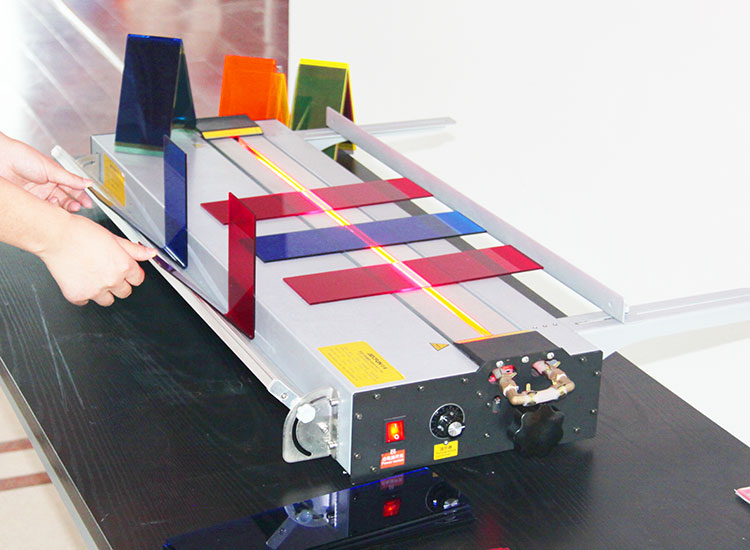

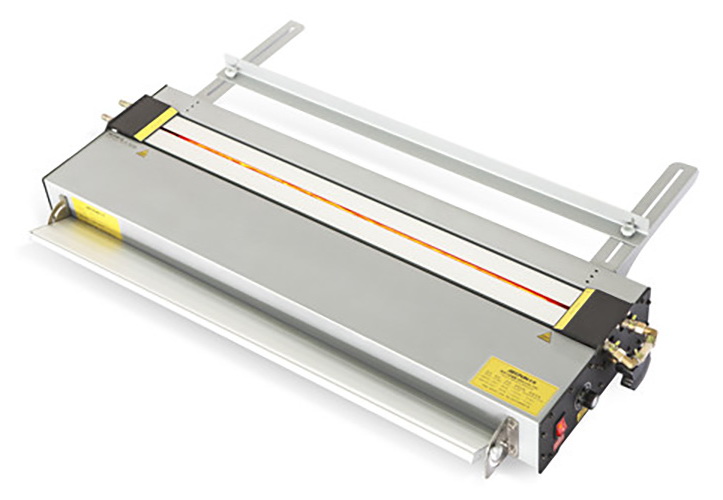

Manual Acrylic Channel Bender
Model: ABM700/1300
Price:
- Features
- Parameters
- Video
- Download
The shell made of sheet metal and the heating zone made of aluminum profile which is helpful for thermal conductance while working.
|
Temperature adjustable as different thickness of material,Max heating up to 600℃.
|
Equipped with Circulating water cooling system which ensures fast cooling
|
The heating zone gap is adjustable from 0mm to Max 20mm.
|
Standardization configuration including water pump and water tube and heating tube
|
With angle locator,it can be adjusted from 0-160° angle
|
With length locator for lenght of 40mm-330mm process,suitable for mass product.
|
 Special kickstand to increase the distance and improve the air flow. |
| Model | ABM700 | ABM1300 |
| Working Principle | Thermal Forming | Thermal Forming |
| Applicable Length | ≦650mm | ≦1250mm |
| Applicable Thickness | 1-10mm | 1-10mm |
| Input Voltage | 110V/220V | 110V/220V |
| Working Voltage | 110V/220V | 110V/220V |
| Working Power | 1000W | 1500W |
| Temperature Range | Available 0-600℃ | Available 0-600℃ |
| Carton Size | 1250(W)x430(D)x185mm(H) | 1850(W)x430(D)x185mm(H) |
| Net Weight | 17kg | 26kg |
| Gross Weight | 23kg | 33kg |
