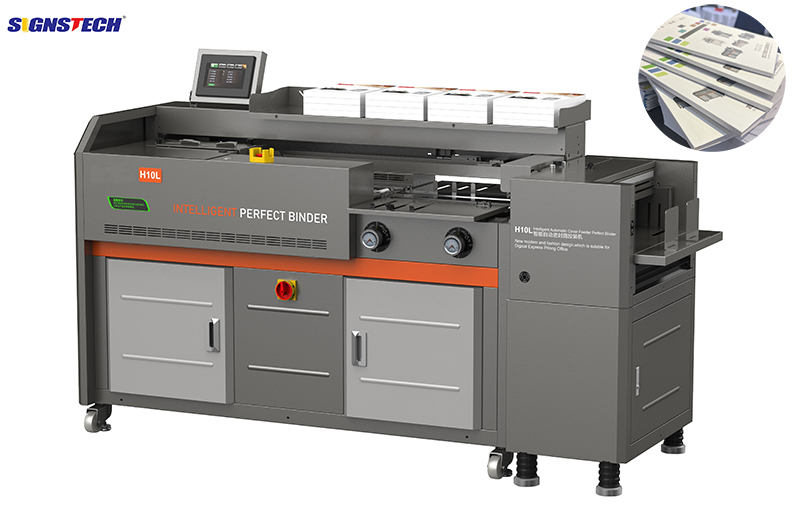

Deluxe Perfect Binder Auto Cover Feeder
Model: H10L/H20L
Price:
- Features
- Parameters
- Video
- Download

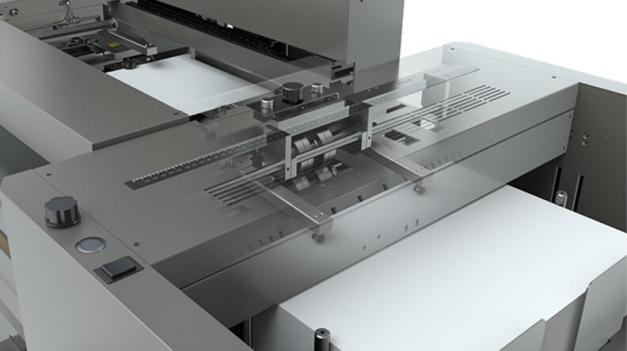

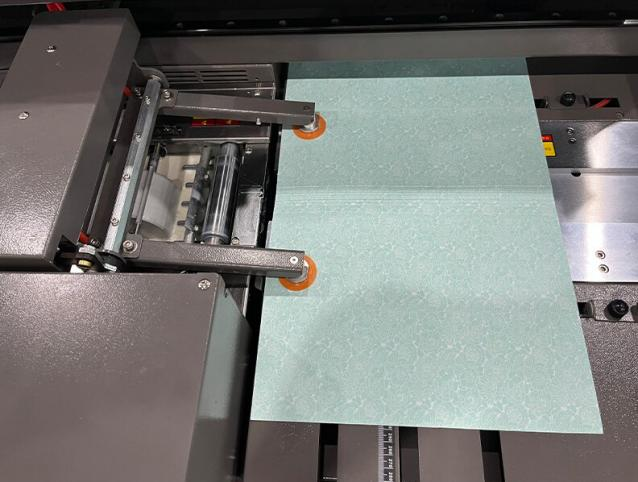

 “FEEDER” automatic cover feeding system, easy to operate, saves manpower, and improves working efficiency greatly |

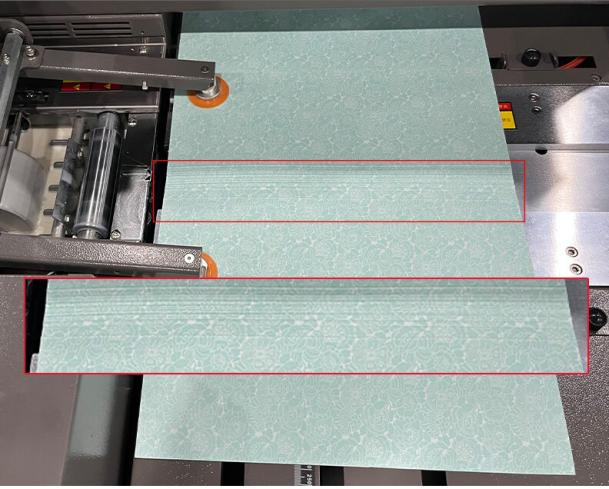

 4-indentation on the flip line and spine line in one go while cover feeding. |
 Automatically adjusts the clamping pressure to optimize the binding effect |

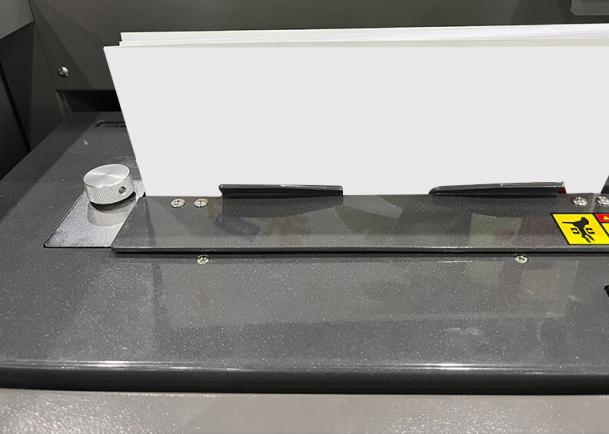

 Secondary positioning technique to eliminate the possible deviation of the cover placed. |

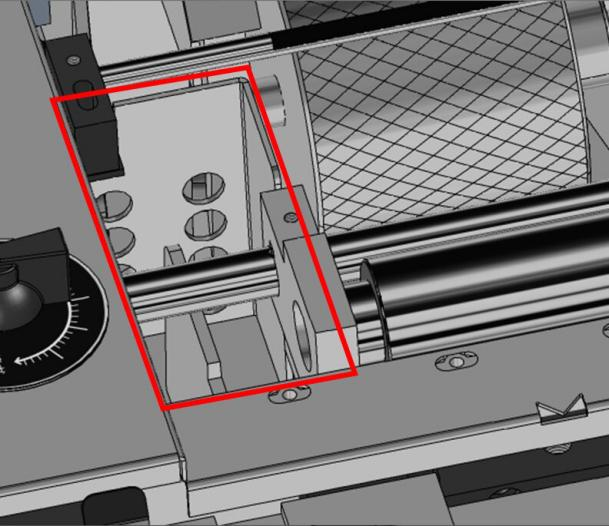

 The pre-melt groove structure allows adding glue without stopping the machine, improving the binding efficiency. |

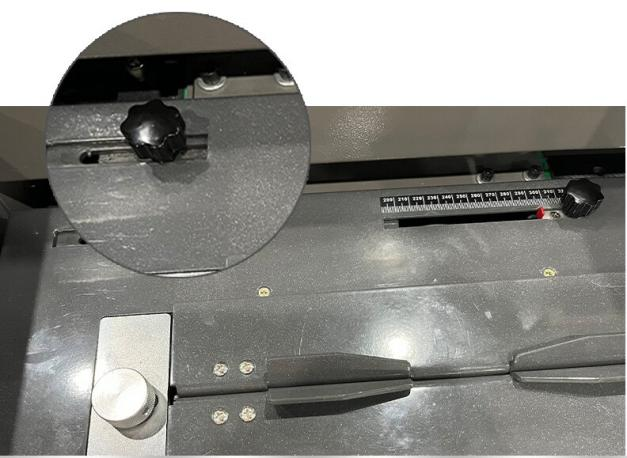

 Equipped with anti-skew fine adjustment device for the creasing on cover. |

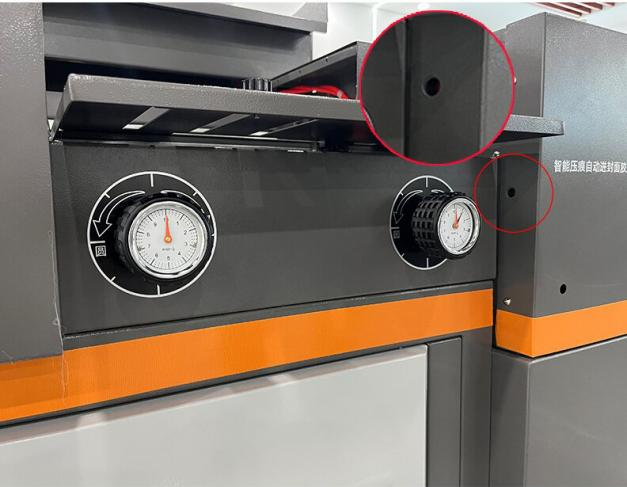

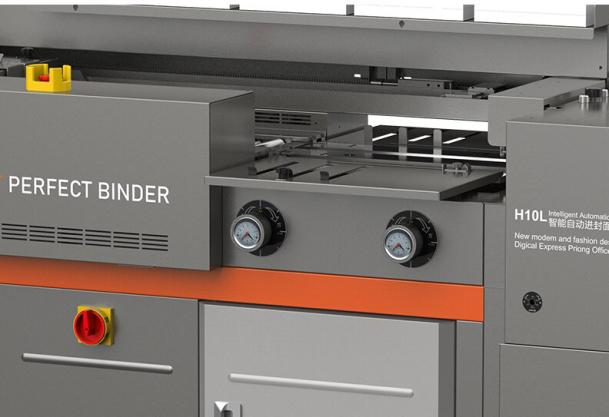

 The book forming effect can be adjusted according to the thickness of the book (adaptive sensing of the pressure) |
 Automatic finishing glue device to solve the issue of residual glue on the clamping platform |
 The combination of linear guide rail and industrial belt makes the machine run more smoothly and quietly |
 The combination of linear guide rail and industrial belt makes the machine run more smoothly and quietly |
 PLC integrated control circuit design, faster response, improving reliability greatly, extending 30% longer life. |

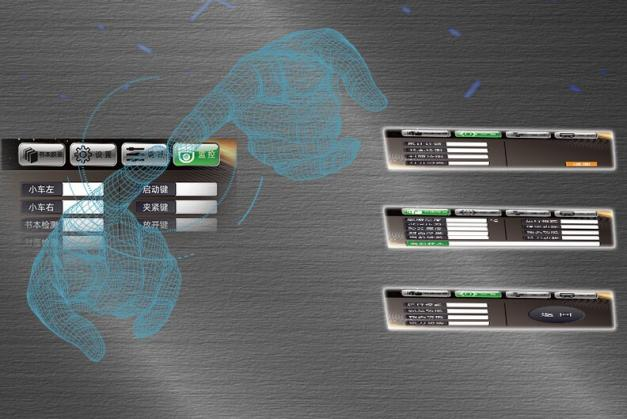

 ARM chips,7-inch color touch screen, powerful intelligent control, and has a variety of self-test functions |
| Item Model | H10L | H20L |
| Type | A4 Automatic Cover Feeder Creasing Glue Binder | A3 Automatic Cover Feeder Creasing Glue Binder |
| Max Binding Length |
Automatic 120-330mm Manual 425 mm |
Automatic 120-425 mm |
| Binding Thickness | 0.2-60mm | 0.2-60mm |
| Book Block Height | 135-297mm | 135-297mm |
| Max Cover Binding Length |
Automatic 500mm*330mm Manual 660*425mm |
Automatic660mm*330mm |
| Cover thickness | 120-300g | 120-300g |
| Cover Feeder Capacity | 98mm | 98mm |
|
The cover indentation center positioning function |
automatically adjusted | automatically adjusted |
| Cover indentation | Four indentation lines | Four indentation lines |
| Cover side gauge | CNC adjustment | CNC adjustment |
| Cover side shot function | √(pneumatic) | √(pneumatic) |
| Milling Cutter | 20 Teeth large Disc Milling Cutter+2 Small milling cutters | 20 Teeth large Disc Milling Cutter+2 Small milling cutters |
| Glue speed | 400-500books/hour | 400-500books/hour |
| Heating Time | 45min | 45min |
| Automatic Measurement Of Book Thickness | √ | √ |
| Gluing method | Single Rubber Wheel + Side Rubber +Rubber Roller | Single Rubber Wheel + Side Rubber +Rubber Roller |
| Pre Sol Tank structure | √ | √ |
| Automatic finishing glue | √ | √ |
| Smoke Exhaust Function | √ | √ |
| Height adjustment of Clamping Surface | Intelligent Adjustment | Intelligent Adjustment |
| Side glue + milling cutter with pre-opening function | √ | √ |
| Cover Secondary automatic positioning | √ | √ |
| Book Collection | × | × |
| Display | 7" Touch Screen | 7" Touch Screen |
| Power |
220V±10%， |
220V±10% |
|
50Hz(60Hz), |
50Hz(60Hz), |
|
| 2600W | 4000W | |
| Machine Size(mm) | 1985*710*1260 | 2228x820x1260 |
| N.W:(Kg) | About 300KGS/ 661.38lb | About 320KGS/705.48 lb |
