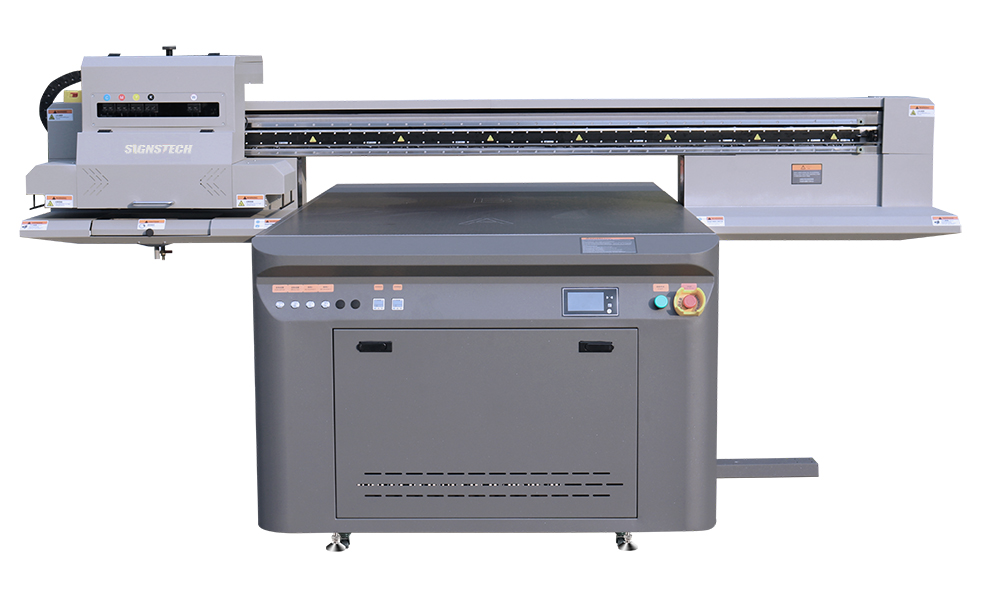

120cmx160cm UV Flatbed Printer
Model: MT-1216-R6
Price:
- Features
- Parameters
- Video
- Download
Features:
Applications:
 Primary quenching frame and double quenching beam,All steel frame processing by five-axis gantry milling machine |
 High precision made cartridge with least printheads cabrication ,can be installed 3 or more printheads,Qty of those is flexiable |
Hard aluminum suction platform,4-independent area absorbing design, staff gauge in axis X and axis Y, no deformation after long-term use
|
 Double Japan THK muted linear rail in axis X, double grinding grade precision lead screw from Taiwan, high precision on repeat positioning |
 Double 1500W vacuum motors ensure strong power to fix materials. |
Taiwan Detal servo motors(X axis dual 400w and Y axis 750w), ensure the stable operation of the machine； |
 Metallic gratings and linear motor system, offering higher acceleration of the carriage |
 Secondly ink bottle heating system to stabilize the temperature of ink, ensure ink fluency |
|
|
 Automatic height detecting system to print different thickness materials |
 Carriage with anti-collision device to protect the printheads effectively |
|
IApplications:
| Model | TM-1216 -R6 |
| Printing area | 1200mm×1600mm |
| Curing system | UV LED lamp curing |
| Printhead | RICOH GH2220/G5/G6/G51 |
| Print accuracy | 600DPI,900DPI,1200DPI |
| Ink mode | CMYK/LC/LM/W/V |
| Media thickness | 0-150mm/customized according to media height |
| UV ink | UV-curable inks/multiple ink applications |
|
Print speed (3x Ricoh GH2220 heads) |
Model of linear motor： 4pass：7m2/h 6pass：4m2/h 8pass：2m2/h |
| Printing medias | fabric, plastic, acrylic, wooden sheets, glass, film,tiles,metal sheets, PVC sheets, cardboard, leather etc. |
| RlP software | Photoprint, Colorgate |
| Operating system | Windows7/8/10/11 64bit RAM≥8G |
| File formats | TIFF,JPEG,EPS,PDF,PDS,CDR,AI.CAD |
| Cartridge capacity | 1.5 liter capacity, automatic ink shortage alarm |
| Working environment | Temperature: 18 “C ~ 26 °C ,Humidity: 40%~70% |
| Safety certificate | CE SGS MSDS |
| Power supply | 5kw; AC220v(+10%>15A;50~60Hz |
| Dimensions | 2900mmx2400mmx1450mm |
| Total weight | 700kg |
