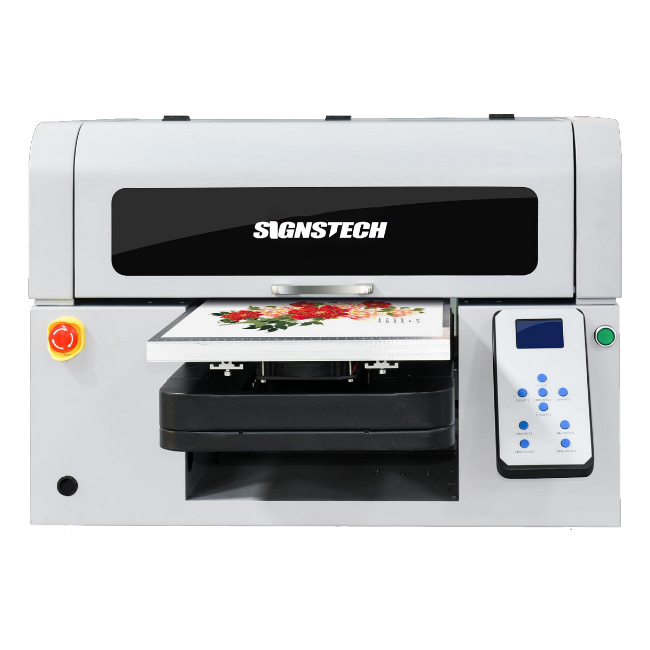

3050UL UV Flatbed Printer
Model: 3050UL
Price:
- Features
- Parameters
- Video
- Download
Wide range of application media, such as acrylic, PVC board, glass, aluminum - plastic board, wood board, gusset
board, suspended ceiling, organic board, ceramics, corrugated board, foam board, metal board, plastic, fabric,
wallpaper, paper box, mobile phone case, silk Excellent quality printing can be achieved on silk and other media.
Multilayer Imaging Mode1. Multi-layer imaging: full color, color white, white color, color white varnish.
2.The multi - layer imaging function can quickly present relief and 3 D image effects on the printing material, making the concave and convex feel within easy reach.
| Full Color | color+ white ink | white ink+ color | Color+ white ink+ varnish |
 |
 |
 |
 |
Details:
 |
Silent linear rail |
 |
Air cooling system |
|
Selected high - quality
guide rail transmission
ensures more stable
printing of the trolley and
lower noise;
|
Air - cooled UV lamp, strong energy, high
power utilization, easy
maintenance;
|
||
 |
Ink configuration |
 |
Suction platform |
|
Four colors + white ink + varnish, can be formed at one
time, saving time for printing;Equipped with an ink shortage alarm, it can remind you to replenish ink in time to make
the printing process more at
ease.
|
High - hardness suction platform, full of wind, better fixedmaterial;The platform height can be adjusted from 0 - 7 3 mm to ensure that
different thicknesses
materials can beused,improving theapplication
|
||
 |
White ink stirring system |
 |
Z axis lead screw drive |
|
There is special motor installed
to stirring white ink during power on in case of precipitating and it is not easy to make print head clog
|
The Z-axis screw drive
ensures the stability of the
platform up and down.
|
Applications
| Model | 3050UL |
| Printer head | Epson XP600 x2 Optional Epson I3200 |
| Ink configuration | CMYK+White+V |
| Maximum print range | 300mmx500mm |
| Output accuracy | 360*720dpi/360*1080dpi/720*720dpi |
| Speed | 2.5m²/H Draft mode |
| 1.9m²/H Production mode | |
| 1.5m²/H High quality mode | |
| Ink type | UV Hard / Neutral /Soft |
| Ink supply | Positive pressure continuous ink supply |
| Cartridge capacity | 250ml/color |
| Ink solidification method | LED solidification |
| Rip software | Maintop 6.1 UV,Optional Photoprint 12 |
| File format | TIFF .JPEG.JPG.PNG,PSD,PDF,etc |
| Operating system | Windows 7/10 |
| Bearing material | Vacuum suction platform |
| Maximum print height | 120mm |
| Data interface | USB2.0 |
| Power supply | 220v,50HZ, 450W |
| Dimensions: | 795mm*920mm*570mm |
| Packing size: | 1120mm*1170mm*850mm |
| Net weight | 110KG |
| Gross weight | 160KG |
