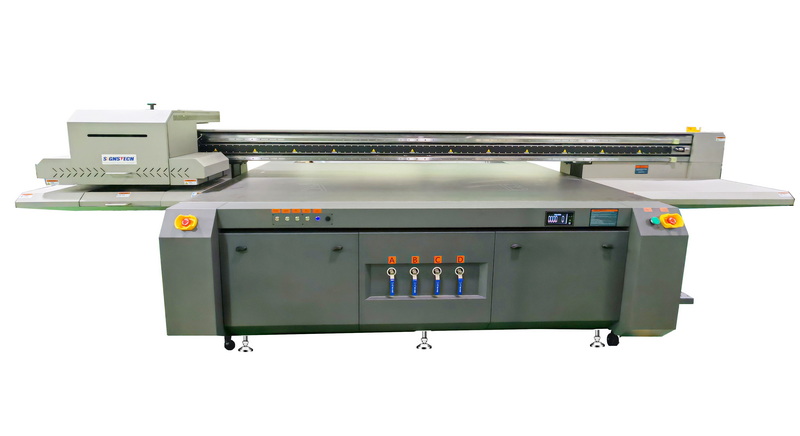

130cmx250cm UV Flatbed Printer
Model: MT-2513-R6
Price:
- Features
- Parameters
- Video
- Download
Features:
Applications:
 Primary quenching frame and double quenching beam,All steel frame processing by five-axis gantry milling machine |

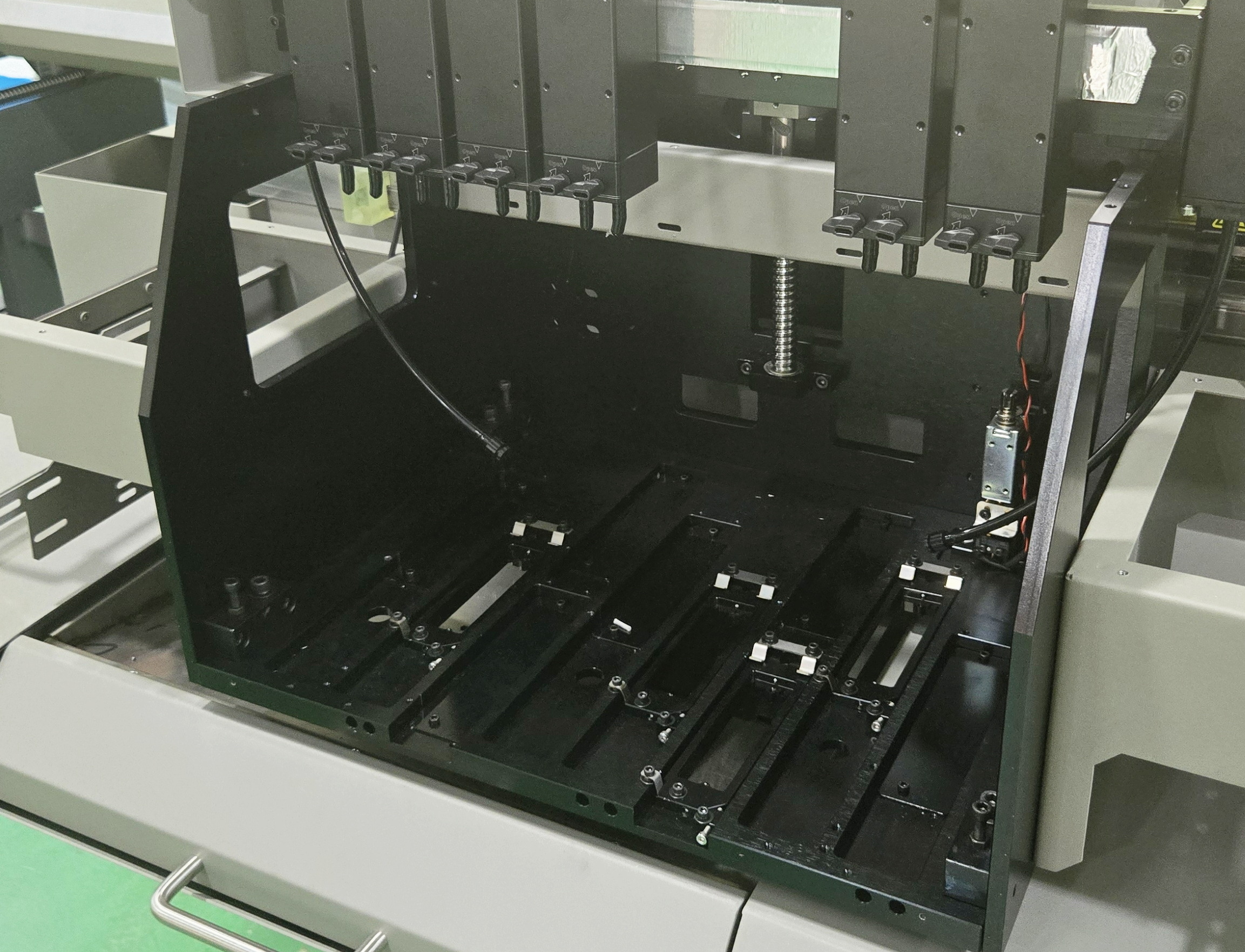

 High precision made cartridge with least printheads cabrication ,can be installed 3 or more printheads,Qty of those is flexiable |

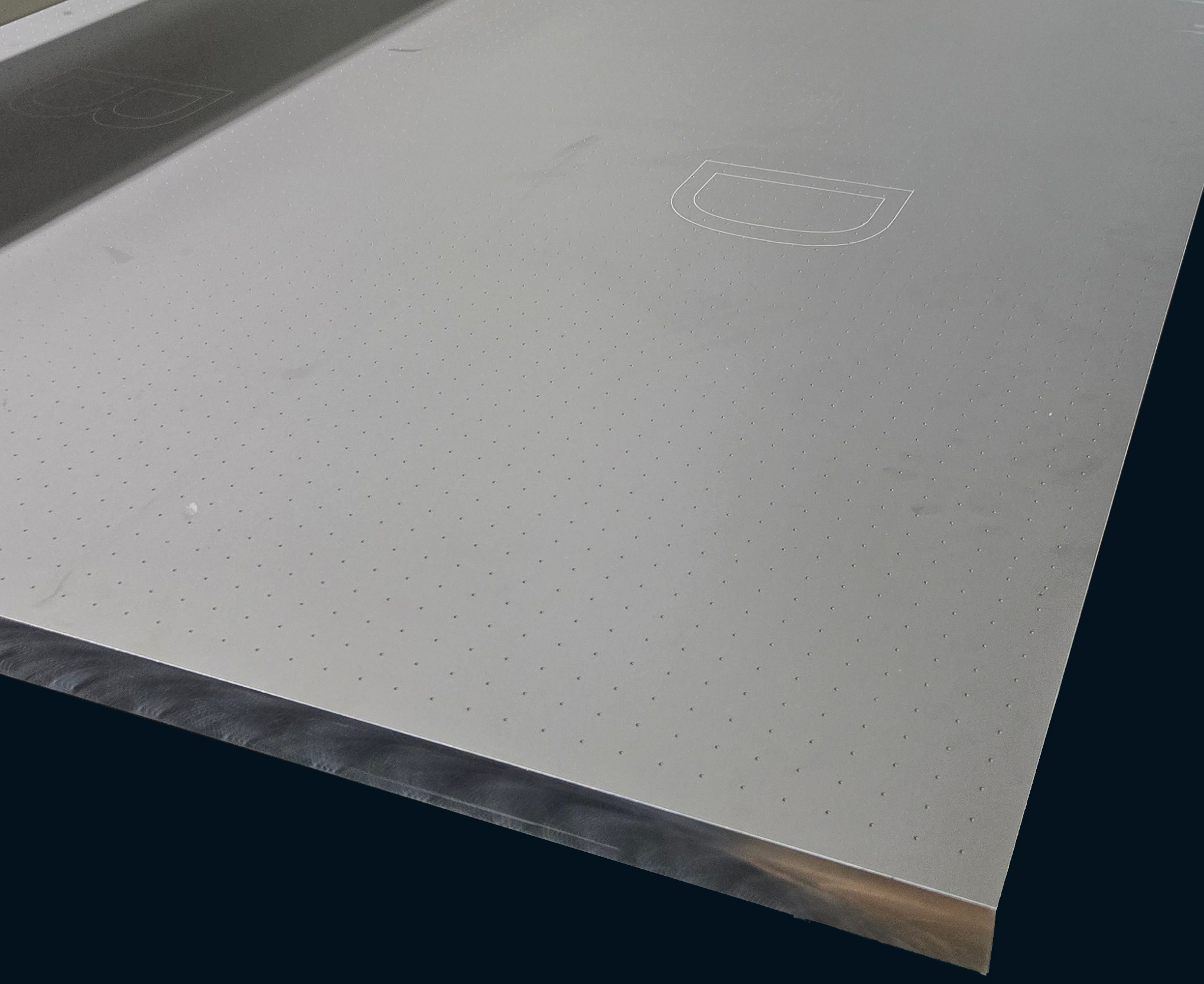

Hard aluminum suction platform,4-independent area absorbing design, staff gauge in axis X and axis Y, no deformation after long-term use
|

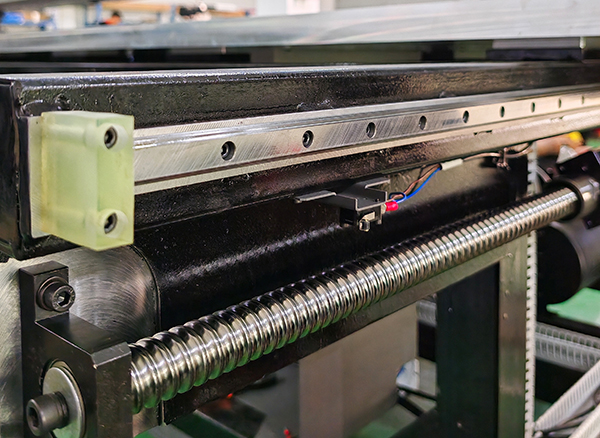

 Double Japan THK muted linear rail in axis X, double grinding grade precision lead screw from Taiwan, high precision on repeat positioning |

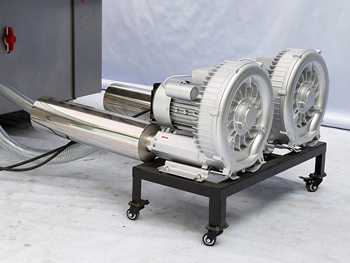

 Double 1500W vacuum motors ensure strong power to fix materials. |

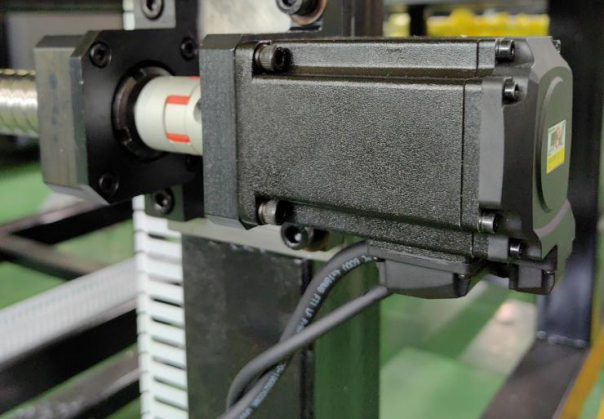

Taiwan Detal servo motors(X axis dual 400w and Y axis 750w), ensure the stable operation of the machine； |

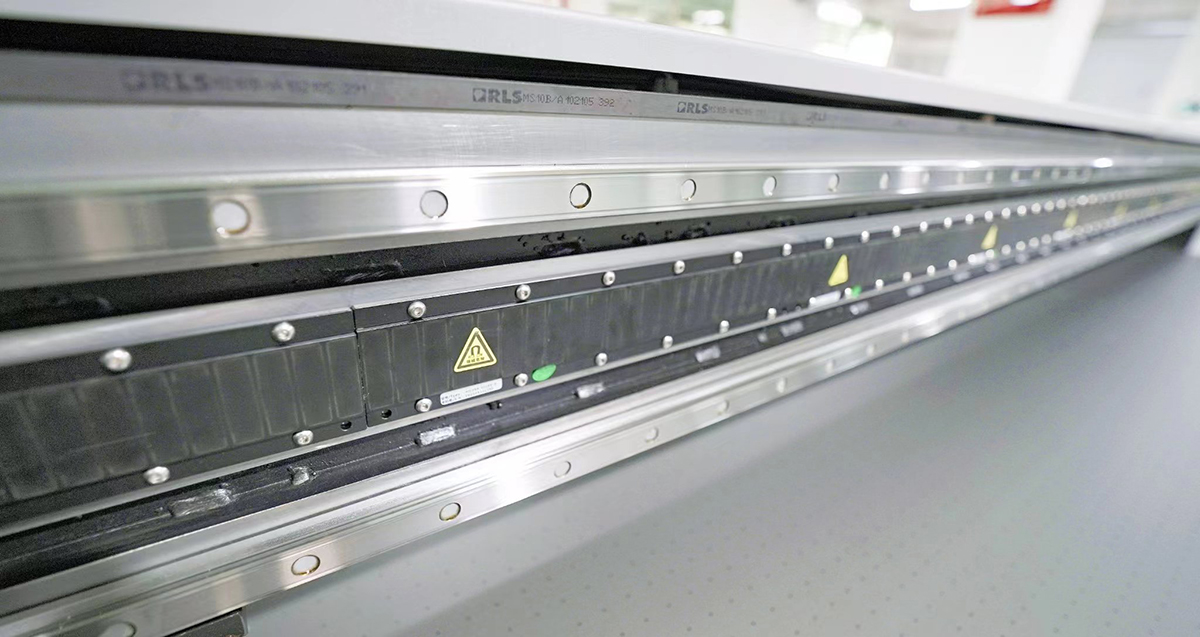

 Metallic gratings and linear motor system, offering higher acceleration of the carriage |

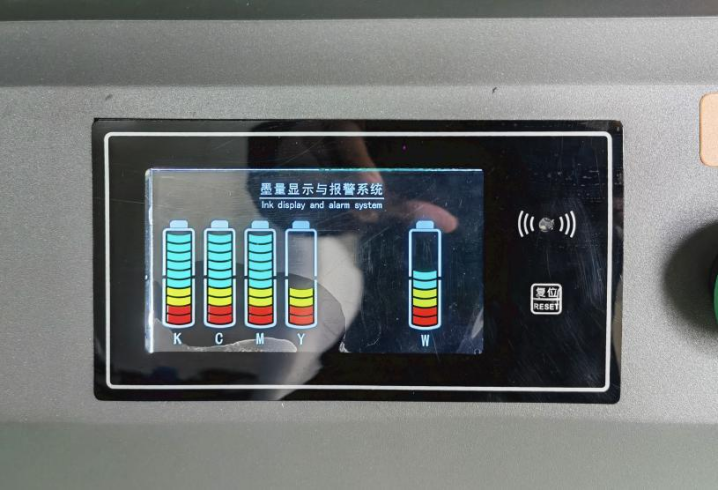

 Secondly ink bottle heating system to stabilize the temperature of ink, ensure ink fluency |
|
|

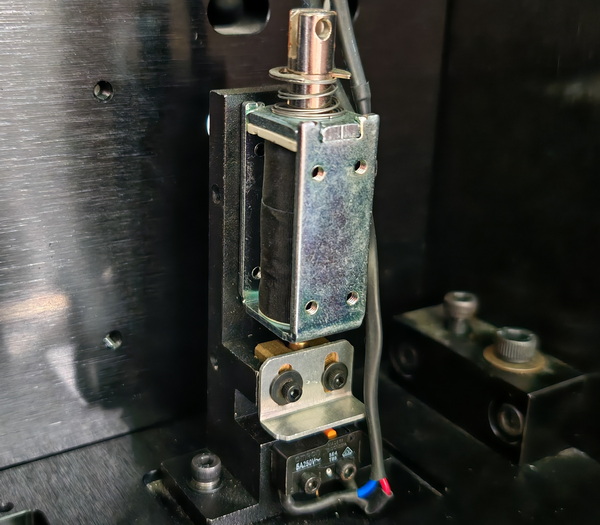

 Automatic height detecting system to print different thickness materials |

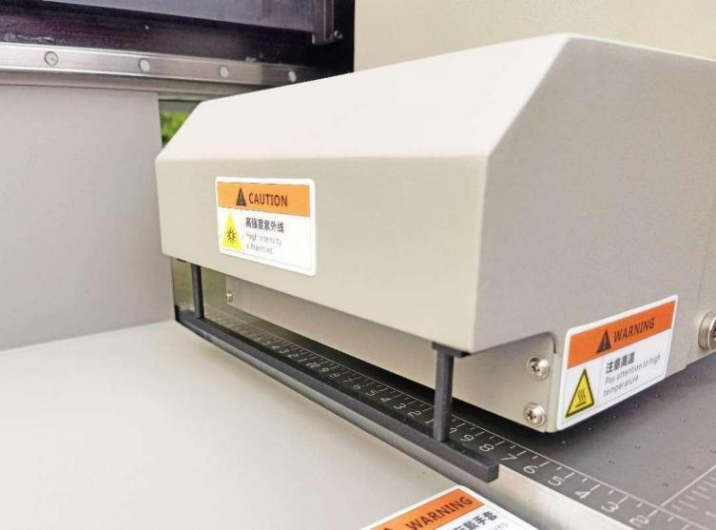

 Carriage with anti-collision device to protect the printheads effectively |
|
IApplications:
| Model | MT-2513-R6 |
| Printing area： | 2500×1300mm |
| Print head： | 2-8 Pieces Ricoh Gen5/Gen6 |
| RIP software | Photoprint or Colorgate |
| Ink color： | C M Y K LC LM W V |
| Print Thickness | 0-100mm（optional 200mm-500mm），automatic detection |
| Curing | Double UV-LED, Water chilling |
| Ink type： | Environmentally friendly UV ink（Not include VOC） |
|
Print speed： (3 pieces head) |
Model of belt transmission： Model of linear motor： 4pass：16m2/h 4pass：30m2/h 6pass：10m2/h 6pass：18m2/h 8pass：6m2/h 8pass：10m2/h |
| Power Supply： | 220VAC (±10%) ,50 / 60 Hz |
| Print resolution： | 600dpi,900dpi,1200 dpi |
| Image format | TIFF/JPEG/AI/PDF/ESP |
| Computer system | Win7/Win8/Win10 |
| Interface | USB 2.0/3.0 |
| Net weight： |
Model of belt transmission：1350kg Model of linear motor：1550kg |
| Working temperature： | 15-30℃ |
| Working humidity: | 20-75RH |
| Equipment dimensions： | 2100*4300*1300mm |
| Package dimensions | 2150*4400*1400mm |
