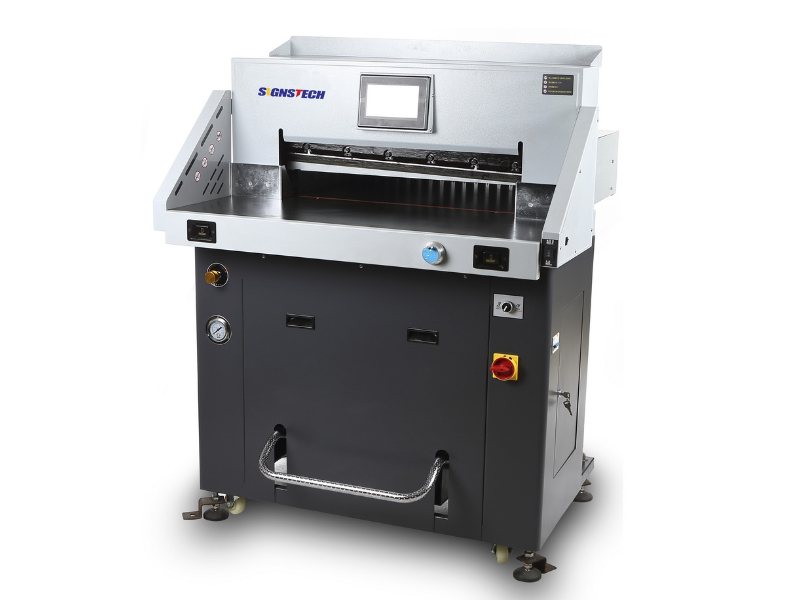

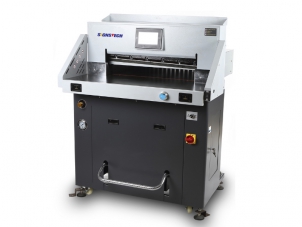

H720RT 720mm Hydraulic Paper Guillotine
Model: H720RT
Price:
- Features
- Parameters
- Video
- Download
 Foldable paper pushing platform patented design convenient to remove and pack. |
Inclined blade cutting patented technology, any thick paper can be cut smooth and
easily with inclined blade design. |
Top-suspended ball screw and nut
for pushing paper.
High speed of pushing and high
precision of cutting
|
 Leak-Proof design, solving the problem
of leaking in the cylinder.
|
Hard chromium plating table design
High durability and hard to distortion
|
PLC integrated module control
circuit design, stable and reliable
working
|
 Mechanical pedal, Pressure paper
proofread position, easy and convenient
|
Double Hydraulic with strong power
system design, imported servo motor
with strong power, imported hydraulic
components for ensuring quality, with
external knob for adjustment pressure
of paper clamp
|
Swing arm design of blade carrier
patented technology Solving the
problem that the roller slot easy to wear
and tear, adjustment gap of blade
carrier , ensuring cutting accuracy
|
Intelligent control, 7-inch touch screen,
The blade depth adjustable with
program, size error compensation, fault
self detection, programmable Max 100
group*96 cuts
|
Safety protection structure of Blade lock
Preventing the blade slip , and operation
safer
|
Echelette grating system ensures
operation safety in according to the
CE standard
|
Aeronautical alloy aluminum material
platform, durable and scratch resistant
|
Electronic hand wheel for backgauge
position with variable s
|
|
Model |
H720RT |
|
Max. cutting size |
720*720mm 28.35" *28.35 |
| Min. cutting size | 30mm/1.18” |
| Cutting thickness | 80mm /3.15” |
| Cutting accuracy | ±0.2mm |
| Clamp operation | Hydraulic+pedal |
| Pushing paper mode | Program-control |
| Cutting paper mode | Programmable,PLC control board |
| Display | 7” LCD Touch Screen |
| Table | Cast aluminum platform |
| Power |
220V(110V)±10% 50HZ(60HZ)3.1KW |
| Net weight | 500KG |
| Dimensions | 1550*1200*1460mm |
