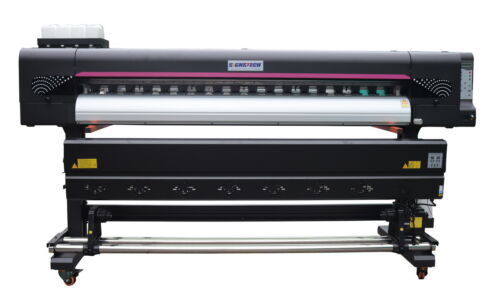

1.8m Eco Solvent Printer Epson I1600
Model: VI-1801E6
Price:
- Features
- Parameters
- Video
- Download
 Features: |
|
1.With EPSON I1600 print head, Max 2400dpi,upgraded and better than Epson xp600 2.Unique Variable ink dot printing technology 3.Printing with gradual change and feathering technology to remove printing lines effectively. 4.HIWIN linear rail with double sliders ensures smooth and stable carriage movement. 5.LeadShine servo motor for the carriage movement, higher accuracy, lower noise, 6.Automatic paper feeding, ink pumping, print head wiping and cleaning. 7.Auto bulk ink feeding system with 4 exterior ink tanks of 500ml each ensures high speed and fluent ink feeding. 8.Comes with one set of fast drying ink for FREE, fast drying , less smell, low cost. 9.Takes optical fiber instead of flat cable for inner communication, more faster speed and stable, 10.Front and back platform heating function with temperature controller ,can set the temperatures separately, 11.With front/back two side handle for lifting the pinch rollers conveniently. 12.With floater ink cartridges which can control the ink volume automatically while printing. |

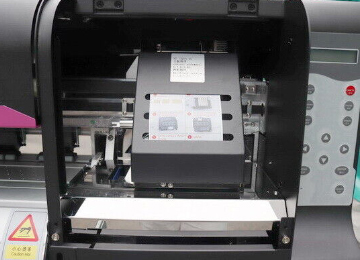

 Single Epson I1600 print head on fine-made carriage |

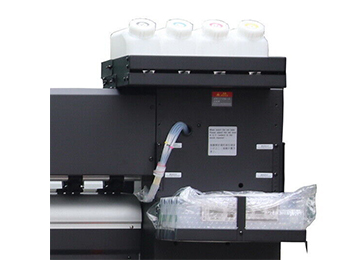

 Bulk ink system with 4 exterior big volume tanks |

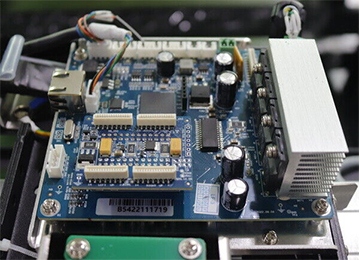

 Upgraded carriage board with printhead install protection |

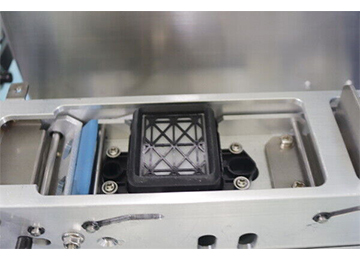

 Printhead maintenance station,auto printhead cleaning and wiping |

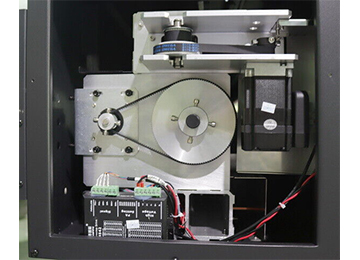

 LeadShine servo motor for carriage movement |

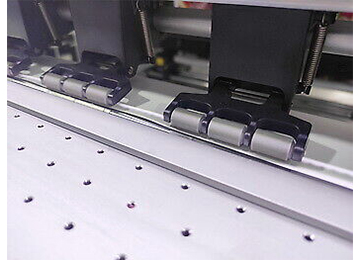

 Enhanced friction roller system,All alumnium & big power absorption platform |

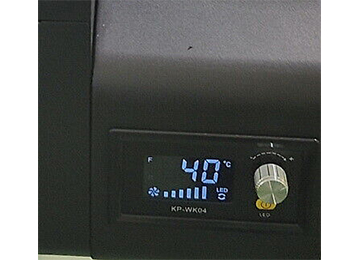

 Temperature controller for the platform heaters |

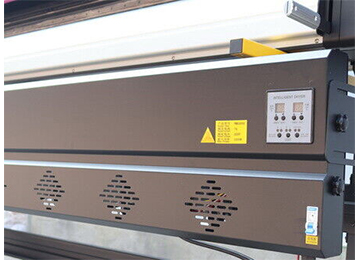

 Intelligent drying system with infrared heating tube |
 Hiwin linear rail with dual sliders |

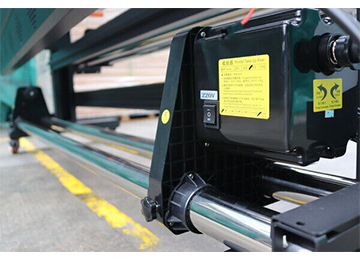

 Auto take up system |
|

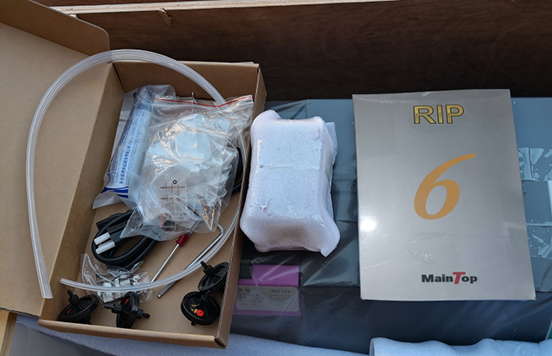

What’s in package
|
|||||
|
Printheadx1,|Media feeding systemx1 set,|steel pipes for feed and take up system: 4pcs,|stand x 1set|dring fan systemx1 |Software Maintopx1 |Eco solvent ink x4 liters|cleaning solution: 1 liter| Power leadx1|filter x4|Damperx7|USB cablex1 | spannerx1|syringex1| screwdriverx1 |ink tube x1 reel| waste ink bottlex1|bulk ink feeding systemx1 |
| Parameters: | ||
| Model | VI-1801E6 | |
| Max Print Width | 1830mm,MAX Feeding 1900mm | |
| Print head | Epson I1600 | |
| Number of Print head | 1 | |
| Max Resolution | 2400dpi | |
| Color Mode | C M Y K | |
| Speed | 4Pass 720x1200dpi | 20㎡/h |
| 6Pass 720x1800dpi | 15㎡/h | |
| 8Pass 720x2400dpi | 10㎡/h | |
| Ink Type | Eco solvent ink/water based ink/sublimation ink | |
| Heating system | Pre and after-heating, with temperature controller | |
| Drying Fan system | With infrared heating tubes | |
| Auto take up System | With | |
| Interface | Ethernet | |
| Language | English | |
| Software | Maintop 6 with dongle, optional Photoprint | |
| Printer driver | Win7 32/64bit, Win8 ,Win10 | |
| Print head Cleaning | Automatic, anti-jam and keep nozzles moisten | |
| Driving System | Leadshine servo and stepper | |
| Print head height | 1.8mm-3mm | |
| Power | AC220v,50HZ/60HZ | |
| Power consumption | Idle 32w Max 1500w | |
| Print Material | Vinyl, flex banner, PVC, One Way Vision ,canvas, leather, wall paper,Etc | |
| Media process | Roll to Roll | |
| Machine Dimensions | 2621mm Lx900mm Wx1500mm H 170kg | |
