2.Unique Variable ink dot printing technology,With gradual change and feathering technology to remove printing lines.
3.Take the famous Honson® control system,Guarantee of reliability.
4.HIWIN® linear rail with double sliders ensures smooth and stable carriage movement.
5.LeadShine® servo motor for the carriage movement, higher accuracy, lower noise,
6.Automatic paper feeding, ink pumping, print head wiping and cleaning.
7.Auto bulk ink feeding system with 4 exterior ink tanks of 1500ml each ensures high speed and fluent ink feeding.
9.Intelligent and patented print head maintenance device with auto clean and moisten
10.Comes with one set of fast drying ink for FREE, drying while printing, less smell, low cost.
11.Takes optical fiber instead of flat cable for inner communication, more faster speed and stable.
12.Front and back platform heating function with temperature controller ,can set the temperatures separately,
13.With floater ink cartridges which can control the ink volume automatically while printing.
Epson I3200 print heads in fine-made carriage
|
 LeadShine servo motor driving for carriage movement |
Honson control system,the leading and professional system in China
|

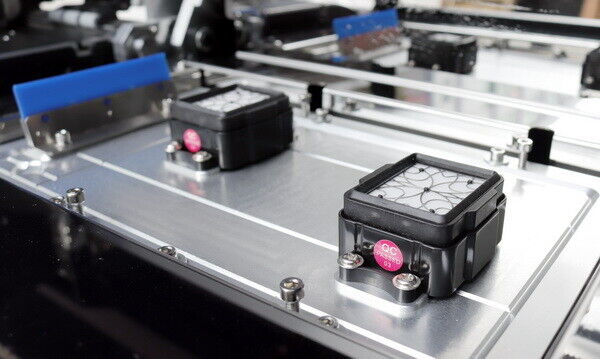

Staggered printheads layout,more faster printing,auto cleaning & wiping
|
Intelligent drying system with infrared heating tube
|

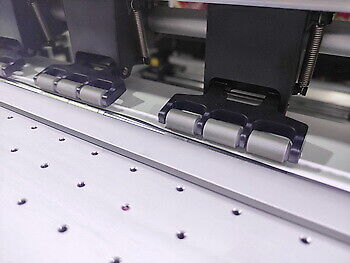

Wide friction rollers with tight &smooth feeding and absorption platform
|

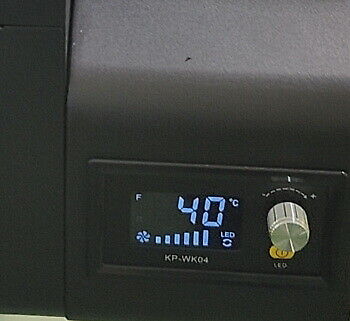

Integrated temperature controller for the platform middle and past heating
|
Bulk ink supply system with 4x 1.5L ink tanks and 8x ink cartriges of 220ml.
|

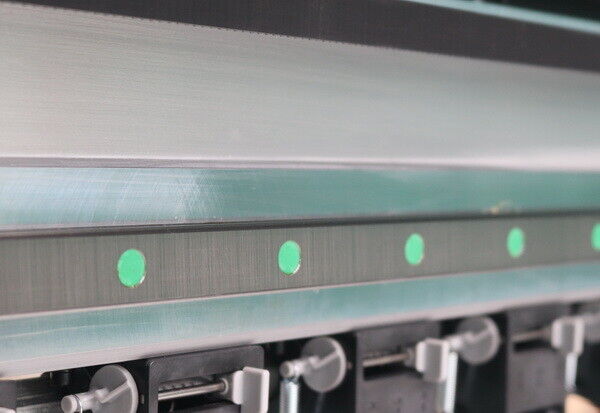

Hiwin linear rail with dual sliders,durable and slient
|
Auto take up system dual motors with damper
|
|
Model |
VI-1802E |
||
|
Max Print Width |
1830mm 72” |
||
|
Print head |
Epson I3200 |
||
|
Number of Print head |
2 |
||
|
Max Resolution |
2400dpi |
||
|
Color Mode |
C M Y K |
||
|
Speed |
3 Pass(Produce mode) |
42㎡/h |
|
|
4 Pass(Quality mode) |
35㎡/h |
||
|
6 Pass(High resolution) |
28㎡/h |
||
|
Ink Type |
Eco solvent ink/water based ink/sublimation ink |
||
|
Heating system |
Middle and past-heating, with temperature controller |
||
|
Drying Fan system |
With infrared heating tubes |
||
|
Auto take up System |
With |
||
|
Interface |
Ethernet |
||
|
Language |
English |
||
|
Software |
Maintop 6.1 with dongle, Optional Photoprint 12 |
||
|
Printer driver |
Win7 32/64bit, Win8 ,Win10 |
||
|
Print head Cleaning |
Automatic, anti-jam and keep nozzles moisten |
||
|
Driving System |
Leadshine servo and stepper |
||
|
Print head height |
1.8mm-3mm |
||
|
Power |
AC220v,50HZ/110v,60HZ |
||
|
Power consumption |
Machine 800w,External drying: 2400w |
||
|
Print Material |
Vinyl, flex banner, PVC, One Way Vision ,canvas, leather, wall paper,Photo paper,film,PP,Etc |
||
|
Media process |
Roll to Roll |
||
|
Machine Dimensions |
2685mm*850mm*1580mm 225kg |
||
