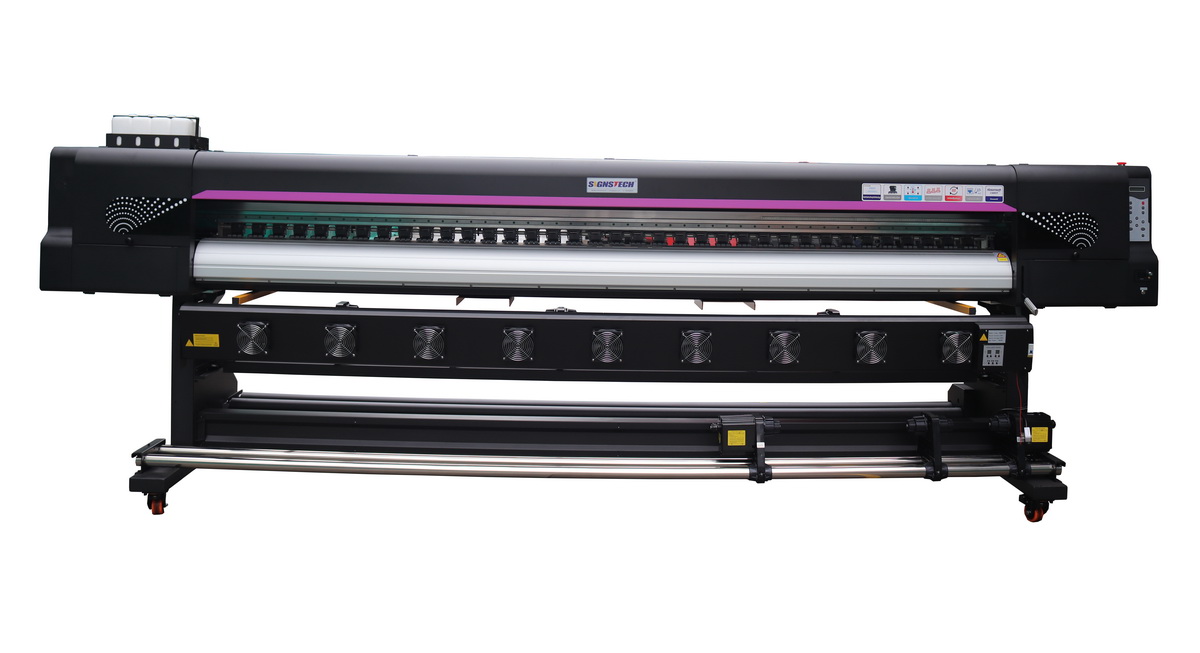

Vinyl Express 3.2m Eco Solvent Printer
Model: VX,VI-3202E
Price:
- Features
- Parameters
- Video
- Download
| Features: |
|
1. With double EPSON I3200 E1 print heads, Max 2400dpi, Leading Honson control system. 2. Epson Variable ink dot printing technology, CMYK 4 colors ink as default. 3. Printing with gradual change and feathering technology to remove printing lines effectively. 4. HIWIN linear rail with double sliders ensures smooth and stable carriage movement. 5. LeadShine servo motor for the carriage movement, higher accuracy, lower noise, 6. Automatic multi-functional paper feeding system, Auto ink pumping, print head wiping and cleaning. 7. Auto bulk ink feeding system with 4 exterior ink tanks of 500ml each ensures high speed and fluent ink feeding. 8. Intelligent and patented print head maintenance device with auto clean and moisten 9. With optical fiber instead of flat cable for inner communication, more faster speed and stable, 10. Front and back platform heating function with temperature controller ,can set the temperatures separately, 11. With front/back two side handle for lifting the pinch rollers conveniently. 12. With floater ink cartridges which can control the ink volume automatically while printing. 13. With heavy multi-functional media feeding system and dual motors take up system. Details: |
 Dual Epson I3200 print heads on fine-made carriage |

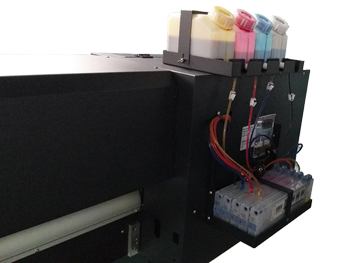

 Bulk ink system with 4 exterior big volume tank |
 Honson control system(boards) with printheads protection. |
 Patented Integrated print head maintenance device |
 LeadShine servo motor for carriage movement |
Durable friction roller system with tight &smooth
feeding and big power air suction platform |
 Intergrated temperature controller for the platform heaters |
 Intelligent drying system with infrared heating tube |
 Hiwin linear rail with dual sliders |
 Multi-functional media feeding system for different types materials |
| Model | VI-3202E | 3204 |
| Max Print Width | 3200mm, Max Feeding 3300mm |
| Print head | Epson I3200 E1 Optional Epson Xp600 |
| Number of Print head | 2 | Optional 3/4 or more heads |
| Max Resolution | 2400dpi |
| Color Mode | C M Y K |
| Speed | 3Pass(Produce mode) 50㎡/h |
| 4 Pass(Quality mode) 40㎡/h | |
| 6 Pass(High resolution) 32㎡/h | |
| Ink Type | Eco solvent ink/water based ink/sublimation ink |
| Heating system | Pre and Post-heating, with temperature controller |
| Drying Fan system | With infrared heating tubes |
| Auto take up System | With |
| Interface | USB2.0 |
| RIP Software | Maintop 6.1 with dongle, optional Photoprint 12 |
| Printer driver | Win7 32/64bit, Win8 ,Win10 |
| Print head Cleaning | Automatic, anti-jam and keep nozzles moisten |
| Driving System | Leadshine servo and stepper |
| Print head height | 1.8mm-3mm |
| Power Supply | AC 110v-220v,50HZ/60HZ |
| Power consumption | Idle 32w Max 1500w |
| Print Material | Vinyl, flex banner, PVC, One Way Vision ,canvas, leather, Paper, wall paper,film,etc |
| Machine Dimensions | L4550mmxW1000mmxH1600mm |
