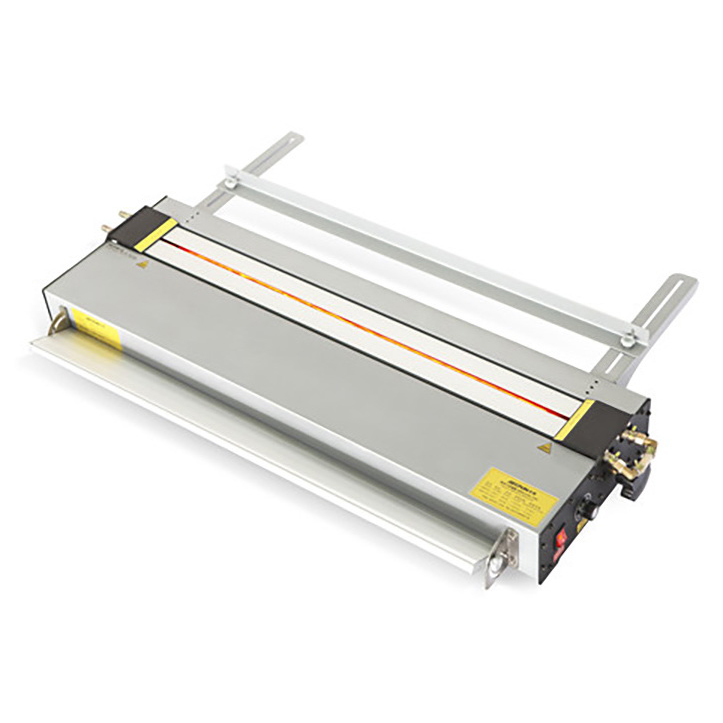

The shell made of sheet metal and the heating zone made of aluminum profile which is helpful for thermal conductance while working. |

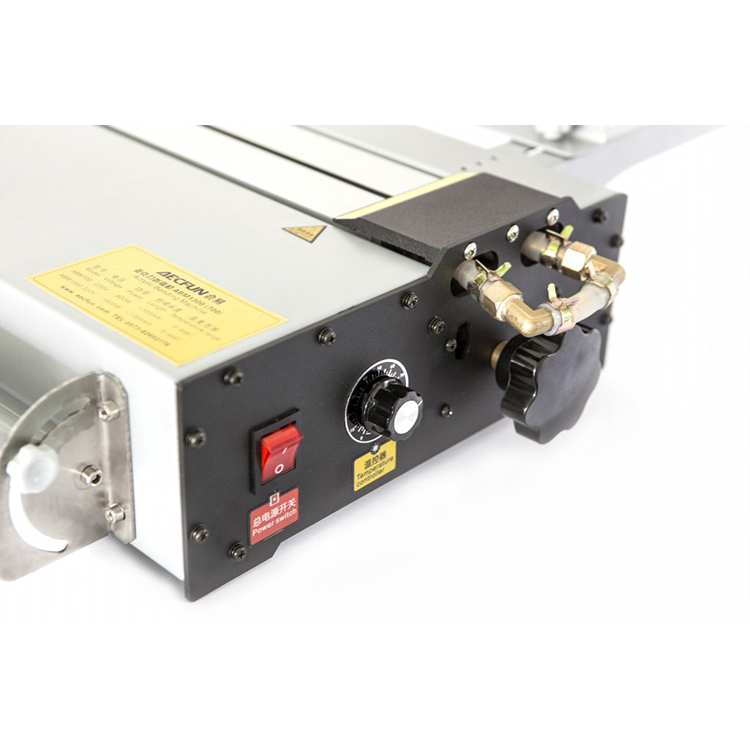

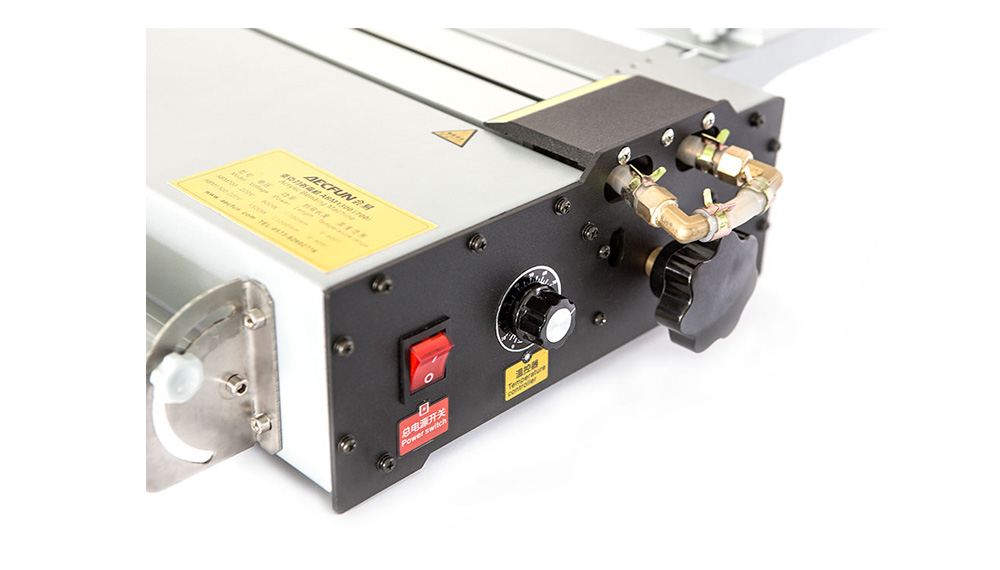

Temperature adjustable as different thickness of material,Max heating up to 600℃. |
|
|
 |
|

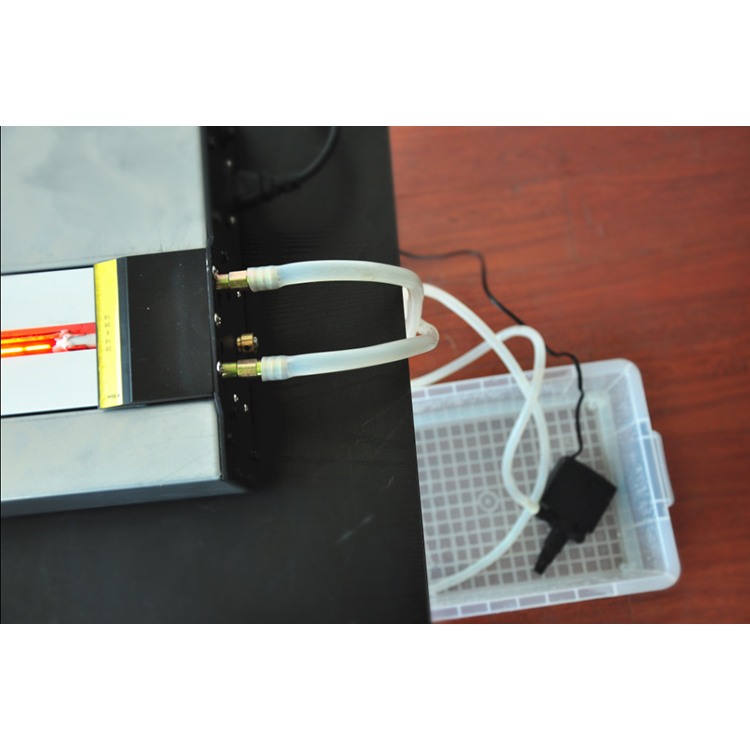

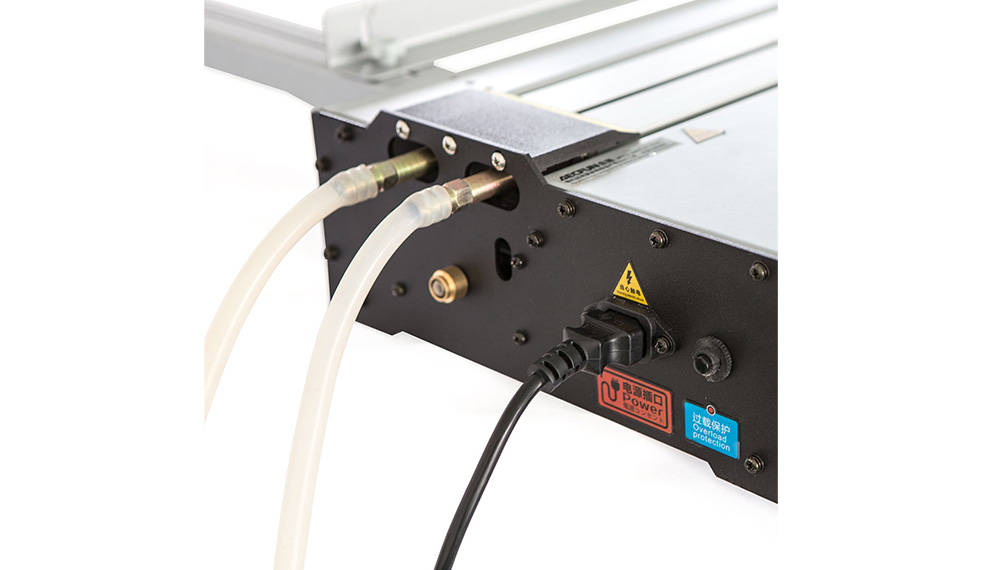

Equipped with Circulating water cooling system which ensures fast cooling |
The heating zone gap is adjustable from 0mm to Max 20mm. |
|
|
 |
|

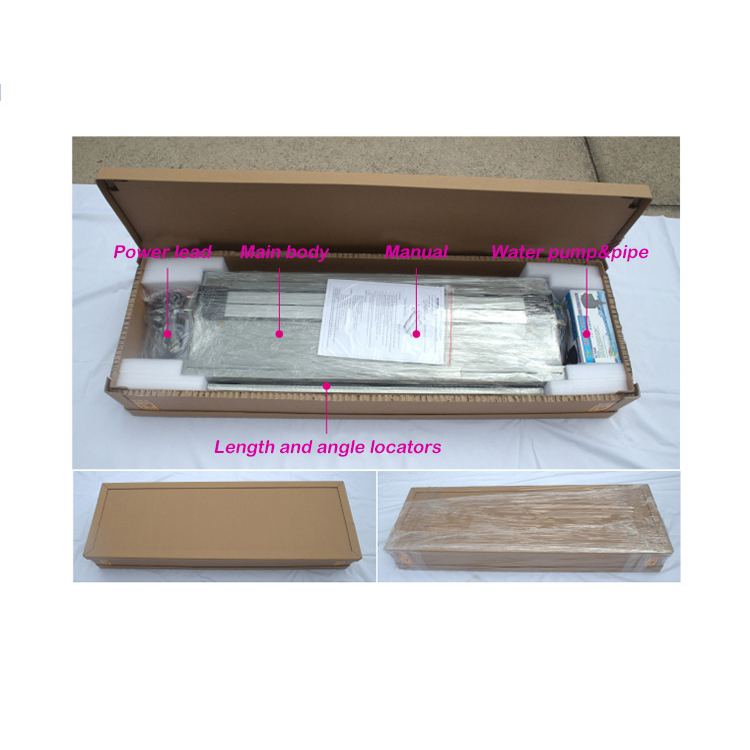

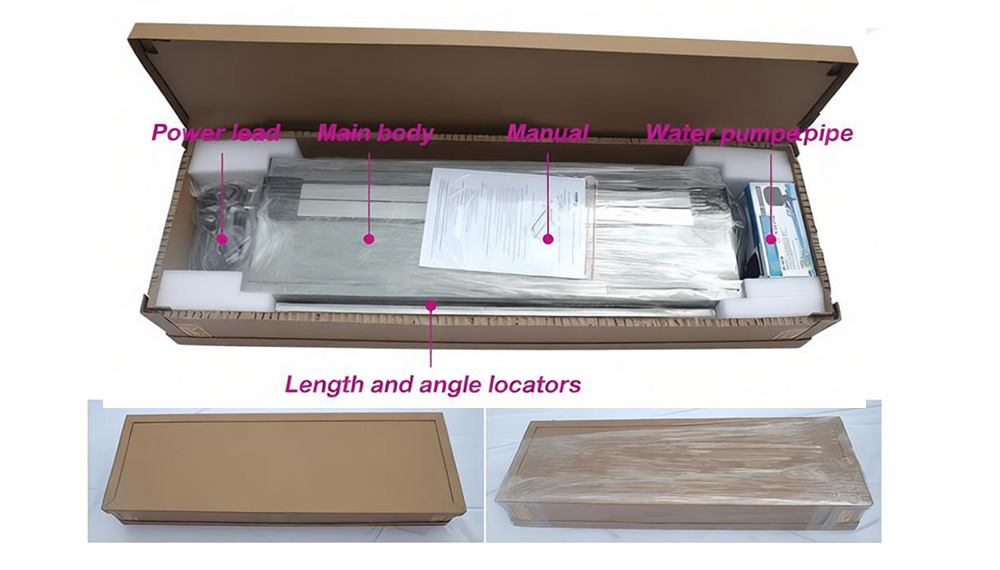

Standardization configuration including water pump and water tube and heating tube |
With angle locator,it can be adjusted from 0-160° angle |
|
|
 |
|
With length locator for lenght of 40mm-330mm process,suitable for mass product. |
With length locator for lenght of 40mm-330mm process,suitable for mass product. |
|
Model |
ABM700 |
ABM1300 |
|
Working Principle |
Thermal Forming |
Thermal Forming |
|
Applicable Length |
≦650mm |
≦1250mm |
|
Applicable Thickness |
1-10mm |
1-10mm |
|
Input Voltage |
110V/220V |
110V/220V |
|
Working Voltage |
110V/220V |
110V/220V |
|
Working Power |
1000W |
1500W |
|
Temperature Range |
Available 0-600℃ |
Available 0-600℃ |
|
Carton Size |
1250(W)x430(D)x185mm(H) |
1850(W)x430(D)x185mm(H) |
|
Net Weight |
17kg |
26kg |
|
Gross Weight |
23kg |
33kg |
