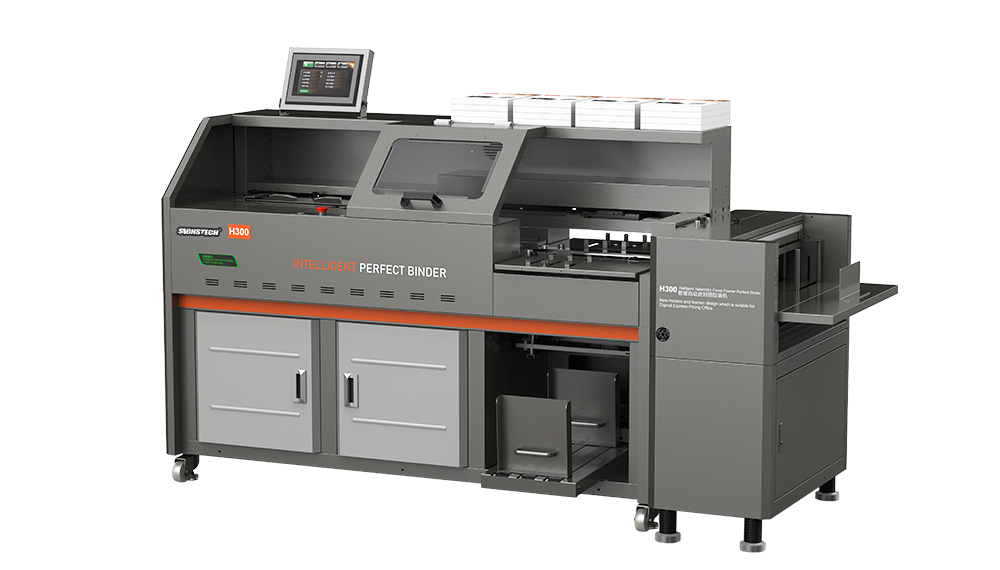

Top Auto Perfect Binder Book Binding Machine

Model:
H300
Remarks:
A3 working size with auto binding,cover feeding,creasing and book collecting,Variable frequency technology
Price:
$ 11,800.00
BROCHURE INQUIRY NOW
Captcha

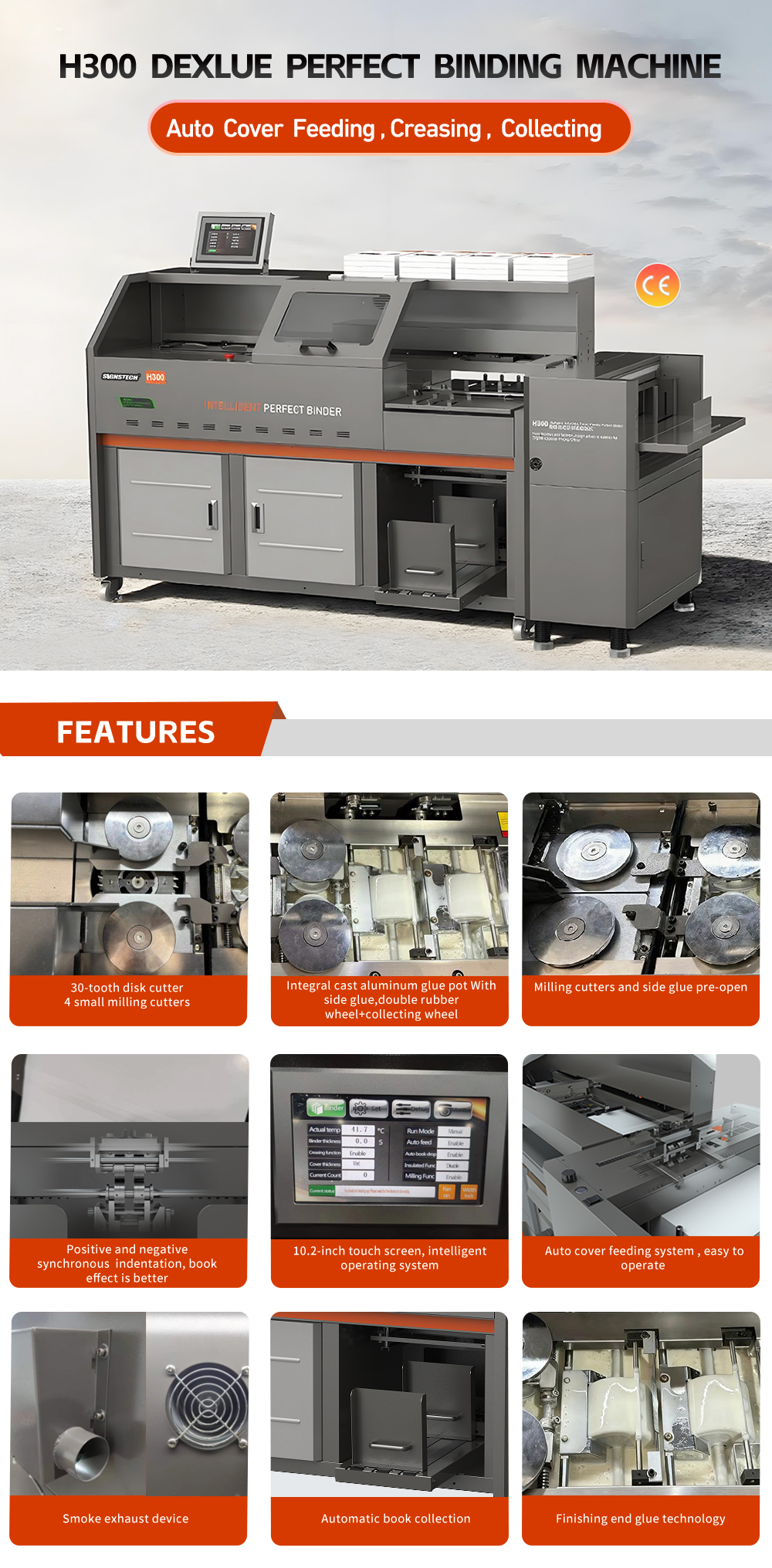

Features

Parameters

Model H300
Binding length Automatic 120-320mm Manual 120-425mm
Maximum cover size length Automatic 660mm*330mm
Binding thickness 0.2-60mm
Book block height 135-297mm
Cover thickness 120-300gsm
Cover stack height Max.98mm
Cover feeding method Feida feeding
Cover creasing Dual-sidecreasing(min. 2mm),2 convex spine lines,2 concave flipping lines
The cover creasing center positioning Auto adjusted
Cover side shot function √(pneumatic)
Glue speed 400-500books/hour
The sol time 45min
Gluing method rubber wheel + side glue + roller
Automatic finishing glue
Side glue + milling cutter with pre-opening
Automatic book thickness measurement
Automatic retraction glue
Automatic book collection
Milling cutter 30 teethdiscmilling cutter plus 4x small milling cutter
Trolley track linear rail
Smoke exhaust function
Display 10.1 inch touch screen
Cover side gauge CNC adjustment
Roller height adjustment Manual adjustment
Clamping surface height adjustment Intelligent adjustment
Machine weight 550kg
Machine size 2203*968*1245mm
